When parts of a vibrating system slide on a dry surface, the damping is:

Question

Question

When parts of a vibrating system slide on a dry surface, the damping is:

Question 1

A vibratory system in a vehicle is to be designed with the following parameters: k= 177 N/m, C =2 N-s/m, m=23 kg. Calculate the natural frequency of damped vibration.

Quèstion 2

The damping ratio for a critical damped system is:

1.0
0.5
0
1.05

Question 3

A vibratory system is defined by the following parameters:

m=2 kg, k = 100N/m, C =4 N-s/m.

Determine the damping factor (ε)

Question 5

When parts of a vibrating system slide on a dry surface, the damping is:

Viscous
Coulomb
Hyntoretio
None of above

engineering Mechanical-Engineering

Add a comment Improve this question Transcribed image text

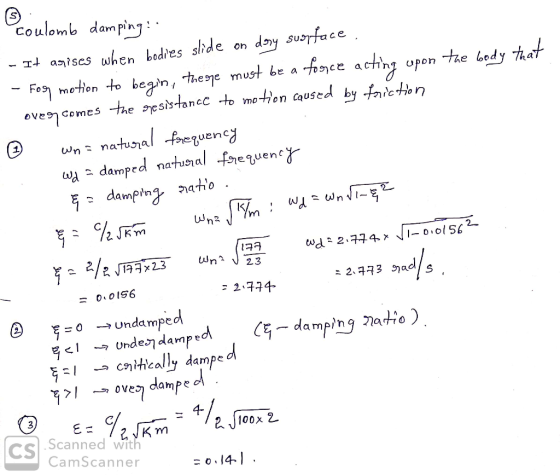

Answer 1

✔ Recommended Answer

Answer #1

Add a comment

Answer 2
