Suppose you used a hot pot to convert a 150 g piece of ice that was initially at -15°C into liquid water at 50°C.
Suppose you used a hot pot to convert a 150 g piece of ice that was initially at -15°C into liquid water at 50°C.

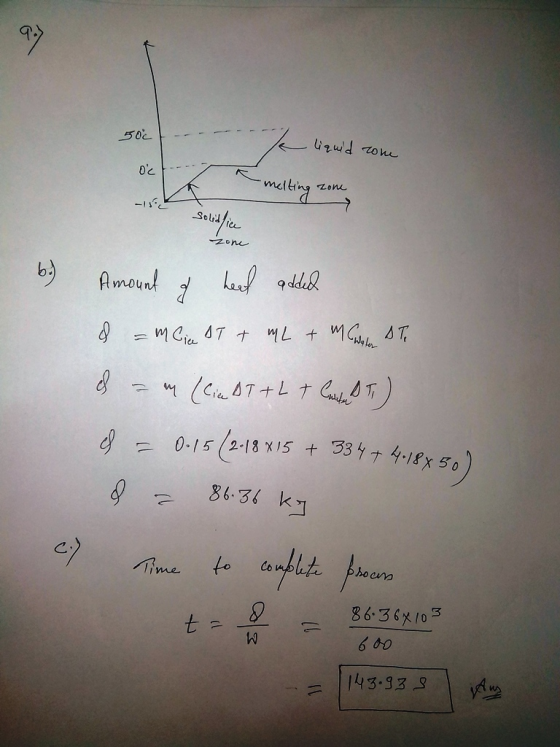

a) Represent this process in one complete energy-system diagram covering the entire interval.
b) How much heat is added to complete this entire process?
c) If your hot pot has a power rating of 600 watts, show how to find how long it will take to complete the process. (Make sure you are comfortable using standard units of energy, and that you understand the relation of power to energy. Hint: what are Watts?)
