A spherical shell of radius R = 3 m has its center at the origin and...

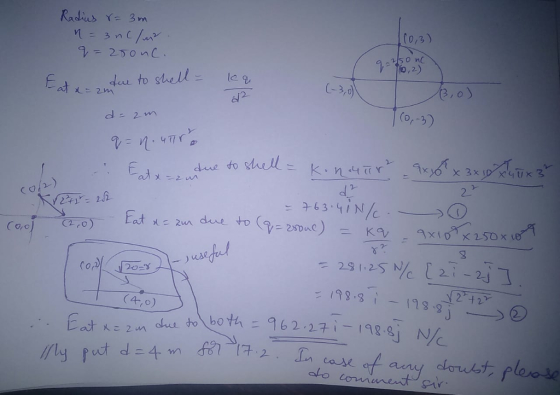

A spherical shell of radius R = 3 m has its center at the origin and carries a surface charge density of η = 3 nC/m^2. A point charge q = 250 nC is on the y-axis at y = 2 m.
17.1 Determine the electric field on the x-axis at x = 2 m. Leave your answer in component form.
17.2 Determine the electric field on the x-axis at x = 4 m. Leave your answer in component form
Homework Answers
Add Answer to:
A spherical shell of radius R = 3 m has its center at the origin
and...
3). A thin spherical shell is centered at the origin with radius 1.8 meter. The shell...
3). A thin spherical shell is centered at the origin with radius 1.8 meter. The shell has a surface charge density of -5 C/m². At the center of the spherical shell (at the origin) there is a +2 C point charge. Calculate the magnitude of the electric field at 1.2 meters from the center of the spherical shell.
A conducting spherical shell of inner radius R1 and outer radius R2 has a point charge +q fixed at its center
A conducting spherical shell of inner radius R1 and outer radius R2 has a point charge +q fixed at its center. The spherical shell has a net charge of +aq.Part (a) Enter an expression for the surface charge density on the inner surface of the spherical shell using the variables provided. Part (b) Enter an expression for the surface charge density on the outer surface of the spherical shell using the variables provided. Part (c) The electric field at the surface points...
An insulating spherical shell of inner radius a 0.100 m and outer radius b 0.200 m...
An insulating spherical shell of inner radius a 0.100 m and outer radius b 0.200 m has a non uniform charge density given by ρ(r)-α/r, where α +7.00 x 10-10 C/m4 (a) What is the electric field at a distance of 0.050 m from the center of the spherical shell? (b) What is the electric field at a distance of 0.150 m from the center of the spherical shell? (c) If an electron is orbiting the spherical shell at a...
A nonconducting thin spherical shell of radius 6.36 cm has a uniform surface charge density of...
A nonconducting thin spherical shell of radius 6.36 cm has a uniform surface charge density of 8.41 nC/m2. What is the total charge on the shell? What is the magnitude of the electric field at a distance of 4.99 cm from the center of the shell? What is the magnitude of the electric field at a distance of 7.89 cm from the center of the shell?
A nonconducting thin spherical shell of radius 6.36 cm has a uniform surface charge density of...
A nonconducting thin spherical shell of radius 6.36 cm has a uniform surface charge density of 5.15 nC/m2. What is the total charge on the shell? What is the magnitude of the electric field at a distance of 4.15 cm from the center of the shell? What is the magnitude of the electric field at a distance of 9.19 cm from the center of the shell?
A nonconducting thin spherical shell of radius 6.36 cm has a uniform surface charge density of...
A nonconducting thin spherical shell of radius 6.36 cm has a uniform surface charge density of 9.81 nC/m2. What is the total charge on the shell? What is the magnitude of the electric field at a distance of 4.79 cm from the center of the shell? What is the magnitude of the electric field at a distance of 8.83 cm from the center of the shell?
A thick insulating spherical shell has inner radius a and outer radius b. The shell carries...
A thick insulating spherical shell has inner radius a and outer radius b. The shell carries a uniform volume charge density ρ0. (a) Consider a spherical Gaussian surface of radius r concentric with the shell. How much charge is enclosed in the Gaussian surface for r < a, a < r < b, and r > b? (b) What does symmetry dictate about the magnitude and direction of the electric field? (c) Determine the electric field everywhere (i.e., what is...
The electric field everywhere on the surface of a thin, spherical shell of radius 0.745 m...
The electric field everywhere on the surface of a thin, spherical shell of radius 0.745 m is of magnitude 889 N/C and points radially toward the center of the sphere. (a) What is the net charge within the sphere's surface? nC (b) What is the distribution of the charge inside the spherical shell?
A point charge q1 = -8.2 uC is located at the center of a thick conducting shell of inner radius a = 2 cm and outer radius b = 4.3 cm, The conducting shell has a net charge of q2 = 2.3 μC
A point charge q1 = -8.2 uC is located at the center of a thick conducting shell of inner radius a = 2 cm and outer radius b = 4.3 cm, The conducting shell has a net charge of q2 = 2.3 μC. a.) What is Ex(P), the value of the x-component of the electric field at point P, located a distance 7.9 cm along the x-axis from q1? b.) What is Ey(P), the value of the y-component of the electric field...
10.4) Thick insulating shell A thick insulating spherical shell has inner radius a and outer radius...
10.4) Thick insulating shell A thick insulating spherical shell has inner radius a and outer radius b. The shell carries a uniform volume charge density po. [A cross-sectional view of the shell is shown to the right.] (a) Consider a spherical Gaussian surface of radius r concentric with the shell. How much charge is enclosed in the Gaussian surface for p <a, a <r <b, and r > b? (b) What does symmetry dictate about the magnitude and direction of...
3). A thin spherical shell is centered at the origin with radius 1.8 meter. The shell has a surface charge density of -5 C/m². At the center of the spherical shell (at the origin) there is a +2 C point charge. Calculate the magnitude of the electric field at 1.2 meters from the center of the spherical shell.
An insulating spherical shell of inner radius a 0.100 m and outer radius b 0.200 m has a non uniform charge density given by ρ(r)-α/r, where α +7.00 x 10-10 C/m4 (a) What is the electric field at a distance of 0.050 m from the center of the spherical shell? (b) What is the electric field at a distance of 0.150 m from the center of the spherical shell? (c) If an electron is orbiting the spherical shell at a...
10.4) Thick insulating shell A thick insulating spherical shell has inner radius a and outer radius b. The shell carries a uniform volume charge density po. [A cross-sectional view of the shell is shown to the right.] (a) Consider a spherical Gaussian surface of radius r concentric with the shell. How much charge is enclosed in the Gaussian surface for p <a, a <r <b, and r > b? (b) What does symmetry dictate about the magnitude and direction of...
