Two charges, q1 =-16 nC and q2 = 28.0 nC, are separated by a distance d = 2.50 cm as shown in the figure.

Question

Question

Determine the following.

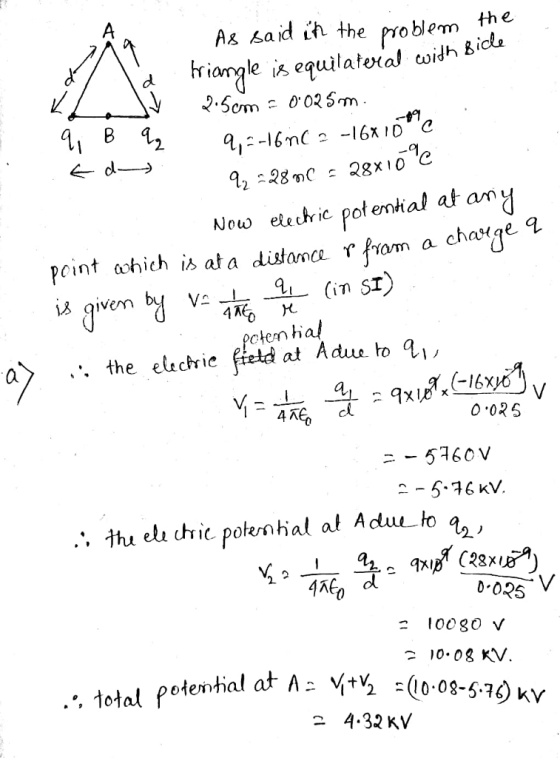

(a) the electric potential (in kV) at point A

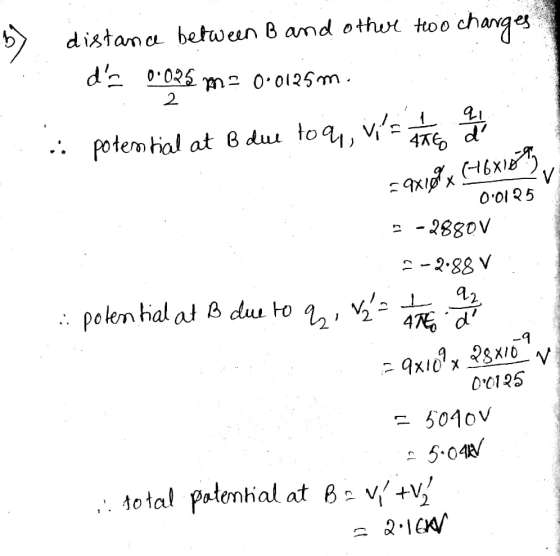

(b) the electric potential (in kV) at point B, which is halfway between the charges

science physics

Answer 1

Answer #1

Answer 2
