A flat coil of wire consisting of 20 turns, each with an area of 10 cm, is positioned perpendicularly to a uniform magnetic field that varies with time according to B=2.5 f

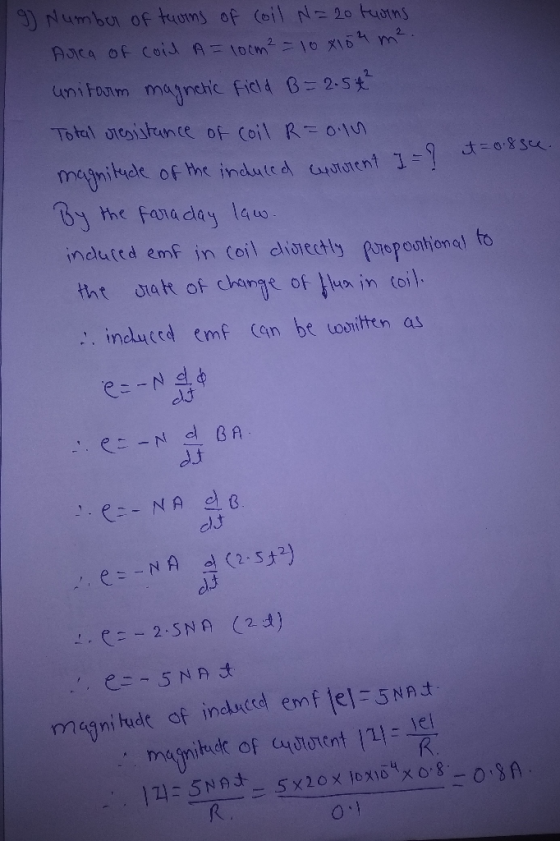

A flat coil of wire consisting of 20 turns, each with an area of 10 cm, is positioned perpendicularly to a uniform magnetic field that varies with time according to B=2.5 f. where t is measured in s and B in T. If the coil has a total resistance of 0.10 9, what is the magnitude of the induced current at 0.8s?
a. 0.20 A b. 0.60 A c. 0.50 A d. 0.80 A e. None of the above

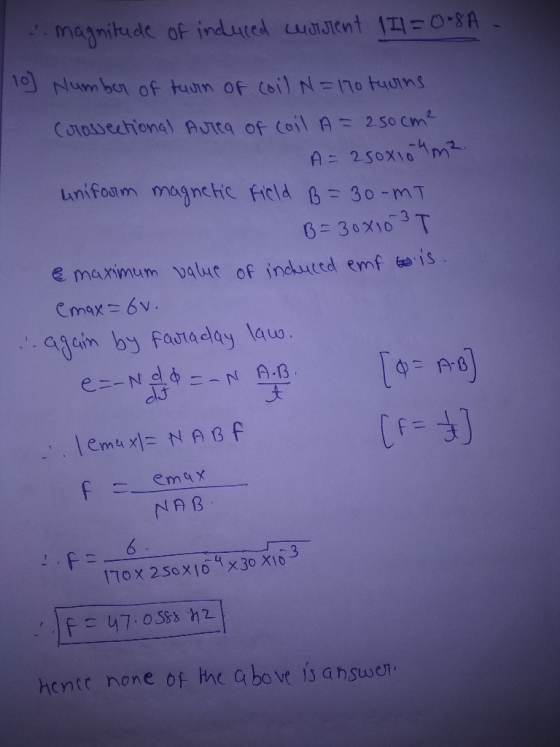

At what frequency should a 170-turn, flat coil of cross sectional area of 250 cm2 be rotated in a uniform 30-mT magnetic field to have a maximum value of the induced emf equal to 6.0 V?
a. 7.5 Hz b. 7.1 Hz c. 8.0 Hz d. 8.4 Hz e. None of the above
Homework Answers
in second problem magnetic
field is very low i.e 30 *10^-3 T . Hence the frequency required to
generate 6V is this much of high i.e f=47.0588 Hz .
Add Answer to:
A flat coil of wire consisting of 20 turns, each with an area of 10 cm, is positioned perpendicularly to a uniform magnetic field that varies with time according to B=2.5 f
A flat coil of wire consisting of 15 turns, each with an area of 50 cm2,...
A flat coil of wire consisting of 15 turns, each with an area of 50 cm2, is positioned perpendicularly to a uniform magnetic field that increases its magnitude at a constant rate from 3 T to 7 T in 2.0 s. What is the magnitude of the emf (in Volts) induced in the coil? Your answer should be a number with two decimal places, do not include the unit.
A flat coil of wire consisting of 22 turns, each with an area of 50 cm2,...
A flat coil of wire consisting of 22 turns, each with an area of 50 cm2, is positioned perpendicularly to a uniform magnetic field that increases its magnitude at a constant rate from 2 T to 7 T in 2.0 s. What is the magnitude of the emf (in Volts) induced in the coil? Your answer should be a number with two decimal places, do not include the unit.
A flat coil of wire consisting of 25 turns, each with an area of 3.5e-3 m2,...
A flat coil of wire consisting of 25 turns, each with an area of 3.5e-3 m2, is positioned perpendicularly to a uniform magnetic field that increases its magnitude at a constant rate from 4 T to 9 T in 1.2s. If the coil has a total resistance of 0.5 Ohm, what is the magnitude of the induced current? a. 45.5mA b. 168mA c. 303mA d. 26.9mA e. 673mA
coil with 22 turns sits in a magnetic field. The cross-sectional area of the coil is...
coil with 22 turns sits in a magnetic field. The cross-sectional area of the coil is 9.6 cm2. If the magnetic field uniformly reduces from 11 T to 3.0 T in 6.0 seconds, what is the magnitude of the induced emf in that coil?
A generator is constructed by rotating a coil of N turns in a magnetic field B...
A generator is constructed by rotating a coil of N turns in a magnetic field B at a frequency f. The internal resistance of the coil is R and the cross sectional area of the coil is A. The average induced EMF doubles if the magnetic field B is doubled. The average induced EMF doubles if the area A is doubled. The average induced EMF doubles if the frequency f is doubled. The average induced EMF doubles if the resistance...
A generator is constructed by rotating a coil of N turns in a magnetic field B...
A generator is constructed by rotating a coil of N turns in a magnetic field B at a frequency f. The internal resistance of the coil is R and the cross sectional area of the coil is A. Which of the following statements are true? (Give ALL correct answers, i.e., B, AC, BCD...) A) The maximum induced EMF doubles if the frequency f is doubled. B) The maximum induced EMF doubles if the magnetic field B is doubled. C) The...
The magnetic field passing perpendicularly through a single-loop coil of area 37 cm2 changes steadily from...
The magnetic field passing perpendicularly through a single-loop coil of area 37 cm2 changes steadily from 6.5x10-3 T to 9.3x10-3 T in 0.50 seconds. What emf is induced in the coil? Answer2.1x10E-5 Volts
A generator is constructed by rotating a coil of N turns in a magnetic field B...
A generator is constructed by rotating a coil of N turns in a magnetic field B at a frequency f. The internal resistance of the coil is R and the cross sectional area of the coil is A. True or False 1. The average induced EMF doubles if the resistance R is doubled 2. The average induced EMF doubles if the magnetic field B is doubled 3. The maximum induced EMF occurs when the coil is rotated about an axis...
A coil of 255 turns and area 0.500 m2 rotates in a uniform magnetic field B...
A coil of 255 turns and area 0.500 m2 rotates in a uniform magnetic field B = 0.350 T such that the angle between the magnetic field and the area vector is given by φ(t) = 6.50t rad. If the coil starts from rest at t = 0, what is the magnitude of the emf induced in the coil at t = 25.8 s?
An experiment to determine the local magnetic field of the Earth uses a coil consisting of...
An experiment to determine the local magnetic field of the Earth uses a coil consisting of 210 individual loops, each of area 12.7 cm2 . The coil is rotated and the resultant induced EMF is used to determine the magnetic field. The coil is rotated in a time interval of 4.90×10−2 s from a position where its plane is perpendicular to the earth's magnetic field to one where its plane is parallel to the field. The earth's magnetic field at the...
