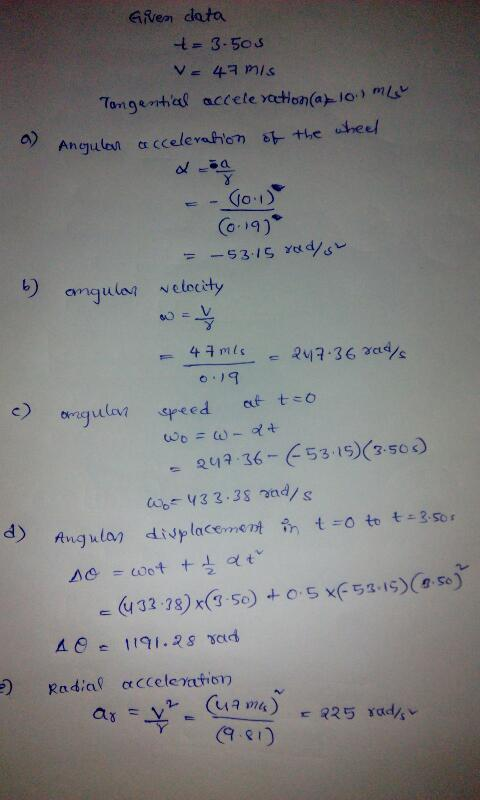

At a time t = 3.50 s , a point on the rim of a wheel...
At a time t = 3.50 s , a point on the rim of a wheel with a radius of 0.190 m has a tangential speed of 47.0 m/s as the wheel slows down with a tangential acceleration of constant magnitude 10.1 m/s2
1. Calculate the wheel's constant angular acceleration.
| 2.Calculate the angular velocity at t = 3.50 s .
3.Calculate the angular velocity at t=0 4.Through what angle did the wheel turn between t=0 and t = 3.50 s ? 5. Prior to the wheel coming to rest, at what time will the radial acceleration at a point on the rim equal g = 9.81 m/s2 ? |
Homework Answers
At a time t 2.90 s, a point on the rim of a wheel with a radius of 0.240 m has a tangential speed of 50.0 m/s as the wheel slows down with a tangential acceleration of constant magnitude 10.2 m/s2.
At a time t 2.90 s, a point on the rim of a wheel with a radius of 0.240 m has a tangential speed of 50.0 m/s as the wheel slows down with a tangential acceleration of constant magnitude 10.2 m/s2. Part A Calculate the wheel's constant angular acceleration Part B Calculate the angular velocity at t 2.90 s Part C 0. Calculate the angular velocity at t =0 Part D Through what angle did the wheel turn between t = 0 and t...
At time t=0 a grinding wheel has an angular velocity of 20.0 rad/s . It has...
At time t=0 a grinding wheel has an angular velocity of 20.0 rad/s . It has a constant angular acceleration of 30.0 rad/s2 until a circuit breaker trips at time t = 1.90 s . From then on, the wheel turns through an angle of 440 rad as it coasts to a stop at constant angular deceleration. A. Through what total angle did the wheel turn between t=0 and the time it stopped? B. At what time does the wheel...
At time t=0 a grinding wheel has an angular velocity of 23.0 rad/s . It has...
At time t=0 a grinding wheel has an angular velocity of 23.0 rad/s . It has a constant angular acceleration of 35.0 rad/s2 until a circuit breaker trips at time t = 1.90 s . From then on, the wheel turns through an angle of 433 rad as it coasts to a stop at constant angular deceleration. Through what total angle did the wheel turn between t=0 and the time it stopped? At what time does the wheel stop? What...
In the figure, point P is on the rim of a wheel of radius 2.0 m. At time t= 0, the wheel is at rest, and P is on the x-axis.
In the figure, point P is on the rim of a wheel of radius 2.0 m. At time t= 0, the wheel is at rest, and P is on the x-axis. The wheel undergoes a uniform counterclockwise angular acceleration of 0.010 rad/s2 about the center O. (a) what is the tangential acceleration of P? (b) What is the linear speed of P when it reaches the y-axis for the second time (hint, solve the angular speed first)? (d) How long after starting does...
At time t=0 a grinding wheel has an angular velocity of 22.0 rad/s . It has...
At time t=0 a grinding wheel has an angular velocity of 22.0 rad/s . It has a constant angular acceleration of 29.0 rad/s2 until a circuit breaker trips at time t = 2.10 s . From then on, the wheel turns through an angle of 436 rad as it coasts to a stop at constant angular deceleration. (a) Through what total angle did the wheel turn between t=0 and the time it stopped? Express your answer in radians. (b) At...
At time t=0 a grinding wheel has an angular velocity of 30.0 rad/s . It has...
At time t=0 a grinding wheel has an angular velocity of 30.0 rad/s . It has a constant angular acceleration of 34.0 rad/s2 until a circuit breaker trips at time t = 2.30 s . From then on, the wheel turns through an angle of 433 rad as it coasts to a stop at constant angular deceleration. Part A Through what total angle did the wheel turn between t=0 and the time it stopped? Express your answer in radians. Part...
At time t = 0 a grinding wheel has an angular velocity of 30.0 rad/s It has a constant angular acceleration of 28.0 rad/s^2 until a circuit breaker trips at time t = 2.30 s
A Spinning Grinding Wheel At time t = 0 a grinding wheel has an angular velocity of 30.0 rad/s It has a constant angular acceleration of 28.0 rad/s^2 until a circuit breaker trips at time t = 2.30s. From then on, the wheel turns through an angle of 436 rad as it coasts to a stop at constant angular deceleration. Through what total angle did the wheel turn between t = 0 and the time it stopped? At what time does...
down. The tangential acceleration of the point P on the rim is S m/s Q5 (15...
down. The tangential acceleration of the point P on the rim is S m/s Q5 (15 points): A rotating disk ts2s, point P has a linear speed of20ms. starts slowing a) Calculate the angular acceleration of the disk? b) Calculate the angular velocities of the disk att 0 and t 2s Find the angular and linear displacements of the disk at the time to t-2s R 10 m d) At what time will the radial acceleration of the disk be...
The angular position of a point on the rim of a rotating wheel is given by...
The angular position of a point on the rim of a rotating wheel is given by θ = 6.0t - 2.0t2 + t3, where θ is in radians and t is given in seconds. (a) What is the angular velocity at t = 2 s? rad/s (b)What is the angular velocity at t = 4.0 s? rad/s (c) What is the average angular acceleration for the time interval that begins at t = 2 s and ends at t =...
A wheel 2.10 m in diameter lies in a vertical plane and rotates about its central...
A wheel 2.10 m in diameter lies in a vertical plane and rotates about its central axis with a constant angular acceleration of 3.50 rad/s2. The wheel starts at rest at t = 0, and the radius vector of a certain point P on the rim makes an angle of 57.3° with the horizontal at this time. At t = 2.00 s, find the following. (a) the angular speed of the wheel (b) the tangential speed of the point P...
down. The tangential acceleration of the point P on the rim is S m/s Q5 (15 points): A rotating disk ts2s, point P has a linear speed of20ms. starts slowing a) Calculate the angular acceleration of the disk? b) Calculate the angular velocities of the disk att 0 and t 2s Find the angular and linear displacements of the disk at the time to t-2s R 10 m d) At what time will the radial acceleration of the disk be...
