Question

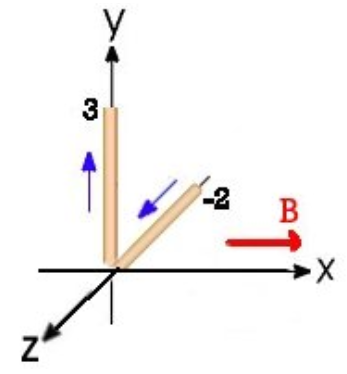

A segment of wire carries a current of 25 A along the z axis from z = -2.0 m to z = 0 and then along the y axis from y = 0 to y = 3.0 m.


 A segment of wire carries a current of 25 A along the z axis from z = -2.0 m to z = 0 and then along the y axis from y = 0 to y = 3.0 m. In this region of space the magnetic field is equal to 50 mT in the positive x direction. What is the magnitude of the force on this segment of wire?

  •  1.25 N

  •  2.5 N

  •  3.75 N

  •  4.5 N

  •  6.25 N


science   physics
1 0
Add a comment Improve this question Transcribed image text
Next > < Previous
Sort answers by oldest

Homework Answers

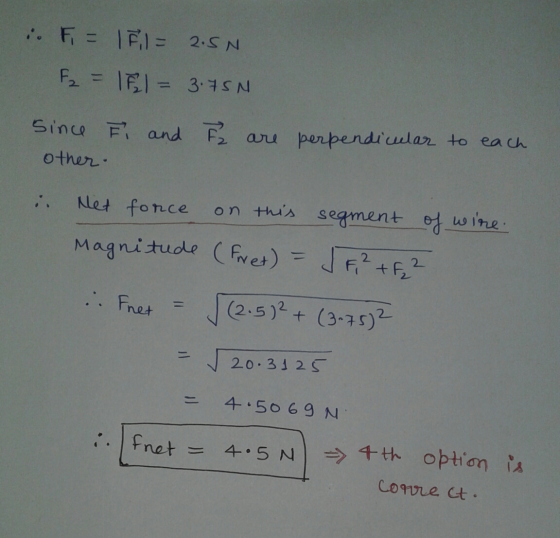

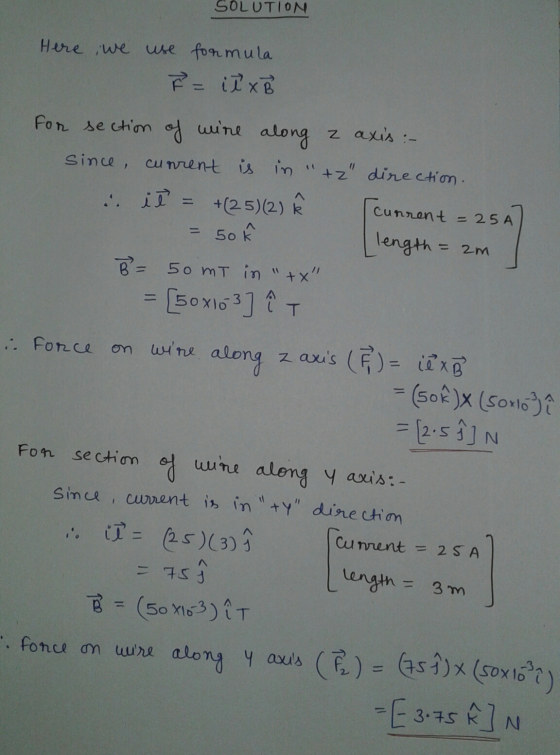

Answer #1

0 0
Add a comment
