Four capacitors (C1 = 9.0 μF, C2= 7.0 μF, C3 = 12 μF, and C4 = 30 μF)are connected to a 18-V battery as shown below.
Four capacitors (C1 = 9.0 μF, C2= 7.0 μF, C3 = 12 μF, and C4 = 30 μF)are connected to a 18-V battery as shown below. (a) Calculate the equivalent capacitance of the circuit. (b) Determine the voltages across each capacitor. (c) Find the charge on each capacitor. Please, show all the important physics steps to earn full credits.
Homework Answers
Add Answer to:

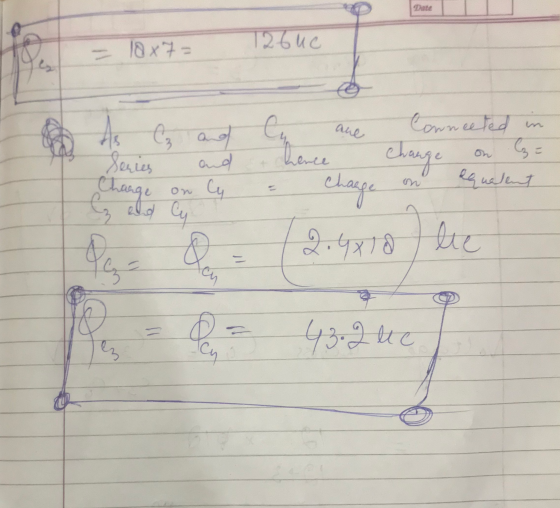

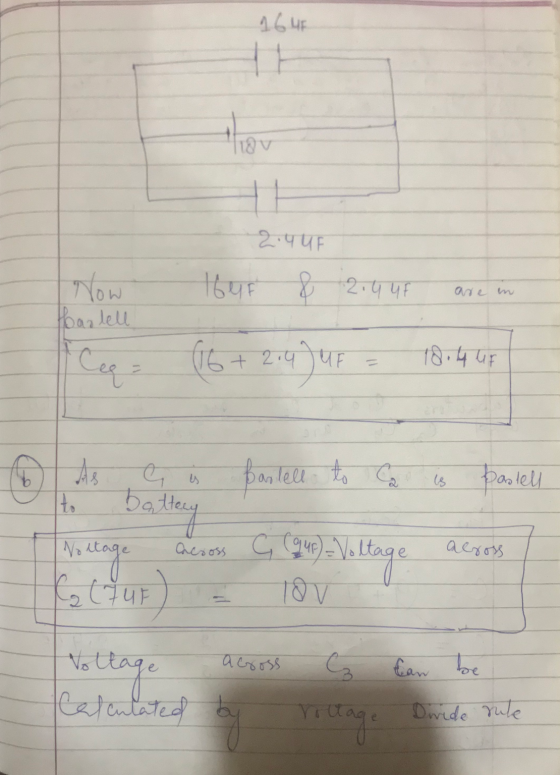

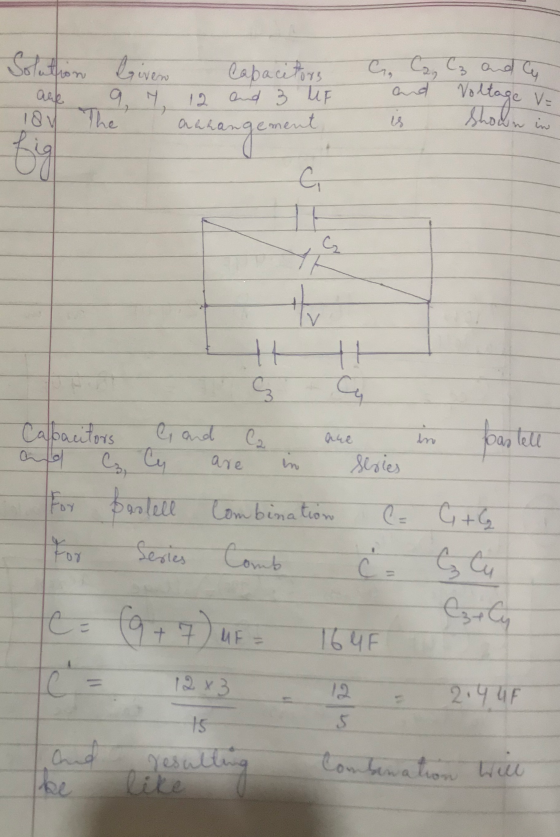

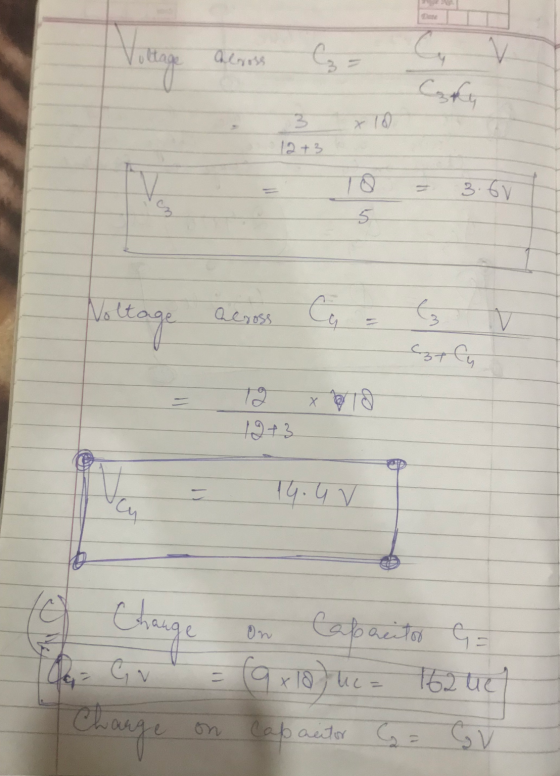

Four capacitors (C1 = 9.0 μF, C2= 7.0 μF, C3 = 12 μF, and C4 = 30 μF)are connected to a 18-V battery as shown below.
Two capacitors, C1 = 26.0 μF and C2=37.0 μF, are connected in series, and a 9.0-v battery is connected across them.
Two capacitors, C1 = 26.0 μF and C2=37.0 μF, are connected in series, and a 9.0-v battery is connected across them. (a) Find the equivalent capacitance, and the energy contained in this equivalent capacitor(b) Find the energy stored in each individual capacitor(c) If the same capacitors were connected in parallel, what potential difference would be required across them so that the combination stores the same energy as in part (a)? Which capacitor stores more energy in this situation, C1 or C2?
Three capacitors of capacitance C1=2.00 C2 =5.00 and C3=17.0 μF are connected to a 24.0 V...
Three capacitors of capacitance C1=2.00 C2 =5.00 and C3=17.0 μF are connected to a 24.0 V battery as shown in the figure 1 3 C2 Calculate the charge on C3. 14258 c What is the equivalent capacitance for the circuit? How does the charge on that equivalent capacitance compare with the charge on C3? submit AnsNer Incorrect. Tries 1/20 Previous Tries Calculate the voltage across C1 Submit AtENer Tries 0/20
Two capacitors, C1 = 28.0 μF and C2 = 35.0 μF, are connected in series, and...
Two capacitors, C1 = 28.0 μF and C2 = 35.0 μF, are connected in series, and a 9.0-V battery is connected across them. (a) Find the equivalent capacitance, and the energy contained in this equivalent capacitor. equivalent capacitance ______ μF total energy stored _______ J (b) Find the energy stored in each individual capacitor. energy stored in C1 ______ J energy stored in C2 ______ J Show that the sum of these two energies is the same as the energy...
Three capacitors of capacitance C1=3.50 μF,C2 =9.50 μF, and C3=11.0 μF are connected toa...
Three capacitors of capacitance C1=3.50 μF, C2 =9.50 μF, and C3=11.0 μF are connected to a 40.0 V battery as shown in the figure.1. Calculate the charge on C3.2. Calculate the voltage across C1
In this circuit, C1=10μF, C2=12 μF, and C3=15 μF. The voltage across the batteries is 20V....
In this circuit, C1=10μF, C2=12 μF, and C3=15 μF. The voltage
across the batteries is 20V.
a. Find the voltage across each capacitor and the charge on each
one.
b. These three capacitors are replaced by two equal capacitors
in parallel. What should the capacitance of these two capacitors be
for the two circuits to be equivalent?
C1 C2 C3
Three capacitors of capacitance C1=3.50 μF, C2 =9.00 μF, and C3=12.0 μF are connected to a...
Three capacitors of capacitance C1=3.50 μF, C2 =9.00 μF, and
C3=12.0 μF are connected to a 40.0 V battery as shown in the
figure.
Calculate the charge on C3. 2.45×10-4 C Y
Calculate the voltage across C1.
You can use your answer to the previous problem to find the
voltage across C3, and then find the voltage across C1. Or you can
find the charge across the parallel combination of C1 and C2, then
find the voltage.
In the figure a 27 V battery is connected across capacitors of capacitances C1-C6-3.0 μF and...
In the figure a 27 V battery is connected across capacitors of capacitances C1-C6-3.0 μF and C3-Cs* 2.0C,-2.0C4-5.0 μF, what are (a) the equivalent capacitance Ceq of the capacitors and (b) the charge stored by Ceq? What are (c) V1 and (d) q1 of capacitor 1, (e) V2 and (f) 2 of capacitor 2, and (g) V3 and (h) 3 of capacitor 3? Gs C2 C4 CS C5 (a) Number (b) Number (c) Number (d) Number (e) Number (f) Number...
In the figure a 23 V battery is connected across capacitors of capacitances C1 = C6 = 5.0 μF and C3 = C5=...
In the figure a 23 V battery is connected across
capacitors of
capacitances C1 = C6 =
5.0 μF
and C3 = C5=
2.0C2 = 2.0C4 = 5.0
μF. What are (a) the equivalent
capacitance Ceq of the capacitors
and (b) the charge stored
by Ceq? What
are (c) V1 and (d) q1 of
capacitor
1,(e) V2 and (f) q2 of
capacitor 2,
and (g) V3 and (h) q3 of
capacitor 3?
Two capacitors, C1 = 4.41 μF and C2 = 13.9 μF, are connected in parallel, and...
Two capacitors, C1 = 4.41 μF and C2 = 13.9 μF, are connected in parallel, and the resulting combination is connected to a 9.00-V battery. (a) Find the equivalent capacitance of the combination. μF (b) Find the potential difference across each capacitor. V1 = V V2 = V (c) Find the charge stored on each capacitor. Q1 = μC Q2 = μC
Two capacitors, C1 = 4.35 μF and C2 = 12.5 μF, are connected in parallel, and...
Two capacitors, C1 = 4.35 μF and C2 = 12.5 μF, are connected in parallel, and the resulting combination is connected to a 9.00-V battery. (a) Find the equivalent capacitance of the combination. μF (b) Find the potential difference across each capacitor. V1 = V V2 = V (c) Find the charge stored on each capacitor. Q1 = μC Q2 = μC
Three capacitors of capacitance C1=2.00 C2 =5.00 and C3=17.0 μF are connected to a 24.0 V battery as shown in the figure 1 3 C2 Calculate the charge on C3. 14258 c What is the equivalent capacitance for the circuit? How does the charge on that equivalent capacitance compare with the charge on C3? submit AnsNer Incorrect. Tries 1/20 Previous Tries Calculate the voltage across C1 Submit AtENer Tries 0/20
In this circuit, C1=10μF, C2=12 μF, and C3=15 μF. The voltage
across the batteries is 20V.
a. Find the voltage across each capacitor and the charge on each
one.
b. These three capacitors are replaced by two equal capacitors
in parallel. What should the capacitance of these two capacitors be
for the two circuits to be equivalent?
C1 C2 C3
Three capacitors of capacitance C1=3.50 μF, C2 =9.00 μF, and
C3=12.0 μF are connected to a 40.0 V battery as shown in the
figure.
Calculate the charge on C3. 2.45×10-4 C Y
Calculate the voltage across C1.
You can use your answer to the previous problem to find the
voltage across C3, and then find the voltage across C1. Or you can
find the charge across the parallel combination of C1 and C2, then
find the voltage.
In the figure a 27 V battery is connected across capacitors of capacitances C1-C6-3.0 μF and C3-Cs* 2.0C,-2.0C4-5.0 μF, what are (a) the equivalent capacitance Ceq of the capacitors and (b) the charge stored by Ceq? What are (c) V1 and (d) q1 of capacitor 1, (e) V2 and (f) 2 of capacitor 2, and (g) V3 and (h) 3 of capacitor 3? Gs C2 C4 CS C5 (a) Number (b) Number (c) Number (d) Number (e) Number (f) Number...
In the figure a 23 V battery is connected across
capacitors of
capacitances C1 = C6 =
5.0 μF
and C3 = C5=
2.0C2 = 2.0C4 = 5.0
μF. What are (a) the equivalent
capacitance Ceq of the capacitors
and (b) the charge stored
by Ceq? What
are (c) V1 and (d) q1 of
capacitor
1,(e) V2 and (f) q2 of
capacitor 2,
and (g) V3 and (h) q3 of
capacitor 3?
