A 2.0-cm-diameter, 15-cm-long solenoid is tightly wound with one layer of wire. A 2.5 A current...

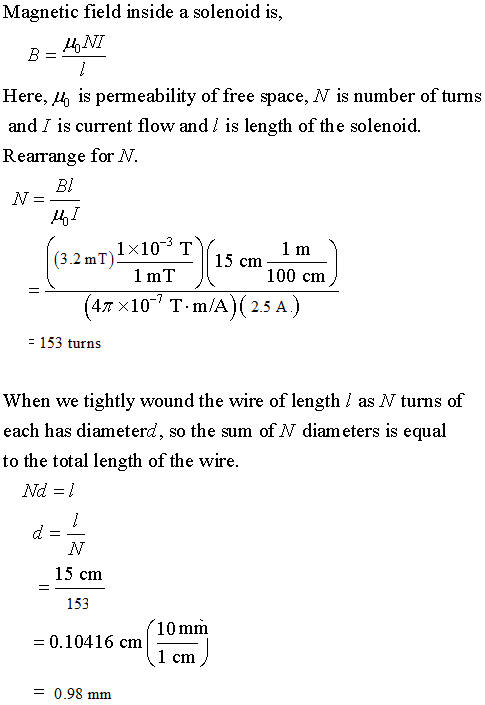

A 2.0-cm-diameter, 15-cm-long solenoid is tightly wound with one layer of wire. A 2.5 A current through the wire generates a 3.2 mT magnetic field inside the solenoid.
What is the diameter of the wire, in mm?
Express your answer using two significant figures.
Homework Answers
Add Answer to:
A 2.0-cm-diameter, 15-cm-long solenoid is tightly wound with one
layer of wire. A 2.5 A current...
A 2.0-cm-diameter, 15-cm-long solenoid is tightly wound with one layer of wire. A 2.1 A current...
A 2.0-cm-diameter, 15-cm-long solenoid is tightly wound with one layer of wire. A 2.1 A current through the wire generates a 3.1 mT magnetic field inside the solenoid. What is the diameter of the wire, in mm? Express your answer using two significant figures.
35) A 4.0cm diameter, 15cm long solenoid it tightly wound from with 1500 turns. If a...
35) A 4.0cm diameter, 15cm long solenoid it tightly wound from with 1500 turns. If a current of 4 amps is passed through the solenoid, what is the strength of the magnetic field inside?
A 15cm long solenoid with radius 2.5 cm is closely wound with 600 turns of wire....
A 15cm long solenoid with radius 2.5 cm is closely wound with 600 turns of wire. The current in the windings is 8 A. What is the magnitude of the magnetic field generated in the center of the coil? (in mT= milli-Tesla)
A cylindrical solenoid has a length of l = 160 cm. It is wound tightly with...
A cylindrical solenoid has a length of l = 160 cm. It is wound tightly with 4800 turns of wire, and the wire carries a current I = 4.0 μA. What is the magnetic field inside the solenoid?
A long solenoid (diameter = 5.0 cm) is wound with 960 turns per meter of thin...
A long solenoid (diameter = 5.0 cm) is wound with 960 turns per meter of thin wire through which a current of 300 mA is maintained. A wire carrying 12 A is inserted along the axis of the solenoid. What is the magnitude of the magnetic field at a point 2.0 cm from the axis
A 15 cm long solenoid with radius 0.7 cm is closely wound with 596 turns of...
A 15 cm long solenoid with radius 0.7 cm is closely wound with 596 turns of wire. The current in the windings is 7.7 A. Compute the magnetic field at a point near the center of the solenoid. (Give your answer in decimal using "mT" (milli Tesla) as unit)
To construct a solenoid, you wrap insulated wire uniformly around a plastic tube 14 cm in...
To construct a solenoid, you wrap insulated wire uniformly around a plastic tube 14 cm in diameter and 60 cm in length. You would like a 2.0 −A current to produce a 2.5 −kG magnetic field inside your solenoid. What is the total length of wire you will need to meet these specifications? Express your answer using two significant figures.
A solenoid 10.0 cm in diameter and 66.4 cm long is made from copper wire of...
A solenoid 10.0 cm in diameter and 66.4 cm long is made from copper wire of diameter 0.100 cm, with very thin insulation. The wire is wound onto a cardboard tube in a single layer, with adjacent turns touching each other. What power must be delivered to the solenoid if it is to produce a field of 6.80 mT at its center?
A solenoid 10.0 cm in diameter and 64.6 cm long is made from copper wire of...
A solenoid 10.0 cm in diameter and 64.6 cm long is made from copper wire of diameter 0.100 cm, with very thin insulation. The wire is wound onto a cardboard tube in a single layer, with adjacent turns touching each other. What power must be delivered to the solenoid if it is to produce a field of 7.10 mT at its center? _____W
A solenoid 10.0 cm in diameter and 77.0 cm long is made from copper wire of...
A solenoid 10.0 cm in diameter and 77.0 cm long is made from copper wire of diameter 0.100 cm, with very thin insulation. The wire is wound onto a cardboard tube in a single layer, with adjacent turns touching each other. What power must be delivered to the solenoid if it is to produce a field of 7.80 mT at its center? The answer is in W.
35) A 4.0cm diameter, 15cm long solenoid it tightly wound from with 1500 turns. If a current of 4 amps is passed through the solenoid, what is the strength of the magnetic field inside?
A solenoid 10.0 cm in diameter and 66.4 cm long is made from copper wire of diameter 0.100 cm, with very thin insulation. The wire is wound onto a cardboard tube in a single layer, with adjacent turns touching each other. What power must be delivered to the solenoid if it is to produce a field of 6.80 mT at its center?
