PART A). Charge Q1=6.0 nC is at (0.30 m, 0), charge Q2=−1.0 nC is at (0,...

PART A). Charge Q1=6.0 nC is at (0.30 m, 0), charge Q2=−1.0 nC is at (0, 0.10 m), and charge Q3=5.0 nC is at (0, 0). What is the magnitude of the net electrostatic force on the 5.0-nC charge due to the other charges? (k=1/4πϵ0=8.99×109 N · m2/C2). PART B). What is the direction of the net electrostatic force on the 5.0-nC charge due to the other charges?

science   physics
0 0
Add a comment Improve this question Transcribed image text
Next > < Previous
Sort answers by oldest

Homework Answers

Answer #1

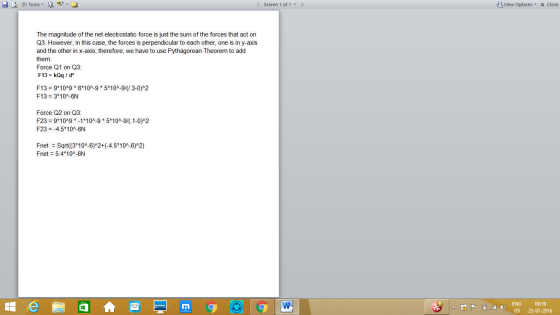

Tools Screen 1 of 1 E View Options Close The magnitude of the net electrostatic force is just the sum of the forces that act

0 0
Add a comment
