A series circuit consists of an AC source of variable frequency, a 115 Ohm resistor, a...

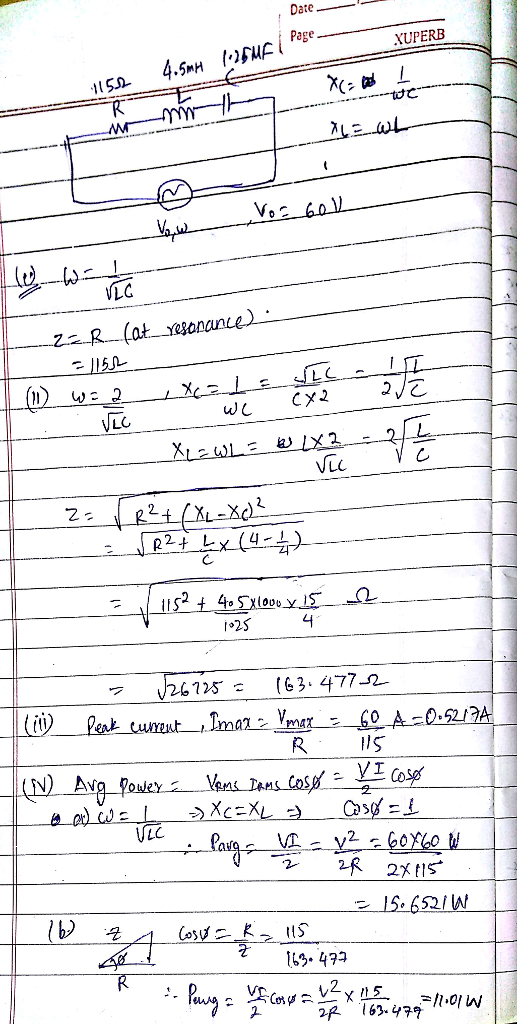

A series circuit consists of an AC source of variable frequency, a 115Ω resistor, a 1.25 μF capacitor, and a 4.50 mH inductor. Find the impedance of this circuit when the angular frequency of the ac source is adjusted to (a) the resonance angular frequency; (b) twice the resonance angular frequency. If the power source provides a peak voltage of 60 V. what ore (c) the peak current in the circuit and (d) the average power dissipated in the circuit when the source is operated at the same frequencies as in part (a) and (b), respectively?
Homework Answers
Add Answer to:
A series circuit consists of an AC source of variable frequency, a 115 Ohm resistor, a...
A series circuit consists of an ac source of variable frequency, a 100 12 resistor, a...
A series circuit consists of an ac source of variable frequency, a 100 12 resistor, a 1.05 F capacitor, and a 5.00 mH inductor. Part A Find the impedance of this circuit when the angular frequency of the ac source is adjusted to the resonance angular frequency EVO AXO ? z = 12 Submit Request Answer Part B Find the impedance of this circuit when the angular frequency of the ac source is adjusted to twice the resonance angular frequency....
A series RLC circuit consists of an ac source of adjustable frequency, a 100 resistor, a...
A series RLC circuit consists of an ac source of adjustable frequency, a 100 resistor, a 5 mH inductor and a 2 F capacitor.(a) Find the resonance frequency.(b) Find the impedance of the circuit when the angular frequency of the ac source is adjusted to 4 times the resonance frequency.(c) Find the impedance of the circuit when the angular frequency of the ac source is adjusted to one-fourth of the resonance frequency.(d) Can you see a trend between XL and...
1. Compute the impedance of a series R-L-C circuit at angular frequencies of ω1= 1000 rad/s...
1. Compute the impedance of a series R-L-C circuit at angular frequencies of ω1= 1000 rad/s , ω2= 710 rad/s and ω3= 455 rad/s . Take R = 170 Ω , L = 0.935 H and C = 2.40 μF . What is the phase angle of the source voltage with respect to the current when ω = 1000 rad/s? 2. A series R–L–C circuit of R = 150 Ω , L = 0.915 H and C = 2.05 μF...
An RLC circuit consists of a resistor, a inductor, and a capacitor connected in series to an AC v...
An RLC circuit consists of a resistor, a inductor, and a capacitor connected in series to an AC voltage source with an RMS voltage of 74 volts. At half the resonant frequency, the phase angle is -25 degrees and the inductive reactance is 47 Ohms. What is the average dissipated power at twice the resonant frequency in Watts?
A circuit consists of a resistor, capacitor, and inductor connected in series to an AC source....
A circuit consists of a resistor, capacitor, and inductor connected in series to an AC source. As the source frequency increases, the current in the circuit decreases. Which statement about the circuit is NOT correct as the source frequency increases? a) The inductive reactance increases. b) The circuit is said to become more capacitive than inductive. c) The total power from the source decreases. d) The impedance of the circuit increases. e) The phase angle for the circuit becomes more...
An AC generator supplies an rms voltage of 115 V at 50.0 Hz. It is connected...
An AC generator supplies an rms voltage of 115 V at 50.0 Hz. It is connected in series with a 0.600 H inductor, a 5.60 μF capacitor and a 271 Ω resistor. a. What is the impedance of the circuit? Tries 0/20 b. What is the rms current through the resistor? Tries 0/20 c. What is the average power dissipated in the circuit? Tries 0/20 d. What is the peak current through the resistor? Tries 0/20 e. What is the...
An RLC circuit consists of a resistor, a inductor, and a capacitor connected in series to...
An RLC circuit consists of a resistor, a inductor, and a capacitor connected in series to an AC voltage source with an RMS voltage of 75 volts. At half the resonant frequency, the phase angle is -37 degrees and the inductive reactance is 49 Ohms. What is the average dissipated power at twice the resonant frequency in Watts?
What capacitor in series with a 100 Ohm resistor and a 20.0 mH inductor will give...
What capacitor in series with a 100 Ohm resistor and a 20.0 mH inductor will give a resonance frequency of 800 Hz? A series RLC circuit consists of a 99.0 Ohm resistor, a 0.130 H inductor, and a 20.0 muF capacitor. It is attached to a 120 V/60 Hz power line. What is the peak current I? The tuning circuit in an FM radio receiver is a series RLC circuit with a 0.2000 muH inductor. The receiver is tuned to...
4) An RLC circuit consists of a resistor, a inductor, and a capacitor connected in series to an A...
4) An RLC circuit consists of a resistor, a inductor, and a capacitor connected in series to an AC voltage source with an RMS voltage of 59 volts. At half the resonant frequency, the phase angle is -35 degrees and the inductive reactance is 46 Ohms. What is the average dissipated power at twice the resonant frequency in Watts?
An AC generator supplies an rms voltage of 115 V at 60.0 Hz. It is connected...
An AC generator supplies an rms voltage of 115 V at 60.0 Hz. It is connected in series with a 0.450 H inductor, a 3.20 μF capacitor and a 396 Ω resistor. What is the impedance of the circuit? 7.69×102 ohm You are correct. Previous Tries What is the rms current through the resistor? You can use a similar equation fo Ohm's law for an RLC circuit. Incorrect. Tries 1/20 Previous Tries What is the average power dissipated in the...
A series circuit consists of an ac source of variable frequency, a 100 12 resistor, a 1.05 F capacitor, and a 5.00 mH inductor. Part A Find the impedance of this circuit when the angular frequency of the ac source is adjusted to the resonance angular frequency EVO AXO ? z = 12 Submit Request Answer Part B Find the impedance of this circuit when the angular frequency of the ac source is adjusted to twice the resonance angular frequency....
What capacitor in series with a 100 Ohm resistor and a 20.0 mH inductor will give a resonance frequency of 800 Hz? A series RLC circuit consists of a 99.0 Ohm resistor, a 0.130 H inductor, and a 20.0 muF capacitor. It is attached to a 120 V/60 Hz power line. What is the peak current I? The tuning circuit in an FM radio receiver is a series RLC circuit with a 0.2000 muH inductor. The receiver is tuned to...
