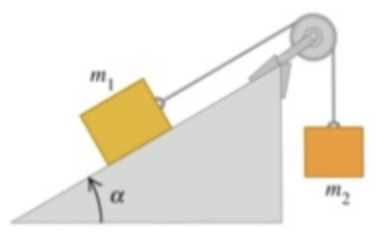

block 1 rests along the length of the incline and has a mass of 58kg



 block 1 rests along the length of the incline and has a mass of 58kg. Block 2 has a mass of 70kg.

 The length of the incline is twice the height.

 8. What is the coefficient of static friction?

 a. 0.24

 b. 0.33

 c. 0.68

 d. 0.82

 9. What is the angle of the incline (deg)?

 a. 25

 b. 30

 c. 45

 d. 60

science   physics
0 0
Add a comment Improve this question Transcribed image text
Next > < Previous
Sort answers by oldest

Homework Answers

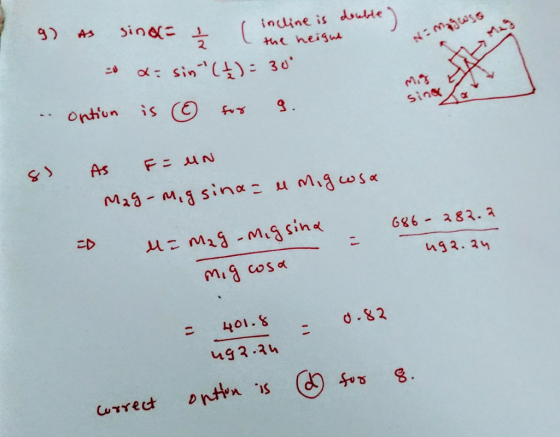

Answer #1

0 0
Add a comment
