A 27.2 kg mass is suspended by the cable assembly as shown in figure below. The...

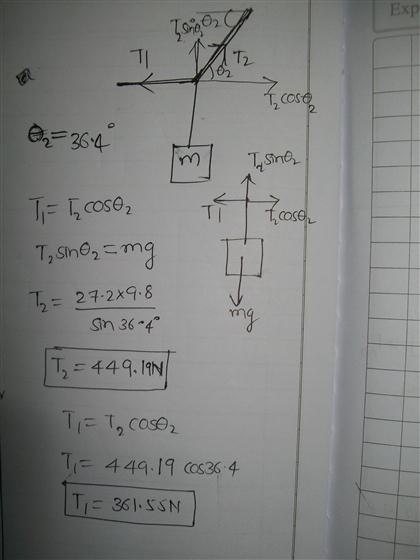

A 27.2 kg mass is suspended by the cable assembly as shown in figure below. The cables have no mass of their own. The cable to the left (cable 1) of the mass makes an angle, θ1= 0.00 degrees with the horizontal, and the cable right (cable 2) makes an angle, θ2=36.4 degrees. If the mass is at rest what is the tension in each of the cables, T1 and T2? The acceleration due to gravity is g = 9.81 m/s^2.
T1= _____N
T2= _____ N
Homework Answers
