The forces in (Figure 1) are acting on a 2.5 kg object. What is ax, the...

The forces in (Figure 1) are acting on a 2.5 kg object. What is ax, the x-component of the object's acceleration?

The forces in (Figure 1) are acting on a

science   physics
0 0
Add a comment Improve this question Transcribed image text
Next > < Previous
Sort answers by oldest

Homework Answers

✔ Recommended Answer
Answer #1

The question is asking you to find the acceleration in the x direction. Because we're interested in finding the acceleration only in the x direction, we're also interested in the forces only in the x direction.
F = ma
Fx = max
WHERE:
Fx = forces in the x direction
m = mass
ax = acceleration in the x direction

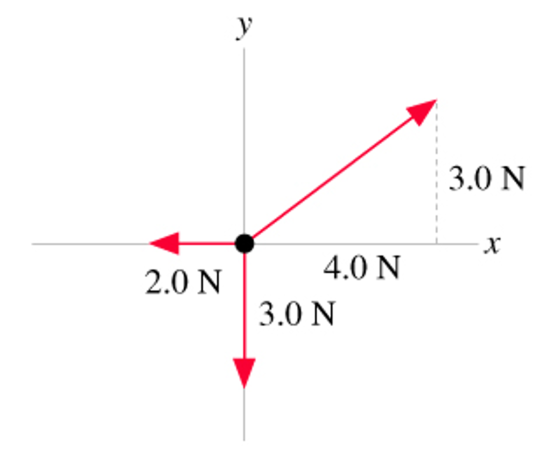

If you look at the figure, there are only two forces in the x direction. The first force is the x component force 4.0 N acting to the right, denoted as +4.0 N. The second force is the 2.0 N force acting to the left, denoted as -2.0 N.
Fx = max
4.0 N - 2.0 N = (2.5 kg)*ax
2.0 N = (2.5 kg)*ax
ax = 0.8 m/s^2

8 15
