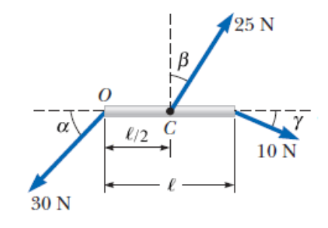

The figure below shows forces acting at various points on a metal cylinder. The angles α = 46°, β = 29°, γ = 23°.
The figure below shows forces acting at various points on a metal cylinder. The angles α = 46°, β = 29°, γ = 23°. The length l = 4.4 m. Find the net torque (in N·m) on the cylinder about the following axes.
(a) an axis through O perpendicular to the page
(b) an axis through C perpendicular to the page

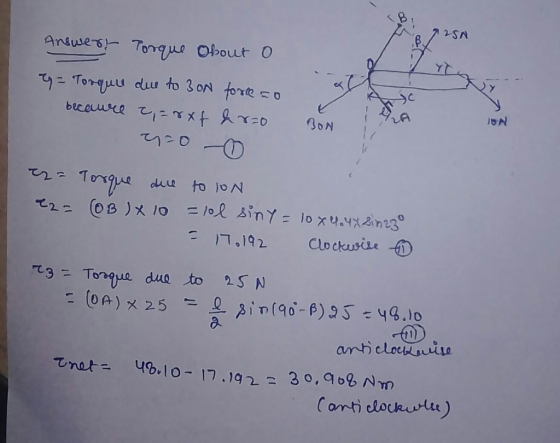

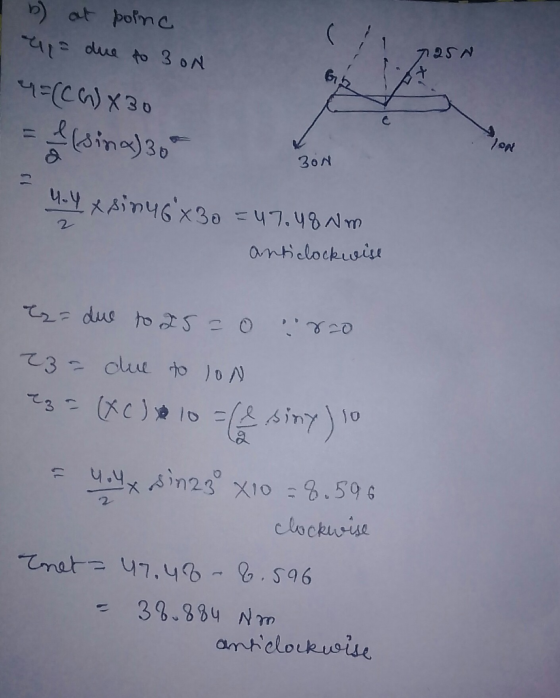

Homework Answers
please
carefully find torque using the above formulaAdd Answer to:
The figure below shows forces acting at various points on a metal cylinder. The angles α = 46°, β = 29°, γ = 23°.
Calculate the net torque (magnitude and direction) on the beam in the figure below about the...
Calculate the net torque (magnitude and direction) on the beam
in the figure below about the following axes. (Assume α = 43°, β =
28°, γ = 16°, ℓ = 3.6 m) (a) an axis through O perpendicular to the
page (b) an axis through C perpendicular to the page
Three forces are acting on a massless rod of length 6 m as shown in the...
Three forces are acting on a massless rod of length 6 m as shown
in the figure below. The rod and the forces are in the xy plane. If
α=50°, β=30°, and γ = 25°, the torque on the rod about the z-axis
(through the origin of the coordinate system at point C ) is:
A). 35.6 k Nm . B). 46.0 k Nm . C). 71.3 k Nm . D). 56.3 k
Nm
125 N 10 N 30 N
(14 points) The figure below shows the bird's eye view of three forces acting on a...
(14 points) The figure below shows the bird's eye view of three forces acting on a long, thin rod with a length of 2.40 m that can pivot about a point one-fourth of its length from one end of the rod. The moment of inertia of the rod about its pivot point is 37.8 kg.m. Forces 1 and 2 each have a magnitude of 120 N. Force 1 acts perpendicularly to the rod at the end of the rod nearest...
Please explain every step in full detail with formulas included. -/1.42 points SerCP11 8.1.OP.005. 2. My...
Please explain every step in
full detail with formulas included.
-/1.42 points SerCP11 8.1.OP.005. 2. My Notes The figure be low shows a horizontal bar, of length 4.8 m, with forces acting on it. A 30 N force acts at its left end, point O, in a direction down and to the left, 45° below horizontal. A 25 N force acts at its center, point C, in a direction up and to the right, 30° to the right of vertical....
The figure below shows a person fishing with a fishing pole that makes an angle of...
The figure below shows a person fishing with a fishing pole that
makes an angle of 20.0° above the horizontal. The distance from the
person's hand to the tip of the pole is
L = 2.04 m.
A fish is on the line, and it pulls the line with a force of
F = 115 N
at an angle 37.0° below the horizontal. What is the magnitude of
the torque (in N · m) exerted by the fish about an...
Calculate the net torque (magnitude and direction) on the beam
in the figure below about the following axes. (Assume α = 43°, β =
28°, γ = 16°, ℓ = 3.6 m) (a) an axis through O perpendicular to the
page (b) an axis through C perpendicular to the page
Three forces are acting on a massless rod of length 6 m as shown
in the figure below. The rod and the forces are in the xy plane. If
α=50°, β=30°, and γ = 25°, the torque on the rod about the z-axis
(through the origin of the coordinate system at point C ) is:
A). 35.6 k Nm . B). 46.0 k Nm . C). 71.3 k Nm . D). 56.3 k
Nm
125 N 10 N 30 N
(14 points) The figure below shows the bird's eye view of three forces acting on a long, thin rod with a length of 2.40 m that can pivot about a point one-fourth of its length from one end of the rod. The moment of inertia of the rod about its pivot point is 37.8 kg.m. Forces 1 and 2 each have a magnitude of 120 N. Force 1 acts perpendicularly to the rod at the end of the rod nearest...
Please explain every step in
full detail with formulas included.
-/1.42 points SerCP11 8.1.OP.005. 2. My Notes The figure be low shows a horizontal bar, of length 4.8 m, with forces acting on it. A 30 N force acts at its left end, point O, in a direction down and to the left, 45° below horizontal. A 25 N force acts at its center, point C, in a direction up and to the right, 30° to the right of vertical....
The figure below shows a person fishing with a fishing pole that
makes an angle of 20.0° above the horizontal. The distance from the
person's hand to the tip of the pole is
L = 2.04 m.
A fish is on the line, and it pulls the line with a force of
F = 115 N
at an angle 37.0° below the horizontal. What is the magnitude of
the torque (in N · m) exerted by the fish about an...
