42 The figure shows the electric field lines for two point charges separated by a small...

Question

Question

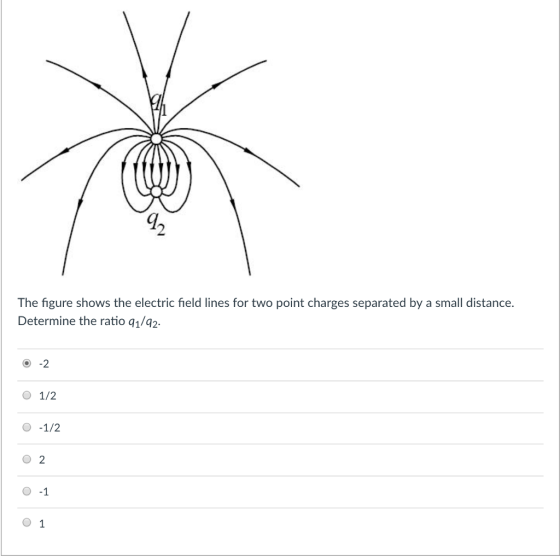

42 The figure shows the electric field lines for two point charges separated by a small distance. Determine the ratio q1/42. O 1/2 O 2 O -1 1

science physics

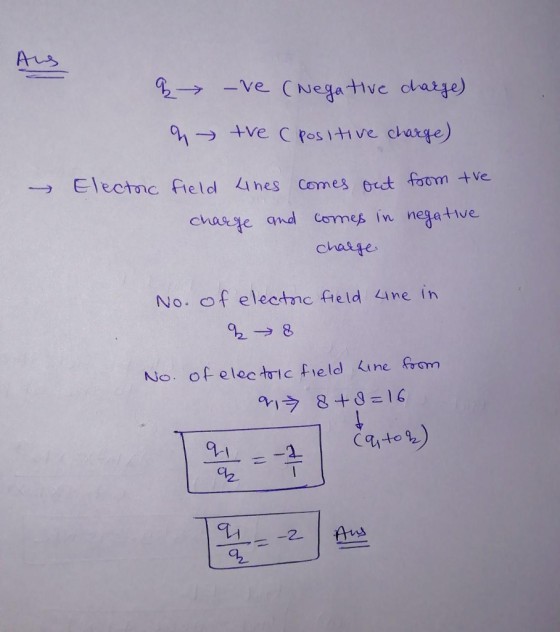

Answer 1

Answer #1

Answer 2

Similar Homework Help Questions

The figure below shows the electric field lines for two charged particles separated by a small...

The figure below shows the electric field lines for two charged particles separated by a small distance. (a) Determine the ratio q1/q2. (b) What are the signs of q1 and q2? The figure below shows the electric field lines for two charged particles separated by a small distance. Determine the ratio q1/q2. What are the signs of q1 and q2?
The figure below shows the electric field lines for two charged particles separated by a small...

The figure below shows the electric field lines for two charged particles separated by a small distance 42 91 (a) Determine the ratio 1/q2 (b) What are the signs of q1 and q2? 1Select 2 Select
The figure below shows the electric field lines for two charged particles separated by a small...

The figure below shows the electric field lines for two charged particles separated by a small distance. (a) Determine the ratio q1/q2. I have tried 1/2, 1/3, 0.333 but those are not the answers please help! The figure below shows the electric field lines for two charged particles separated by a small distance.(a) Determine the ratio q1/q2. I have tried 1/2, 1/3, 0.333 but those are not the answers please help!

Problem 30 only Figure P15.30 shows the electric field lines for two point charges separated by...

Problem 30 only Figure P15.30 shows the electric field lines for two point charges separated by a small distance. Determine the ratio q_1/q_2. What are the signs of q_1 and q_2? Sketch the electric field lines around an isolated point charge q > 0. Sketch the electric field pattern around an isolated
The figure below shows the electric field lines for two charged particles separated by a small...

The figure below shows the electric field lines for two charged particles separated by a small distance. 92 71 (a) Determine the ratio q1/q2.
Problem 15.24 (Page 410) Figure P15.24 shows the electric field lines for two point charges separated...

Problem 15.24 (Page 410) Figure P15.24 shows the electric field lines for two point charges separated by a small distance. (a) Determine the ratio gug2.(b) What are the signs of gi and q,? f2 91 D Problem 15.26 (Page 410) (a) Sketch the electric field pattern around two positive point charges of magnitude 1 JIC placed close together. (b) Sketch the electric field pattern around two negative point charges of -2 pC, placed c together. (c) Sketch the pattern around...

7. -14.32 points SerCP9 15.P.030 The figure below shows the electric field lines for two point...

7. -14.32 points SerCP9 15.P.030 The figure below shows the electric field lines for two point charges separated by a small distance 92 (a) Determine the ratio q1/qz (b) What are the signs of qi and q2? 91 is positive □ qi is negative. 92 is positive. 92 is negative. Need Help? Talk to s Tutor O Type here to search
the figure shows electric field lines near two electric point charges. if Q1=-3 nC, what is...

the figure shows electric field lines near two electric point charges. if Q1=-3 nC, what is the value of Q2? 1. The figure shows electric field lines near two electric point charges. If oi 3 nC, what is the valu of Q? a, -6 nC c, 13 nC
10. 2 points SerCP11 15.5.P.034 The figure below shows the electric field lines for two point...

10. 2 points SerCP11 15.5.P.034 The figure below shows the electric field lines for two point charges separated by a small distance. 12 91 (a) Determine the ratio q1/q2 (b) What are the signs of q1 and q2? q1 is positive. 1 is negative. 42 is positive. q2 is negative. 11. -12 points SerCP11 15.5.P.035. (a) Sketch the electric field lines around an isolated point charge q>0. (Submit a file with a maximum size of 1 MB.) Choose File No...

Electric Field Lines and Potential The figure shows the E-field in the plane of two point...

Electric Field Lines and Potential The figure shows the E-field in the plane of two point charges. Determine for each of the following statements whether it is correct or incorrect. 2 <a The E-field at 'a' points directly toward Q2. rect The net charge Q1+Q2 is negative The E-field at 'd' points south. The electric potential (volts) is larger at 'e' than 'd'. The E-field at 'c is zero. The magnitude of the E-field at 'e' is larger than at...
