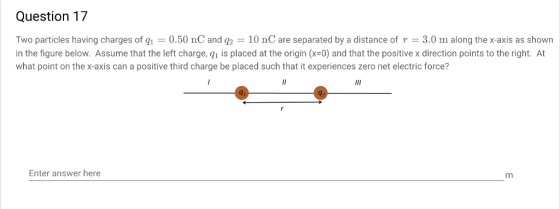

Question 17 Two particles having charges of qi = 0.50 nC and q2 = 10 nC...

Question

Question

science physics

Answer 1

Answer #1

GV 1 ONI 7 ) SOlo Taking Squa u on both sides

Answer 2

Similar Homework Help Questions

Please show work Two particles having charges of q1-0.50 nC and q2 10 nC are separated...

Please show work Two particles having charges of q1-0.50 nC and q2 10 nC are separated by a distance ofr 3 m along the x-axis as shown in the figure below. Assume that the left charge, q1 is placed at the origin (x-0) and that the positive x direction points to the right. At what point on the x-axis can a positive third charge be placed such that it experiences zero net electric force?
Two charged particles, with charges q1=q and q2=4q, are located on the x axis separated by...

Two charged particles, with charges q1=q and q2=4q, are located on the x axis separated by a distance of 2.00cm . A third charged particle, with charge q3=q, is placed on the x axis such that the magnitude of the force that charge 1 exerts on charge 3 is equal to the force that charge 2 exerts on charge 3. Find the position of charge 3 when q = 2.00 nC . Assuming charge 1 is located at the origin...
Two point charges are placed on the x axis. The first charge, q1 = 8.00 nC,...

Two point charges are placed on the x axis. The first charge, q1 = 8.00 nC, is placed a distance 16.0 m from the origin along the positive x axis; the second charge, q2 = 6.00 nC, is placed a distance -9.00 m from the origin along the negative x axis. Calculate the electric field at point A, located at coordinates (0m, 12.0m). Give the x and y components of the electric field as an ordered pair

Two particles with positive charges q1 = 0.520 nC and q2 = 7.50 nC are separated...

Two particles with positive charges q1 = 0.520 nC and q2 = 7.50 nC are separated by a distance of 1.22 m . a) At what point along the line connecting the two charges is the total electric field due to the two charges equal to zero? m from q1, between the charges
Coulomb's law for the magnitude of the force Fbetween two particles with charges Q and Q′separated by a...

Coulomb's law for the magnitude of the force Fbetween two particles with charges Q and Q′separated by a distance d is |F|=K|QQ′|d2, where K=14πϵ0, and ϵ0=8.854×10−12C2/(N⋅m2) is the permittivity of free space. Consider two point charges located on the x axis: one charge, q1 = -10.0 nC , is located at x1 = -1.750 m ;the second charge, q2 = 32.5 nC , is at the origin (x=0.0000). What is the net force exerted by these two charges on a third charge...
Coulomb's law for the magnitude of the force Fbetween two particles with charges Q and Q′separated...

Coulomb's law for the magnitude of the force Fbetween two particles with charges Q and Q′separated by a distance d is |F|=K|QQ′|d2, where K=14πϵ0, and ϵ0=8.854×10−12C2/(N⋅m2) is the permittivity of free space. Consider two point charges located on the x axis: one charge, q1 = -19.0 nC , is located at x1 = -1.715 m ; the second charge, q2 = 35.0 nC , is at the origin (x=0.0000). What is the net force exerted by these two charges on...

Two charged particles with charges Q1 = +31 nC and Q2 = -68 nC and two...

Two charged particles with charges Q1 = +31 nC and Q2 = -68 nC and two points S and P are located as shown in the diagram below. Each box in the grid is 0.50 cm by 0.50 cm. 91 92 S P A third particle with charge -47 nC and mass 1.8 mg is placed at point P and given an initial velocity of 32 m/s directly toward charge 02. It is later observed to pass through point S....
Two particles having charges of 0.590 nC and 9.44 nC are separated by a distance of...

Two particles having charges of 0.590 nC and 9.44 nC are separated by a distance of 2.00 m. At what point along the line connecting the two charges is the net electric field doe to the two charges equal to zero? Where would the net electric field be zero if one of the charges were negative? Enter your answer as a distance from the charge initially equal 0.590 nC.
Coulomb's law for the magnitude of the force (F) between two particles with charges Q and...

Coulomb's law for the magnitude of the force (F) between two particles with charges Q and Q′separated by a distance d is |F|=K|QQ′|d2, where K=14πϵ0, and ϵ0=8.854×10−12C2/(N⋅m2) is the permittivity of free space. Consider two point charges located on the x axis: one charge, q1 = -17.0 nC , is located at x1 = -1.650 m ; the second charge, q2 = 31.5 nC ,is at the origin (x=0.0000). What is the net force exerted by these two charges on...

Coulomb's law for the magnitude of the force F between two particles with charges Q and...

Coulomb's law for the magnitude of the force F between two particles with charges Q and Q′ separated by a distance d is |F|=K|QQ′|d2, where K=14πϵ0, and ϵ0=8.854×10−12C2/(N⋅m2) is the permittivity of free space. Consider two point charges located on the x axis: one charge, q1 = -16.5 nC , is located at x1 = -1.710 m ; the second charge, q2 = 39.0 nC , is at the origin (x=0.0000). Part A What is the net force exerted by...
