Question

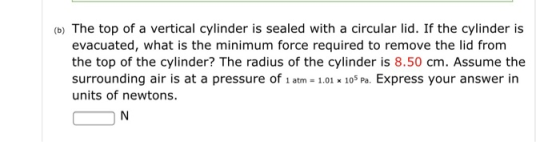

(b) The top of a vertical cylinder is sealed with a circular lid. If the cylinder is evacuated, what is the minimum force required to remove the lid from the top of the cylinder? The radius of the cylinder is 8.50 cm. Assume the surrounding air is at a pressure of 1 atm - 1.01 105 Pa. Express your answer in units of newtons.
science   physics
0 0
Add a comment Improve this question Transcribed image text
Next > < Previous
Sort answers by oldest

Homework Answers

Answer #1

Expression for area is, A = r2 Expression for pressure is, P-F F=PA = P22 =(1.01x10 Pa) 7(8.5x10 m) = 2292.5 N

0 0
Add a comment
