Laser light sent through a double slit produces an interference pattern on a screen very far...

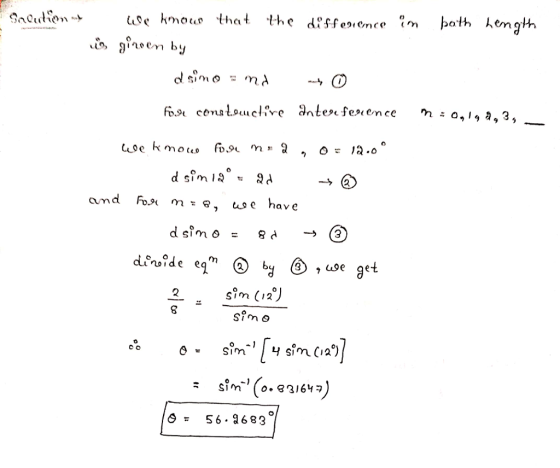

Laser light sent through a double slit produces an interference pattern on a screen very far from the slits. If the second order maximum occurs at an angle of 12.0°, at what angle does the eighth order maximum occur?
Homework Answers
Add Answer to:
Laser light sent through a double slit produces an interference
pattern on a screen very far...
Laser light sent through a double slit produces an interference pattern on a screen 3.00 m...
Laser light sent through a double slit produces an interference
pattern on a screen 3.00 m from the slits. If the seventh order
maximum occurs at an angle of 85.9 at what angle does the fifth
order maximum occur?
a.61.4
b. a maximum of fifth order does not occur
c.45.5
d.0.79
iy, ma
a double slit interference pattern is shown below A double slit interference pattern is shown below....
a double slit interference pattern is shown below
A double slit interference pattern is shown below. Assume that the angle 6pi in the figure corresponds to a distance of 4.80 mm from the central peak of the pattern, that the wavelength o the light is that of the HeNe laser. 633 nm, and that the interference pattern is being formed on a screen 2.00 m from the slits. Determine values for the slit separation d and slit width a, both...
In a Young's double-slit experiment, 586 -nm-wavelength light is sent through the slits
In a Young's double-slit experiment, 586 -nm-wavelength light is sent through the slits. A screen is held at a distance of 1.50 m from the slits. The second-order maxima appear at an angle of 2.50° from the central bright fringe. How far apart do the first-order (m=1) and second-order (m=2) maximum appear on the screen?
A laser with wavelength d/8 is shining light on a double slit with slit separation 0.500...
A laser with wavelength d/8 is shining light on a double slit with slit separation 0.500 mm . This results in an interference pattern on a screen a distance L away from the slits. We wish to shine a second laser, with a different wavelength, through the same slits. What is the wavelength λ2 of the second laser that would place its second maximum at the same location as the fourth minimum of the first laser, if d = 0.500...
A laser with wavelength d/8 is shining light on a double slit with slit separation 0.350mm...
A laser with wavelength d/8 is shining light on a double slit with slit separation 0.350mm . This results in an interference pattern on a screen a distance L away from the slits. We wish to shine a second laser, with a different wavelength, through the same slits. Part A What is the wavelength ?2 of the second laser that would place its second maximum at the same location as the fourth minimum of the first laser, if d =...
A double slit produces a diffraction pattern that is a combination of single and double slit...
A double slit produces a diffraction pattern that is a combination of single and double slit interference. Find the ratio of the width of the slits (D) to the separation between them (d), if the second minimum of the single slit pattern falls on the third-order maximum of the double slit pattern. (This will greatly reduce the intensity of the third-order maximum. Assume the central maxima of the single slit and double slit interference patterns are located at the same...
In a double-slit interference experiment the slit separation is 8.40 x 10-6 m and the slits...
In a double-slit interference experiment the slit separation is 8.40 x 10-6 m and the slits are 2.80 m from the screen. Each slit has a width of 1.20 x 10-6 m. a) An interference pattern is formed when light with a wavelength of 450 nm is shined on the slits. How far (in meters) from the center of the interference pattern on the screen do the third order (m = 3) bright fringes occur? (1.5 pts) b) If a...
Coherent light of wavelength 633 nm from a Helium Neon laser falls on a double slit...
Coherent light of wavelength 633 nm from a Helium Neon laser falls on a double slit with a slit separation of 0.103 mm. An interference pattern is produced on the screen 2.56 m away from the slits. a) how far from the central maximum is the third interference maximum? b) what about the third interference minimum?
If light consisted of classical particles and was sent through a double slit, the pattern on...
If light consisted of classical particles and was sent through a double slit, the pattern on the wall would be which of the following? a single bright fringe dependent on the size of the slit an interference pattern of light and dark fringes a large round dot a bright blob with no distinct shape If light is actually a wave that only behaves like a particle in certain situations then, when light passes through a double slit, the pattern on...
A double slit aperture is illuminated by light of wavelength 530nm and the interference pattern is...
A double slit aperture is illuminated by light of wavelength 530nm and the interference pattern is observed on a screen 5.00m away. The slits are 2.125fim width and are separated by 0.1mm. How far apart are the first and second bright fringes? How far apart are the first and second dark fringes? Determine the slit to screen distance required such that the width of the central peak of the diffraction pattern is 1 m. Why is the calculation from part...
Laser light sent through a double slit produces an interference
pattern on a screen 3.00 m from the slits. If the seventh order
maximum occurs at an angle of 85.9 at what angle does the fifth
order maximum occur?
a.61.4
b. a maximum of fifth order does not occur
c.45.5
d.0.79
iy, ma
a double slit interference pattern is shown below
A double slit interference pattern is shown below. Assume that the angle 6pi in the figure corresponds to a distance of 4.80 mm from the central peak of the pattern, that the wavelength o the light is that of the HeNe laser. 633 nm, and that the interference pattern is being formed on a screen 2.00 m from the slits. Determine values for the slit separation d and slit width a, both...
A double slit aperture is illuminated by light of wavelength 530nm and the interference pattern is observed on a screen 5.00m away. The slits are 2.125fim width and are separated by 0.1mm. How far apart are the first and second bright fringes? How far apart are the first and second dark fringes? Determine the slit to screen distance required such that the width of the central peak of the diffraction pattern is 1 m. Why is the calculation from part...
