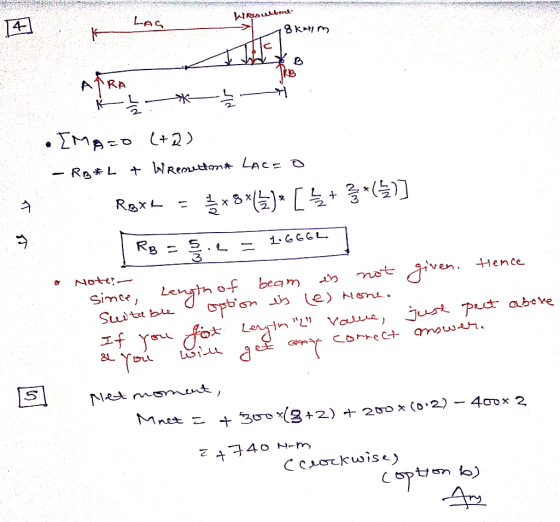

![Resuund LAC Kokm c V ATRA ...IMA=0 (+2) :- R&*L + Wreorettom* LACE O Rexh = x8*(+) [+ **)] Rg = Sie = 1.6662] since, Length o](http://img.homeworklib.com/questions/39cd2120-6e64-11ea-ae09-11178618f545.png?x-oss-process=image/resize,w_560)
Add Answer to:
4) Beam AB has a distributed load as shown and rocker supports at A and B....
AaBbc I Normal AaBbc AaBbci AaBbcc Aabi Abel ABC 1 No Spaci. Heading 1 Heading 2...

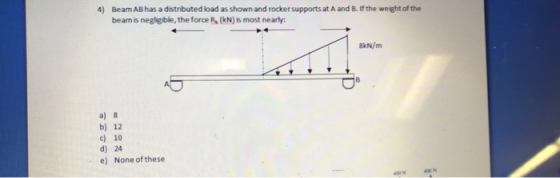

AaBbc I Normal AaBbc AaBbci AaBbcc Aabi Abel ABC 1 No Spaci. Heading 1 Heading 2 Title Subtitle Sube d) 19kN-m e) 32kN-m 4) Beam AB has a distributed load as shown and rocker supports at A and B. If the weight of the beam is negligible, the force Re (kN) is most nearly: BkN/m a) 8 b) 12 c) 10 d) 24 e) None of these 5) Find the resulting net moment on the beam to the right a)...
Q.2) A boxed beam shown below supports a uniformly distributed load w 180 N/m. Two parts of the b...
Q.2) A boxed beam shown below supports a uniformly distributed load w 180 N/m. Two parts of the beam AB and BC are connected by a pin at B. Using the integration method, find the deflection at B. Assume E = 200 GPa. 40 180 N/m 60 mm 1 m 75 mm Beam Cross-section
Q.2) A boxed beam shown below supports a uniformly distributed load w 180 N/m. Two parts of the beam AB and BC are connected by a...
Q2. A simply supported beam AB (Figure 2) supports a uniformly distributed load of q =...
Q2. A simply supported beam AB (Figure 2) supports a uniformly distributed load of q = 18kN/m and a concentrated load of P = 23kN at the centre. Consider length of the beam, L = 3m, Young's modulus, E = 200GPa and moment of inertial, I = 30 x 10 mm-. Assume the deflection of the beam can be expressed by elastic curve equations of the form: y(x) = Ax4 + Bx3 + Cx2 + Dx + E. 1) Sketch...
The beam supports the distributed load with Wmax = 6.0 kN/m as shown. The reactions at the supports A and B are vertical.
The beam supports the distributed load with Wmax = 6.0 kN/m as shown. The reactions at the supports A and B are vertical. Part A Determine the resultant internal loadings acting on the cross section at point C.
The beam supports the distributed load with wmax 6.0 kN/m as shown. The reactions at the...
The beam supports the distributed load with wmax 6.0 kN/m as shown. The reactions at the supports A and B are vertical. We 1.5 m 1.5 m
A beam supports a variably distributed load as shown in Figure 3. Given a pin support...
A beam supports a variably distributed load as shown in Figure 3. Given a pin support at A, and a roller support at B, calculate the support reactions. Lw 6 kN/m lw 2 kN/m 2 m Figure 3 Beam supporting a variably distributed load
A continuous beam ABC shown in Figure 2 is fixed at A. Supports at B and C are rollers. A uniform distributed load 40kN...
A continuous beam ABC shown in Figure 2 is fixed at A. Supports at B and C are rollers. A uniform distributed load 40kN/m is applied force acts downward on the span of BC as shown in Figure 2. The EI of the beam is over the span of AB and a 60kN constant (a) Determine the internal moments at A and B using the slope-deflection method [10 marks] (b) Draw the bending values of bending (c) Sketch the deformed...
Problem 1.9 The beam supports the distributed load with Wmax 3.2 kN/m as shown. The reactions...
Problem 1.9 The beam supports the distributed load with Wmax 3.2 kN/m as shown. The reactions at the supports A and B are vertical. .5 m .5 m PartA Determine the resultant internal loadings acting on the cross section at point D Express your answers, separated by commas, to three significant figures. kN, kN, kN.m Submit Request Answer
Hw0642 Internal- The beam is subjected to the distributed loads shown and supported by a rocker...
Hw0642 Internal- The beam is subjected to the distributed loads shown and supported by a rocker at C and a pin at A. Point D is located half way between A and B. Point E is located half way between B and C. Make sure all internal effects (A, V, & M) on FBD's are drawn in the assumed positive direction Represent distributed loads as an equivalent point load, no need to solve for internal effects. 200 N/m 100 N/m...
The beam supports the distributed load with wmax=3.6 kN/mwmax=3.6 kN/m as shown. The reactions at the...
The beam supports the distributed load with wmax=3.6
kN/mwmax=3.6 kN/m as shown. The reactions at the supports AA and BB
are vertical.
Determine the resultant internal loadings acting on the cross
section at point C.
Nc=?,Vc=?,Mc=?
-- 1.5 m - 3 m — 1.5 m
AaBbc I Normal AaBbc AaBbci AaBbcc Aabi Abel ABC 1 No Spaci. Heading 1 Heading 2 Title Subtitle Sube d) 19kN-m e) 32kN-m 4) Beam AB has a distributed load as shown and rocker supports at A and B. If the weight of the beam is negligible, the force Re (kN) is most nearly: BkN/m a) 8 b) 12 c) 10 d) 24 e) None of these 5) Find the resulting net moment on the beam to the right a)...
Q.2) A boxed beam shown below supports a uniformly distributed load w 180 N/m. Two parts of the beam AB and BC are connected by a pin at B. Using the integration method, find the deflection at B. Assume E = 200 GPa. 40 180 N/m 60 mm 1 m 75 mm Beam Cross-section
Q.2) A boxed beam shown below supports a uniformly distributed load w 180 N/m. Two parts of the beam AB and BC are connected by a...
Q2. A simply supported beam AB (Figure 2) supports a uniformly distributed load of q = 18kN/m and a concentrated load of P = 23kN at the centre. Consider length of the beam, L = 3m, Young's modulus, E = 200GPa and moment of inertial, I = 30 x 10 mm-. Assume the deflection of the beam can be expressed by elastic curve equations of the form: y(x) = Ax4 + Bx3 + Cx2 + Dx + E. 1) Sketch...
The beam supports the distributed load with wmax 6.0 kN/m as shown. The reactions at the supports A and B are vertical. We 1.5 m 1.5 m
A beam supports a variably distributed load as shown in Figure 3. Given a pin support at A, and a roller support at B, calculate the support reactions. Lw 6 kN/m lw 2 kN/m 2 m Figure 3 Beam supporting a variably distributed load
A continuous beam ABC shown in Figure 2 is fixed at A. Supports at B and C are rollers. A uniform distributed load 40kN/m is applied force acts downward on the span of BC as shown in Figure 2. The EI of the beam is over the span of AB and a 60kN constant (a) Determine the internal moments at A and B using the slope-deflection method [10 marks] (b) Draw the bending values of bending (c) Sketch the deformed...
Problem 1.9 The beam supports the distributed load with Wmax 3.2 kN/m as shown. The reactions at the supports A and B are vertical. .5 m .5 m PartA Determine the resultant internal loadings acting on the cross section at point D Express your answers, separated by commas, to three significant figures. kN, kN, kN.m Submit Request Answer
Hw0642 Internal- The beam is subjected to the distributed loads shown and supported by a rocker at C and a pin at A. Point D is located half way between A and B. Point E is located half way between B and C. Make sure all internal effects (A, V, & M) on FBD's are drawn in the assumed positive direction Represent distributed loads as an equivalent point load, no need to solve for internal effects. 200 N/m 100 N/m...
The beam supports the distributed load with wmax=3.6
kN/mwmax=3.6 kN/m as shown. The reactions at the supports AA and BB
are vertical.
Determine the resultant internal loadings acting on the cross
section at point C.
Nc=?,Vc=?,Mc=?
-- 1.5 m - 3 m — 1.5 m
