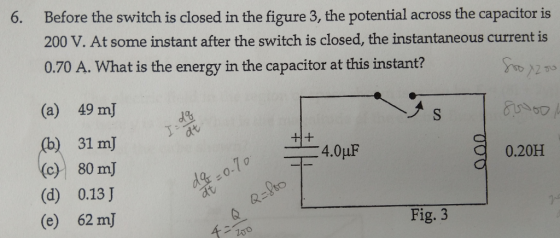

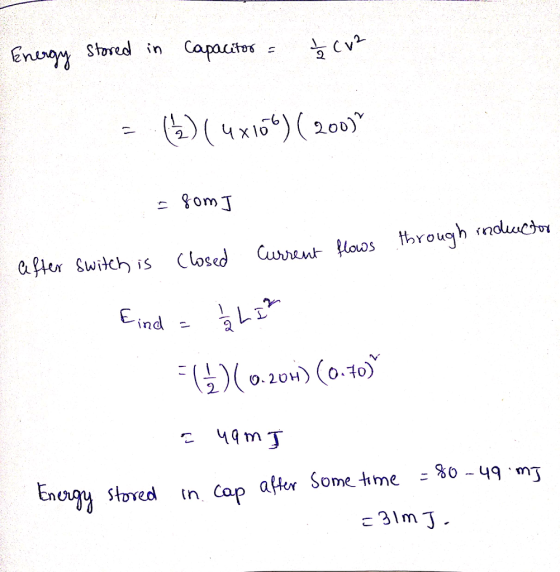

A 10.0-uF capacitor is plugged into a 110 V-rms 60.0-Hz voltage source, with an ammeter in series. Show that the rms current through the capacitor is 0.415 A. Before the switch is closed in the figure, the potential across the capacitor is 200 V. At some instant after the switch is closed, the instantaneous current is 0.70 A. Show that the energy in the capacitor at this instant is 31 milliJoules. s 4.0 uF 0.20 H
The initial voltage across the capacitor is 0 V. At time t=0, the switch is closed
The initial voltage across the capacitor is 0 V. At time t=0, the switch is closed a) What is the time constant for this circuit? b) What is the final voltage across the 50 capacitor? c) What is the expression for the voltage across the 50 capacitor? d) Sketch the waveform for . e) What is the maximum instantaneous current that will flow through the capacitor? f) When will the voltage reach 5.0 V?
switch R, -2.00x10' * Ar the capacitor is unchanged and the switch is closed in the...
switch R, -2.00x10' * Ar the capacitor is unchanged and the switch is closed in the circuit shown to the right. Think carefully before doing and calculations for each of the following pans. Find the current th a t the instant after the switch is closed 8-20.00 b) Find the current thru Rj a long time after the switch is closed. e) Find the voltage across the capacitor a long time after the switch is closed d) The switch is...
What is the voltage across the capacitor immediately after the switch S is closed? At that...
What is the voltage across the capacitor immediately after the
switch S is closed? At that instant,
what current flows out of the battery?
100 10.02 12.0 V' C= 1.5uF ২9.02 5.0 )
2 AT TIME to THE VOLTAGE Across THE CAPACITOR IS lov. IF THE SWITCH IS CLOSED...
2 AT TIME to THE VOLTAGE Across THE CAPACITOR IS lov. IF THE SWITCH IS CLOSED AT THIS TIME Fo% a) MAX ENERGY STORED BY Cup. b) MAX ENERGY STORED BY INDUCTOR, K c) "TIMO AFTER SWITCH IS CLOSED WHEN INDULTOR STOROS MAX. ENERGY. * LEIRST TIME) d) Max CURRENT IN CIRCUITO 1. e) FIRST TIME THIS CURRENT occURES. c=20mF L=5H leu
Consider the circuit depicted in Fig. 2. The switch SW1 has been closed for a long time before it...
Consider the circuit depicted in Fig. 2. The switch SW1 has been closed for a long time before it is opened at time t = 0. The switch SW2 has been open for a long time before it is closed att = 0.1 (sec). i) Find the initial current I(0) flowing in the inductor and the initial voltage V(0) across the capacitor. ii) Find the voltage V(t) across the capacitor and the current I(t) through the inductor for 0 ≤ t ≤...
Quick Quiz 28.4 With the switch in the circuit of Figure 28.5 closed (left). there is...
Quick Quiz 28.4 With the switch in the circuit of Figure 28.5 closed (left). there is no current in R. because the current has an alternate zero-resistance path through the switch. There is current in R, and this current is measured with the amme- ter a device for measuring current) at the right side of the circuit. If the switch is opened (Fig. 28.5. right). there is current in Ry. What happens to the reading on the ammeter when the...
Problem 3: S is initially open and the potential difference across the capacitor is 80 V....
Problem 3: S is initially open and the potential difference across the capacitor is 80 V. If the switch is closed at t=0, find q on C when I = 33 x 10-6A. 22uF 1.5 M2
Question 23 1 pts A B 6V switch open w Figure 6 What is the potential...
Question 23 1 pts A B 6V switch open w Figure 6 What is the potential difference in volts across Rp in Fig. 6? Question 24 1 pts Indicate your reasoning for your answer to problem 23. Question 30 1 pts A B + 6V switch M closed F Figure 7 To one d.p., what is the current in amps flowing through the battery in Fig. 7? Question 31 1 pts Indicate your reasoning for your answer to problem 30....

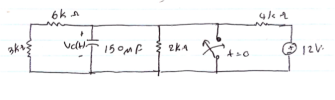

What is the voltage across the capacitor just before the switch is closed Vc(0-)? 6km qkh...
What is the voltage across the capacitor just before the
switch is closed Vc(0-)?
6km qkh VGHT 3km JWo1 F16 十-0 12V
step by step plase
A 10.0-uF capacitor is plugged into a 110 V-rms 60.0-Hz voltage source, with an ammeter in series. Show that the rms current through the capacitor is 0.415 A. Before the switch is closed in the figure, the potential across the capacitor is 200 V. At some instant after the switch is closed, the instantaneous current is 0.70 A. Show that the energy in the capacitor at this instant is 31 milliJoules. s 4.0 uF 0.20 H
switch R, -2.00x10' * Ar the capacitor is unchanged and the switch is closed in the circuit shown to the right. Think carefully before doing and calculations for each of the following pans. Find the current th a t the instant after the switch is closed 8-20.00 b) Find the current thru Rj a long time after the switch is closed. e) Find the voltage across the capacitor a long time after the switch is closed d) The switch is...
What is the voltage across the capacitor immediately after the
switch S is closed? At that instant,
what current flows out of the battery?
100 10.02 12.0 V' C= 1.5uF ২9.02 5.0 )
2 AT TIME to THE VOLTAGE Across THE CAPACITOR IS lov. IF THE SWITCH IS CLOSED AT THIS TIME Fo% a) MAX ENERGY STORED BY Cup. b) MAX ENERGY STORED BY INDUCTOR, K c) "TIMO AFTER SWITCH IS CLOSED WHEN INDULTOR STOROS MAX. ENERGY. * LEIRST TIME) d) Max CURRENT IN CIRCUITO 1. e) FIRST TIME THIS CURRENT occURES. c=20mF L=5H leu
Quick Quiz 28.4 With the switch in the circuit of Figure 28.5 closed (left). there is no current in R. because the current has an alternate zero-resistance path through the switch. There is current in R, and this current is measured with the amme- ter a device for measuring current) at the right side of the circuit. If the switch is opened (Fig. 28.5. right). there is current in Ry. What happens to the reading on the ammeter when the...
Problem 3: S is initially open and the potential difference across the capacitor is 80 V. If the switch is closed at t=0, find q on C when I = 33 x 10-6A. 22uF 1.5 M2
Question 23 1 pts A B 6V switch open w Figure 6 What is the potential difference in volts across Rp in Fig. 6? Question 24 1 pts Indicate your reasoning for your answer to problem 23. Question 30 1 pts A B + 6V switch M closed F Figure 7 To one d.p., what is the current in amps flowing through the battery in Fig. 7? Question 31 1 pts Indicate your reasoning for your answer to problem 30....
What is the voltage across the capacitor just before the
switch is closed Vc(0-)?
6km qkh VGHT 3km JWo1 F16 十-0 12V
