An electric motor of mass 330 kg is located 1.0 m from one end of a...

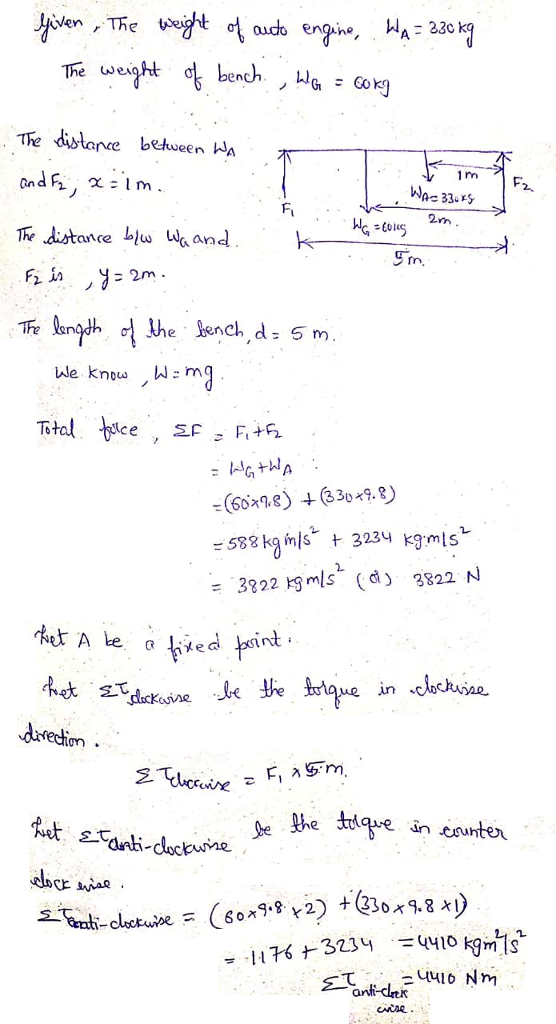

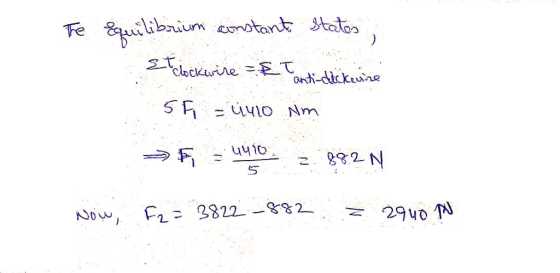

An electric motor of mass 330 kg is located 1.0 m from one end of a 5.0 m workbench. If the uniform bench has a mass of 60 kg, what weight must each end of the bench support?
Homework Answers
