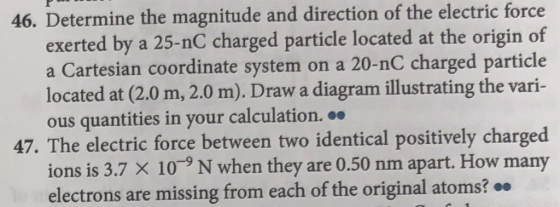

46 and 47 Please, 46. Determine the magnitude and direction of the electric force exerted by...

Question

Question

46 and 47 Please,

science physics

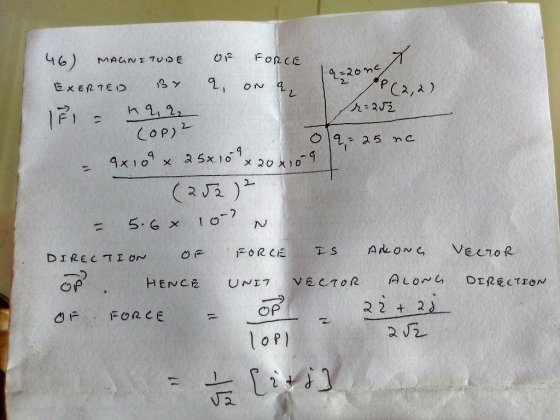

Answer 1

Answer #1

Answer 2
