An object is placed to the left of a thin converging lens with a focal length...

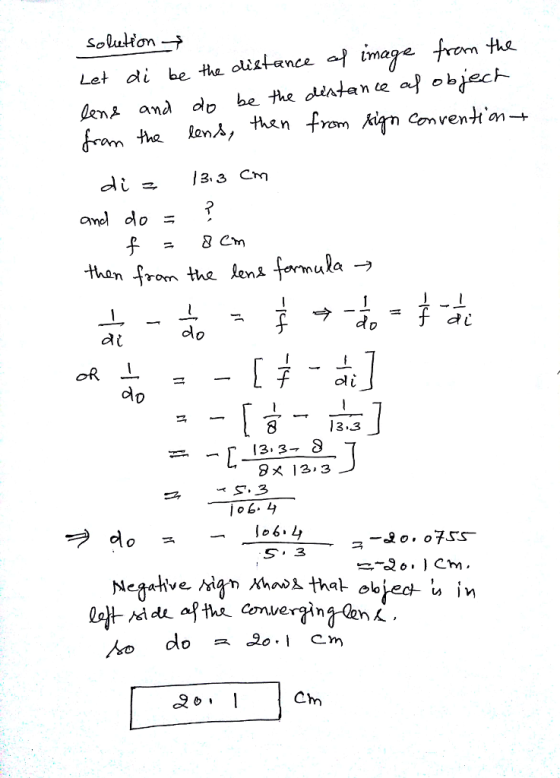

An object is placed to the left of a thin converging lens with a focal length of 8 cm. A real and inverted image is formed 13.3 cm to the right of the lens. What is the distance of the object from the lens?
20.1 cm
13.3 cm
5.00 cm
0.20 cm
Homework Answers
Add Answer to:
An object is placed to the left of a thin converging lens with a
focal length...
An object 2.02 cm high is placed 40.2 cm to the left of a converging lens having a focal length o...
An object 2.02 cm high is placed 40.2 cm to the left of a converging lens having a focal length of 30.5 cm. A diverging lens with a focal length of-20.0 cm is placed 110 cm to the right of the converging lens. (a) Determine the position of the final image. distance location to the right , of the diverging lens (b) Determine the magnification of the final image 128.4 Your response differs from the correct answer by more than...
A 5.00-cm tall candle is placed 50.0 cm to the left of a thin converging lens...
A 5.00-cm tall candle is placed 50.0 cm to the left of a thin converging lens that has a focal length of 15.0 cm. To the right of the lens, 30.0cm away, another converging lens (focal length 20.0cm) is placed. Determine type (real/virtual), orientation (upright/inverted), location (with respect to the second lens) and height of the final image formed by the light as it passes through both lenses.
A 5.00-cm tall candle is placed 50.0 cm to the left of a thin converging lens...
A 5.00-cm tall candle is placed 50.0 cm to the left of a thin converging lens that has a focal length of 15.0 cm. To the right of the lens, 30.0cm away, another converging lens (focal length 20.0cm) is placed. Determine type (real/virtual), orientation (upright/inverted), location (with respect to the second lens) and height of the final image formed by the light as it passes through both lenses.
An object is placed 15.0 cm to the left of a convex (converging) lens of focal...
An object is placed 15.0 cm to the left of a convex (converging) lens of focal length 20.0 cm. The image of this object is located (Figure out if the image is real or virtual, it will help to locate the image] O 60.0 cm to the left of the lens. O 60.0 cm to the right of the lens. O 8.57 cm to the right of the lens. O 8.57 cm to the left of the lens. Question 8...
A small object is placed 25.0 cm from a converging lens of focal length 40.0 cm....
A small object is placed 25.0 cm from a converging lens of focal length 40.0 cm. The object is to the left of the lens. Where is the image? A- 17cm to the right of the lens B- 25cm to the left of the lens C- 17 cm to the left of the lens D-25 cm to the right of the lens E-67cm to the right of the lens F-67 cm to the left of the lens A small object...
An object is on the left side of a thin converging lens. The object is located...
An object is on the left side of a thin converging lens. The object is located at a distance of 6 cm away from a thin converging lens with focal length of 2 cm. Use the thin lens equation (1/f = 1/s' + 1/s) to predict the following: (a) Location of the image? (b) Magnification of the image (including inverted versus non-inverted)? (c) Real or virtual? Draw diagram please!
2. A thin converging lens has a focal length of 10.0 cm. An object is placed...
2. A thin converging lens has a focal length of 10.0 cm. An object is placed 30.0 cm from this lens. Use a sheet of the graph paper provided at the back of this manual to draw a ray diagram that shows the image formed by this lens. Use any two of the three principal (or special) rays and an appropriate scale. Hint: you could let 1 cm on your ray diagram represent 5 cm of the actual measurements:this scale...
A 1.00-cm-high object is placed 4.85 cm to the left of a converging lens of focal...
A 1.00-cm-high object is placed 4.85 cm to the left of a converging lens of focal length 8.20 cm. A diverging lens of focal length - 16.00 cm is 6.00 cm to the right of the converging lens. Find the position and height of the final image. position cm height cm Is the image inverted or upright? O upright inverted Is the image real or virtual? Oreal virtual
An object is placed 45 cm to the left of a converging lens of focal length...
An object is placed 45 cm to the left of a converging lens of focal length 17 cm. A diverging lens of focal length −29 cm is located 11 cm to the right of the first lens. (Consider the lenses as thin lenses). a) Where is the final image with respect to the second lens?cm b) What is the linear magnification of the final image?
2. A thin converging lens has a focal length of 10.0 cm. An object is placed...
2. A thin converging lens has a focal length of 10.0 cm. An object is placed 30.0 cm from this lens. Use a sheet of the graph paper provided at the back of this manual to draw a ray diagram that shows the image formed by this lens. Use any two of the three principal (or special) rays and an appropriate scale. Hint: you could let I cm on your ray diagram represent 5 cm of the actual measurements:this scale...
An object 2.02 cm high is placed 40.2 cm to the left of a converging lens having a focal length of 30.5 cm. A diverging lens with a focal length of-20.0 cm is placed 110 cm to the right of the converging lens. (a) Determine the position of the final image. distance location to the right , of the diverging lens (b) Determine the magnification of the final image 128.4 Your response differs from the correct answer by more than...
A 5.00-cm tall candle is placed 50.0 cm to the left of a thin converging lens that has a focal length of 15.0 cm. To the right of the lens, 30.0cm away, another converging lens (focal length 20.0cm) is placed. Determine type (real/virtual), orientation (upright/inverted), location (with respect to the second lens) and height of the final image formed by the light as it passes through both lenses.
A 5.00-cm tall candle is placed 50.0 cm to the left of a thin converging lens that has a focal length of 15.0 cm. To the right of the lens, 30.0cm away, another converging lens (focal length 20.0cm) is placed. Determine type (real/virtual), orientation (upright/inverted), location (with respect to the second lens) and height of the final image formed by the light as it passes through both lenses.
An object is placed 15.0 cm to the left of a convex (converging) lens of focal length 20.0 cm. The image of this object is located (Figure out if the image is real or virtual, it will help to locate the image] O 60.0 cm to the left of the lens. O 60.0 cm to the right of the lens. O 8.57 cm to the right of the lens. O 8.57 cm to the left of the lens. Question 8...
A small object is placed 25.0 cm from a converging lens of focal length 40.0 cm. The object is to the left of the lens. Where is the image? A- 17cm to the right of the lens B- 25cm to the left of the lens C- 17 cm to the left of the lens D-25 cm to the right of the lens E-67cm to the right of the lens F-67 cm to the left of the lens A small object...
2. A thin converging lens has a focal length of 10.0 cm. An object is placed 30.0 cm from this lens. Use a sheet of the graph paper provided at the back of this manual to draw a ray diagram that shows the image formed by this lens. Use any two of the three principal (or special) rays and an appropriate scale. Hint: you could let 1 cm on your ray diagram represent 5 cm of the actual measurements:this scale...
A 1.00-cm-high object is placed 4.85 cm to the left of a converging lens of focal length 8.20 cm. A diverging lens of focal length - 16.00 cm is 6.00 cm to the right of the converging lens. Find the position and height of the final image. position cm height cm Is the image inverted or upright? O upright inverted Is the image real or virtual? Oreal virtual
2. A thin converging lens has a focal length of 10.0 cm. An object is placed 30.0 cm from this lens. Use a sheet of the graph paper provided at the back of this manual to draw a ray diagram that shows the image formed by this lens. Use any two of the three principal (or special) rays and an appropriate scale. Hint: you could let I cm on your ray diagram represent 5 cm of the actual measurements:this scale...
