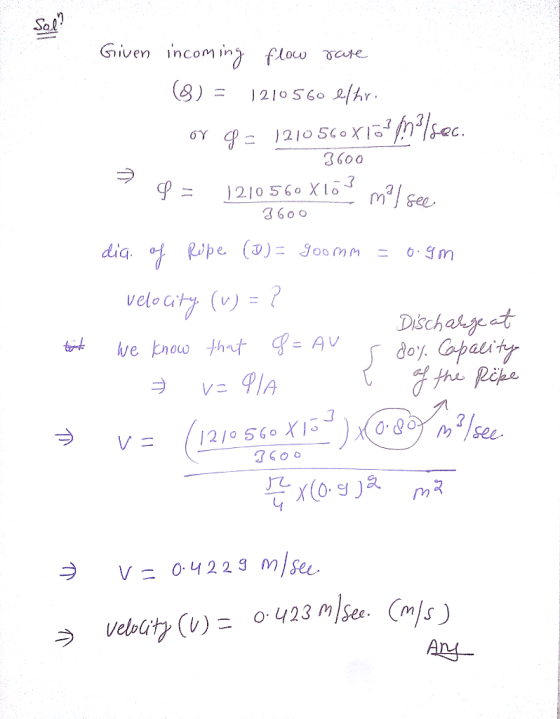

A storm culvert pipe of 30m has an incoming flow rate of 1210560 litres an hour....
Homework Answers
Add Answer to:
A
storm culvert pipe of 30m has an incoming flow rate of 1210560
litres an hour....
An engineer has recently driven his car into a culvert during a storm and has completely damaged his car. In an effort to ensure that this does not happen again, he wants to petition to the town’s cou...
An engineer has recently driven his car into a culvert during a storm and has completely damaged his car. In an effort to ensure that this does not happen again, he wants to petition to the town’s council to redesign the culvert to appropriately accommodate the storm design flowrate of 4 m3/s. The headwater depth should be 2 m and the tailwater depth should be no greater than the height of his car (1 m), the length of culvert is...
7. (15 points) Determine (a) the flow rate (Q), and (b) the size of storm sewer...
7. (15 points) Determine (a) the flow rate (Q), and (b) the size of storm sewer pipe to order to accommodate the 2-year storm runoff from two adjacent catchments in Fairfax County (IDF Attached), given the following information: Zone Runoff Coefficient (C) Area (Ac) | Time Concentration (min) Manning-n Slope pipe (2-3) Pipe (1-2) travel time | #1 0.8 12 26 0.011 0.5% 14 #2 0.2 18 3 1 min (a) Flow rate (Q) = ft/sec (b) Pipe Diameter =
Calculate the volumetric flow rate of water through the pipe with inside diameter = 0.2m fitted...
Calculate the volumetric flow rate of water through the pipe with inside diameter = 0.2m fitted with an orifice plate contains a concentric hole of diameter = 0.15 m. The head differential across the orifice plate is 3.4 m and the discharge coefficient =0.6 Select one: O a. 0.2944 m3/s O b. 0.1567 m/s O c.0.1048 m/s O d. 0.3011 m/s O e. 0.1296 m/s
1) Consider the schematic diagram below. If the pump supplies 225kW to the water, what flow rate ...
1) Consider the schematic diagram below. If the pump supplies 225kW to the water, what flow rate will occur in the pipes? Pump 1 has length 450m and diameter 200mm. Pipe Π has length of 450m and diameter of 250mm. Assume a friction factor of f-0.02 for both pipes. gnore all minor losses and the losses in the pipe upstream of the pump. (ans. Q,-0.1 m3/s, Q1-0.175m3/s) RL-90m RL=30m >Pipe Pump Water Pipe II
1) Consider the schematic diagram below....
QUESTION 2 Refer to the figure below. Assume a 2 m, b 6 m, and the flow is frictionless in the siphon pipe. Find th...
QUESTION 2 Refer to the figure below. Assume a 2 m, b 6 m, and the flow is frictionless in the siphon pipe. Find the discharge in m /s and the pressure head at Bif the siphon pipe has a uniform diameter of 140 mm. (15 marks) B M K N Doc-
QUESTION 2 Refer to the figure below. Assume a 2 m, b 6 m, and the flow is frictionless in the siphon pipe. Find the discharge in m...
A Venturi meter equipped with a differential pressure gage is used to measure the flow rate...
A Venturi meter equipped with a differential pressure gage is used to measure the flow rate of water at 15°C (p = 999.1 kg/m”) through a 5-cm- diameter horizontal pipe. The diameter of the Venturi neck is 3 cm, and the measured pressure drop is 5.1 kPa. Taking the discharge coefficient to be 0.98, determine the volume flow rate of water and the average velocity through the pipe. 5 cm 3 cm Differential pressure gage Is The volume flow rate...
A venturi meter was installed in a pipe to measure the flow of the water inside....
A venturi meter was installed in a pipe to measure the flow of the water inside. The inlet diameter of the venturi is 25.4mm and the throat diameter is 12.7mm. Determine the actual flow rate in gpm if the throat Reynolds number is 10^5. The density and viscosity of the fluid is 62.4 Ibm/ft^3 and 3.511kg/m-hr, respectively. The venturi coefficient of discharge is 0.95.( do include unit/s in your answer and use two decimal places)
Q1. (a) For a flow phenomenon governed mainly by viscous forces, derive the scale factors for...
Q1. (a) For a flow phenomenon governed mainly by viscous forces, derive the scale factors for velocity, force and power in terms of 24, , and I, where subscripts L, p and u are length, density and dynamic viscosity respectively and is the ratio of the value of "x" in the prototype to the value of "x" in the model. [4 marks) (b) Volumetric flow rate (discharge) Q through a circular pipe with diameter D can be measured by measuring...
A pipe caring water with volumetric flow rate 0.6 m3/s branches into five pipes. The first...
A pipe caring water with volumetric flow rate 0.6 m3/s branches into five pipes. The first pipe is (diameter=33Cm and velocity=1.3m/s), the second pipe is (diameter=32Cm), the third pipe is (diameter=26Cm and velocity=1.8m/s), the fourth pipe is (diameter=28Cm and velocity=2.2m/s), while the fifth pipe is (diameter=25Cm and velocity=2m/s). Find the velocity in the second pipe. Density of water=1000kg/m3. Select one: O a. 1.982 m/s Ob. 1.883 m/s O c. 2.014 m/s O d. 2.121 m/s O e. 2.231 m/s
Determine the mass flow rate of water through a pipe with a diameter of 3.3 cm...
Determine the mass flow rate of water through a pipe with a diameter of 3.3 cm when speed at which water travels through the pipe is 1.5 m/s. kg/s
7. (15 points) Determine (a) the flow rate (Q), and (b) the size of storm sewer pipe to order to accommodate the 2-year storm runoff from two adjacent catchments in Fairfax County (IDF Attached), given the following information: Zone Runoff Coefficient (C) Area (Ac) | Time Concentration (min) Manning-n Slope pipe (2-3) Pipe (1-2) travel time | #1 0.8 12 26 0.011 0.5% 14 #2 0.2 18 3 1 min (a) Flow rate (Q) = ft/sec (b) Pipe Diameter =
Calculate the volumetric flow rate of water through the pipe with inside diameter = 0.2m fitted with an orifice plate contains a concentric hole of diameter = 0.15 m. The head differential across the orifice plate is 3.4 m and the discharge coefficient =0.6 Select one: O a. 0.2944 m3/s O b. 0.1567 m/s O c.0.1048 m/s O d. 0.3011 m/s O e. 0.1296 m/s
1) Consider the schematic diagram below. If the pump supplies 225kW to the water, what flow rate will occur in the pipes? Pump 1 has length 450m and diameter 200mm. Pipe Π has length of 450m and diameter of 250mm. Assume a friction factor of f-0.02 for both pipes. gnore all minor losses and the losses in the pipe upstream of the pump. (ans. Q,-0.1 m3/s, Q1-0.175m3/s) RL-90m RL=30m >Pipe Pump Water Pipe II
1) Consider the schematic diagram below....
QUESTION 2 Refer to the figure below. Assume a 2 m, b 6 m, and the flow is frictionless in the siphon pipe. Find the discharge in m /s and the pressure head at Bif the siphon pipe has a uniform diameter of 140 mm. (15 marks) B M K N Doc-
QUESTION 2 Refer to the figure below. Assume a 2 m, b 6 m, and the flow is frictionless in the siphon pipe. Find the discharge in m...
A Venturi meter equipped with a differential pressure gage is used to measure the flow rate of water at 15°C (p = 999.1 kg/m”) through a 5-cm- diameter horizontal pipe. The diameter of the Venturi neck is 3 cm, and the measured pressure drop is 5.1 kPa. Taking the discharge coefficient to be 0.98, determine the volume flow rate of water and the average velocity through the pipe. 5 cm 3 cm Differential pressure gage Is The volume flow rate...
A venturi meter was installed in a pipe to measure the flow of the water inside. The inlet diameter of the venturi is 25.4mm and the throat diameter is 12.7mm. Determine the actual flow rate in gpm if the throat Reynolds number is 10^5. The density and viscosity of the fluid is 62.4 Ibm/ft^3 and 3.511kg/m-hr, respectively. The venturi coefficient of discharge is 0.95.( do include unit/s in your answer and use two decimal places)
Q1. (a) For a flow phenomenon governed mainly by viscous forces, derive the scale factors for velocity, force and power in terms of 24, , and I, where subscripts L, p and u are length, density and dynamic viscosity respectively and is the ratio of the value of "x" in the prototype to the value of "x" in the model. [4 marks) (b) Volumetric flow rate (discharge) Q through a circular pipe with diameter D can be measured by measuring...
A pipe caring water with volumetric flow rate 0.6 m3/s branches into five pipes. The first pipe is (diameter=33Cm and velocity=1.3m/s), the second pipe is (diameter=32Cm), the third pipe is (diameter=26Cm and velocity=1.8m/s), the fourth pipe is (diameter=28Cm and velocity=2.2m/s), while the fifth pipe is (diameter=25Cm and velocity=2m/s). Find the velocity in the second pipe. Density of water=1000kg/m3. Select one: O a. 1.982 m/s Ob. 1.883 m/s O c. 2.014 m/s O d. 2.121 m/s O e. 2.231 m/s
Determine the mass flow rate of water through a pipe with a diameter of 3.3 cm when speed at which water travels through the pipe is 1.5 m/s. kg/s
