Determine the maximum deflection of the cantilevered beam

Question

Question

Part A

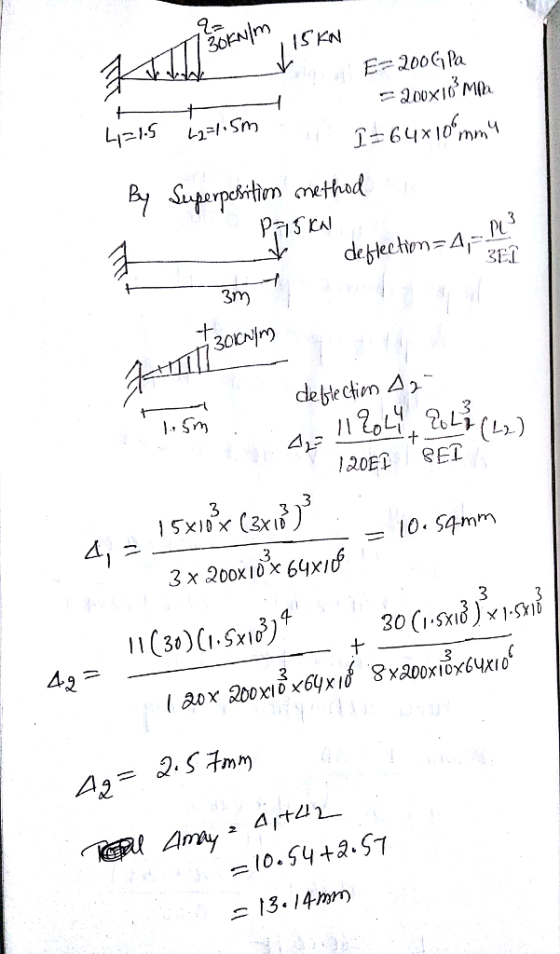

Determine the maximum deflection of the cantilevered beam. The beam is made of material having an E=200 GPa and I = 64(10⁶)mm⁶

Express your answer with the appropriate units.

engineering Civil-Engineering

Answer 1

Answer #1

Answer 2

Similar Homework Help Questions

Determine the deflection at of the overhang beam E = 200 GPa and I = 41.6 (106) mm4 (Figure 1)

Part A Determine the deflection at of the overhang beam E = 200 GPa and I = 41.6 (106) mm4 (Figure 1) Express your answer with the appropriate units.
Determine the deflection at C of the overhang beam. E = 200 GPa and I = 47.2 (106) mm4. (Figure 1)

Determine the deflection at C of the overhang beam. E = 200 GPa and I = 47.2 (106) mm4. (Figure 1) Express your answer with the appropriate units.
E = 170 GPa and I = 65.0(106) mm4. (Figure 1)

E = 170 GPa and I = 65.0(106) mm4. (Figure 1)Part A Determine the slope of end A of the cantilevered beam. Express your answer to three significant figures and include the appropriate units.Part B Determine the deflection of end A of the cantilevered beam. Express your answer to three significant figures and include the appropriate units.

Beam Deflection--Superposition Method The W8x48 cantilevered beam is 10 kip made of A-36 steel. Determine the...

Beam Deflection--Superposition Method The W8x48 cantilevered beam is 10 kip made of A-36 steel. Determine the deflection at its end A. 15 kipi 60 PEARSON Speed 00:39 / 13.00 info CC For the beam deflection problem given in the video, the method of superposition is used to: determine the maximum deflection determine the maximum slope of the elastic deflection curve determine both the maximum deflection and the maximum slope of the elastic deflection curve none of the above Submit Request...
3.) Determine the maximum deflection and the maximum slope for beam shown below using either the...

3.) Determine the maximum deflection and the maximum slope for beam shown below using either the moment area method or the conjugate beam method. (25P) 120 kN A AE ー10m ㅡㅡ 5 m EI constant E -200 GPa 1 = 700(106) mnm4
Problem 12.124 Part A Before the uniform distributed load is applied on the beam, there is...

Problem 12.124 Part A Before the uniform distributed load is applied on the beam, there is a small gap of 0.2 mm between the beam and the post at B. The post at B has a diameter of 40 mm, and the moment of inertia of the beam is I = 875 (106) mm. The post and the beam are made of material having a modulus of elasticity of E = 200 GPa. Determine the support reaction at A. Take...

Determine the equations for deflection (y) and slope (θ) as a function of x for the beam below.

Part II: Problem 6 Determine the equations for deflection (y) and slope (θ) as a function of x for the beam below. What is the deflection at A and the slope at A when E = 200 GPa and I=65.0 (106) mm4?
Consider the beam shown in (Figure 1). E = 200 GPa and I = 62(106) mm...

Consider the beam shown in (Figure 1). E = 200 GPa and I = 62(106) mm 4 Figure 1 of 1 40 KN 18 kN.m Part A Determine the slope of the beam at B, measured counterclockwise from the positive x axis. Express your answer using three significant figures. V AED 11 vec t o Bera ? OB rad Submit Request Answer Part B Determine the deflection of the beam at C. Express your answer to three significant figures and...
Determine the slope at A of the overhang beam. E = 200 GPa and I = 40.7(106)mm4

Determine the slope at A of the overhang beam. E = 200 GPa and I = 40.7(106)mm4Express your answer with the appropriate units.
