Homework Answers
Conserving energy we have
at point B
1/2 M V^2 = M*g*H g=9.8 m/s^2
Vb = sqrt(2*g*H) = 28 m/s no vertical component at B
at point C
Vc = sqrt(2*g*(H-25)) = 17.146 m/s
horizontal component = Vc*cos(37) = 13.17 m/s
vertical component = Vc*sin(37) = 10.287 m/s
Please Upvote if you like the answer!!
Add Answer to:

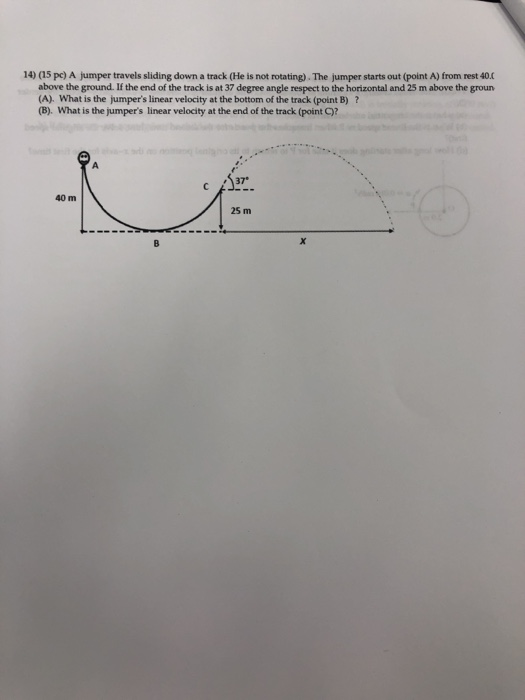

10 (15 pc) A jumper travels sliding down a track (He is not rotating). The jumper...
