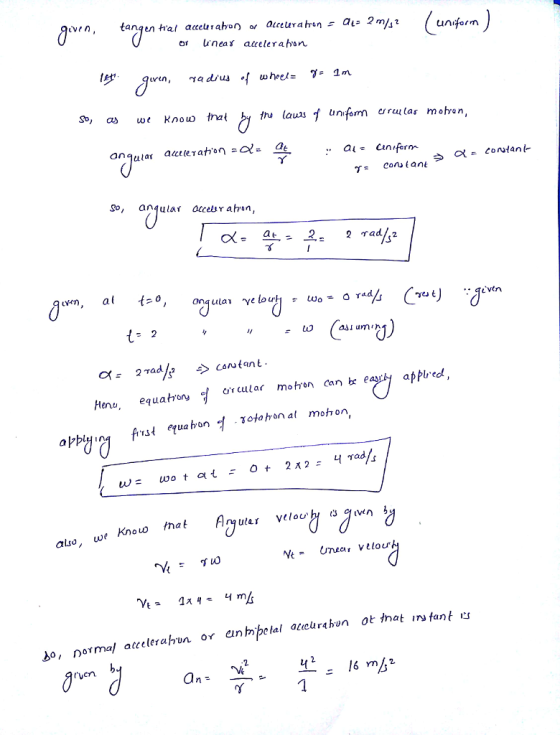

3. A wheel 1 meter in radius accelerates uniformly at 2 /s2 from rest. Determine the...
A fly wheel with radius 0.300 m starts from rest and accelerates with a constant angular acceleration of 0.600 rad/s2. For a point on the rim of the flying wheel, what are the magnitudes of the tangential, radial, and resultant accelerations and velocities after 2.00 seconds?
A Fly wheel with radius 0.300 m starts from rest and accelerates with a constant angular acceleration of 0.600 rad/s2. For a point on the rim of the flying wheel, what are the magnitudes of the tangential, radial, and resultant accelerations and velocities after 2.00 seconds?
2. A wheel of radius 15 cm accelerates uniformly from 100. rpm to 300. rpm in 8.0 sec. If the wheel is rolling without slipping, how far does the wheel roll in the 8.0 seconds? What is the linear acceleration of the axle of the wheel. What is the total acceleration of the top of the wheel when the wheel is rotating at 100. rpm?
A wheel 1 m in radius starts rotating from rest with a constant angular acceleration of 4 rad/s2 At t = 2 s find: a) the angular speed of the wheel; b) the tangential speed of the wheel at the rim; c) the centripetal and tangential acceleration of the wheel at the rim; d) the angular displacement.
A 0.8 m diameter wheel accelerates uniformly from 100 rpm to 160 rpm im 10 seconds. determind (a) angular acceleration (b) the number of turns it rotates in this time (c) the angular velocity of the wheel 2.0 seconds after it has started accelerating (d) the centripetal acceleration at this moment A 0.8-m-diameter wheel accelerates uniformly from 100 rpm to 160 rpm in 10 seconds. Determine (a) its angular acceleration, (b) the number of turns it rotates in this time,...
A potter's wheel moves uniformly from rest to an angular speed of 0.22 rev/s in 30.0 s. A potter's wheel moves uniformly from rest to an angular speed of 0.22 rev/s in 30.0 s. (a) Find its angular acceleration in radians per second per second. rad/s2 (b) Would doubling the angular acceleration during the given period have doubled final angular speed? Yes No
17.) A motorcycle accelerates uniformly from rest and reaches a linear speed of 21.6 m/s in a time of 9.72 s. The radius of each tire is 0.298 m. What is the magnitude of the angular acceleration of each tire? rad/s2
A wheel (radius = 0.20 m) starts from rest and rotates with a constant angular acceleration of 2.0 rad/s2. At the instant when the angular velocity is equal to 1.2 rad/s, what is the magnitude of the total linear acceleration (in m/s2) of a point on the rim of the wheel? 0.29 0.4 0.49 0.69
answer 1 2 and 3 001 10.0 points A car accelerates uniformly from rest and reaches a speed of 17.4 m/s in 14.1 s. The diameter of a tire is 85.4 cm Find the number of revolutions the tire makes during this motion, assuming no slip- ping. Answer in units of rev. 002 10.0 points A figure skater begins spinning counterclock- wise at an angular speed of 4.5 π rad/s. Dur- ing a 4.6 s interval, she slowly pulls her...
Chapter 8-Part 2 A large grinding wheel in the shape of a solid cylinder of radius 0.33 meter is free to rotate on a frictionless, vertical axle. A constant tangential force of 250 N applied to its edge causes the wheel to have an angular acceleration of 0,94 rad/s2. (a) What is the torque being applied to the wheel? (b) What is the moment of inertia of the wheel? ANS: (a) 82.5 Nm; (b) 87.8 kg-m2 A 2,000 kg Ferris...
