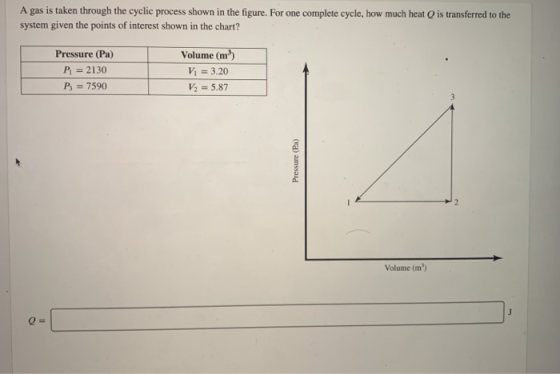

A gas is taken through the cyclic process shown in the figure. For one complete cycle,...

Question

Question

science physics

Answer 1

Answer #1

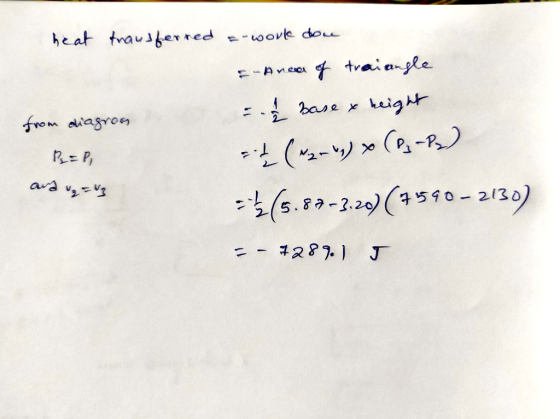

heat trausferred a work done E-A new of traiangle from diagron = base x height B = P, st ( 42 - 1) x (P3-P2) = (5.82-3:20) (7

Answer 2

Similar Homework Help Questions

A gas is taken through the cyclic process shown in the figure below. For one complete...

A gas is taken through the cyclic process shown in the figure below. For one complete cycle how much heat is transferred to the system given the points of interest shown below? Pressure (Pa) Volume (m3) P 3.44 x10 P3- 9.27 x103 V2-7.35 Number Volume (cubi Pressure (Pa)
A gas is taken through the cyclic process shown in the figure below. For one complete...

A gas is taken through the cyclic process shown in the figure below. For one complete cycle how much heat is transferred to the system given the points of interest shown below? Pressure (Pa Volume (m) P 3.44 x10 P3 = 927-103 | 203 V2 6.98 Number 0 12971.75 Volume (cub Pressure (Pa)
A gas is taken through the cyclic process shown in the figure below. For one complete cycle how much heat is transferred to the system given the points of interest shown below?

A gas is taken through the cyclic process shown in the figure below. For one complete cycle how much heat is transferred to the system given the points of interest shown below?

A sample of an ideal gas is taken through the cyclic process abca shown in the...

A sample of an ideal gas is taken through the cyclic process abca shown in the figure. The scale of the vertical axis is set by pb = 9.27 kPa and pac = 4.25 kPa. At point a, T = 198 K. (a) How many moles of gas are in the sample? What are (b) the temperature of the gas at point b, (c) the temperature of the gas at point c, and (d) the net energy added to the...
A gas is taken through the cyclic process described in the figure. (The x axis is marked in increments of 2 m3)

A gas is taken through the cyclic process described in the figure. (The x axis is marked in increments of 2 m3) (a) Find the net energy transferred to the system by heat during one complete cycle. b) If the cycle is reversed-that is, the process follows the path ACBA-what is the net energy input per cycle by heat.
One mole of an ideal monatomic gas is taken through the reversible cycle shown in the figure Volu...

One mole of an ideal monatomic gas is taken through the reversible cycle shown in the figure Volume Process B-C is an adiabatic expansion with PB-13.0 atm and V-4.00x103 m3. The volume at State C is 9.00Vg. Process A-B occurs at constant volume, and Process C A occurs at constant pressure. What is the energy added to the gas as heat for the cycle? Submit Answer Tries 0/10 What is the energy leaving the gas as heat? Submit Answer Tries...

Chapter 19, Problem 013 sample o an ideal gas is taken through the cyclic process abca...

Chapter 19, Problem 013 sample o an ideal gas is taken through the cyclic process abca shown in the figure. The scale of the vertical a s is set byp 8.59 Pa and 4.3 Ra Atonta (a) How many moles of gas are in the sample? What are (b) the temperature of the gas at point b, (c) the temperature of the gas at point c, and (d) the net energy added to the gas as heat during the cycle?...
A sample of nitrogen gas undergoes the cyclic thermodynamic process shown in the figure. Which of...

A sample of nitrogen gas undergoes the cyclic thermodynamic process shown in the figure. Which of the following gives the net heat transferred to the system in one complete cycle 1+2+31? the scale in the graph is given by P3 = 8000 Pa and V3 = 0.04 m. P (Pa) 4 P₃ 3 2. V (m3) V3 Select one a. 2560) O b.-1280) O C-640) d. 640) e. 1280)
Ideal Gas Process Problem natomic ideal gas is run through the cycle shown starting in state...

Ideal Gas Process Problem natomic ideal gas is run through the cycle shown starting in state A. The temperature of the gas in state A 300 K. The cycle happens within a sealed chamber outfitted with a piston as necessary. P (Pa) A 5.00 x 105 + The Herring Cycle 1.00 x 105 + 14300k 2.00 6.00 The cycle is composed of three processes, A B, B C, and C - A. 1) For each individual process... (a) (b) Name...
