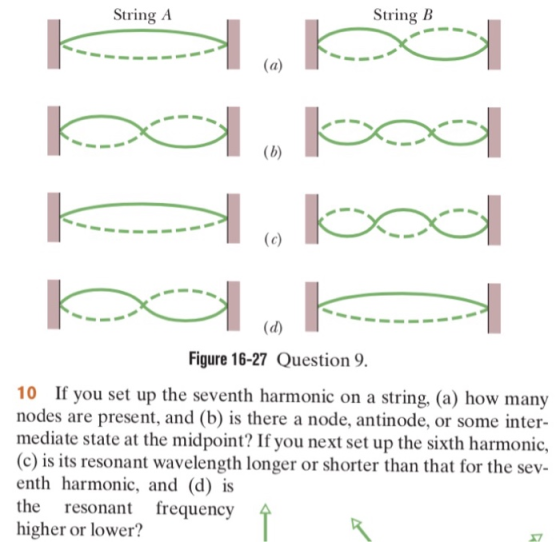

String A String B Figure 16-27 Question 9. 10 If you set up the seventh harmonic...

Question

Question

science physics

Answer 1

Answer #1

(a) 6 in between & two end points which are fixed for all

(b) There will be a antinode at midpoint

(c) Wavelength will be longer

(d) Resonance frequency is lower

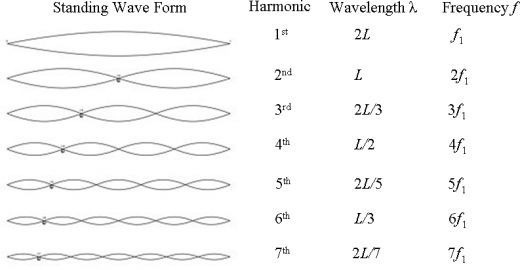

Standing Wave Form Harmonic Wavelength λ Frequency/ 1st 21 2nd rd L3 th L/2 5f 2L/5 L/3 217 6th th

If don't get anything let me know and thumbs up.

Answer 2

Similar Homework Help Questions

String B String A Figure 16-27 Question 9. 10 If you set up the seventh harmonic...

String B String A Figure 16-27 Question 9. 10 If you set up the seventh harmonic on a string. (a) how many nodes are present, and (b) is there a node, antinode, or some inter- mediate state at the midpoint? If you next set up the sixth harmonic, (c) is its resonant wavelength longer or shorter than that for the sev- enth harmonic, and (d) is the resonant frequency higher or lower?
Questions: 1. Explain how you can raise the pitch of a note on a guitar by altering the string’s (a) length, (b) tension, or (c) thickness or mass. Be very specific about what you would do to raise th...

Questions: 1. Explain how you can raise the pitch of a note on a guitar by altering the string’s (a) length, (b) tension, or (c) thickness or mass. Be very specific about what you would do to raise the pitch. 2. If the fundamental frequency of a guitar string is 250 Hz, what is the frequency of the second harmonic? Of the third harmonic? Explain. 3. Consider a vibrating guitar string. The loudest harmonic is the fundamental, but many higher...
