Question

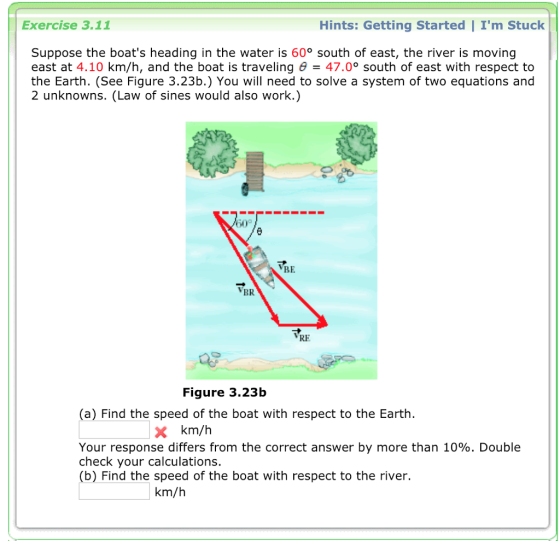

Exercise 3.11 Hints: Getting Started | Im Stuck Suppose the boats heading in the water is 60° south of east, the river is moving east at 4.10 km/h, and the boat is traveling 47.0° south of east with respect to the Earth. (See Figure 3.23b.) You will need to solve a system of two equations and 2 unknowns. (Law of sines would also work.) 0 VBR VRE Figure 3.23b (a) Find the speed of the boat with respect to the Earth. X km/h Your response differs from the correct answer by more than 10%. Double check your calculations. (b) Find the speed of the boat with respect to the river. km/h

0 0
Add a comment Improve this question Transcribed image text

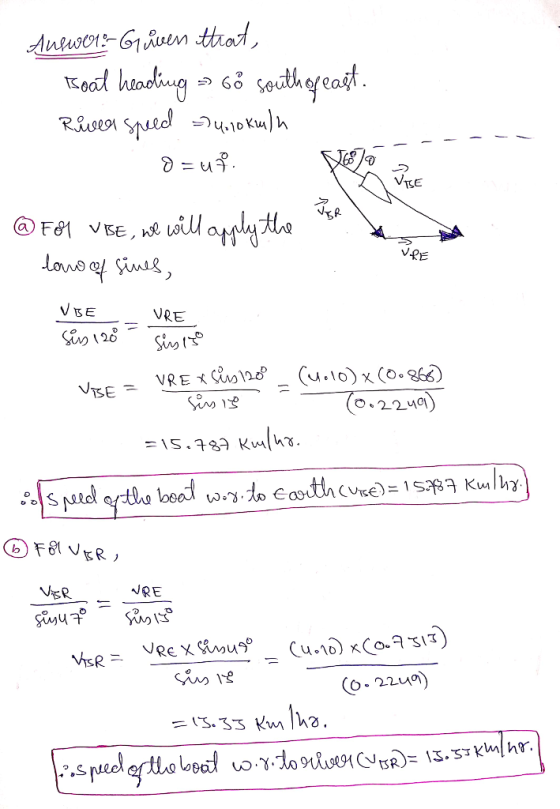

Answer #1

TSE @re1 vs€,以しsul a..A, HA VfE VRE 0 o. 22 NRE O-2249 = (3.33 Km/ha. γ.to odsOY CVrR): 13.3This may helps you. Hit like if you are satisfied with my answer.

Thank you .!?

Add a comment
