Block A of mass mA is moving horizontally with speed Va along a frictionless surface

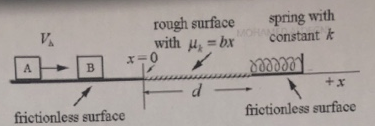

Block A of mass mA is moving horizontally with speed Va along a frictionless surface. It collides elastically with block B of mass mB that is initially at rest. After the collision block B enters a rough surface at x =0 with a coefficient of kinetic friction that increases linearly with distance μ(x) = bx for 0 ≤ x ≤ d, where b is a positive constant. At x=d block B collides with an unstretched spring with spring constant k on a frictionless surface. The downward gravitational acceleration has magnitude g.
What is the distance the spring is compressed when block B first comes to rest? Express your answer in terms of Va, mA, mB, b, d, g, and k.
STEPS should be used to solve this problem:
1) Find speeds of both blocks after collision (note collision is elastic as given).
2) Find the work done by friction on block B.
3) Find the speed of block B at the end of the rough surface.
4) Find the distance compressed in spring.
Homework Answers
Add Answer to:
Block A of mass mA is moving horizontally with speed Va along a frictionless surface
Block A of mass, mA = 1.7 kg is shot from a spring device of spring...
Block A of mass, mA = 1.7 kg is shot from a spring device of spring constant, k = 700 N/m along a frictionless horizontal surface. The initial compression of the spring is 0.300 m. The shot makes the block rise to another horizontal level at a height h= 1m above the first. On this horizontal it collides with another stationary block B of mass mB = 3.5 kg. The blocks stick together and encounter a rough surface. The blocks...
On a frictionless surface. a block of mass M moving at speed v collides elastically with...
On a frictionless surface. a block of mass M moving at speed v collides elastically with another block of the same mass that is initially at rest. After the collision, the first block moves at an angle θ to its initial direction and has a speed U/2. The second block's speed after the collision is 3 4 (B) 2 2 U) (E) ut cose
A block with mass m = 14 kg rests on a frictionless table and is accelerated...
A block with mass m = 14 kg rests on a frictionless table and is accelerated by a spring with spring constant k = 4174 N/m after being compressed a distance x1 = 0.512 m from the spring’s unstretched length. The floor is frictionless except for a rough patch a distance d = 2.7 m long. For this rough path, the coefficient of friction is μk = 0.44. 1) How much work is done by the spring as it accelerates...
A block with mass m = 16 kg rests on a frictionless table and is accelerated...
A block with mass m = 16 kg rests on a frictionless table and is accelerated by a spring with spring constant k = 4850 N/m after being compressed a distance x1 = 0.51 m from the spring’s unstretched length. The floor is frictionless except for a rough patch a distance d = 2.5 m long. For this rough path, the coefficient of friction is μk = 0.45. How much work is done by the spring as it accelerates the...
A block with mass m = 16 kg rests on a frictionless table and is accelerated...
A block with mass m = 16 kg rests on a frictionless table and is accelerated by a spring with spring constant k = 5072 N/m after being compressed a distance x1 = 0.568 m from the spring’s unstretched length. The floor is frictionless except for a rough patch a distance d = 2.8 m long. For this rough path, the coefficient of friction is μk = 0.48. 1) How much work is done by the spring as it accelerates...
A block having a mass of 0.800 kg is given an initial velocity vA= 1.25 m/s...
A block having a mass of 0.800 kg is given an initial velocity vA= 1.25 m/s to the right. It collides head-on with a horizontal spring of negligible mass and force constant k = 50 N/m, resting on the table. (a)Assuming the surface to be frictionless, calculate the maximum compression of the spring after the collision. Assume that the block gets stuck to the spring. (b)Suppose a constant force of kinetic friction acts between the block and the surface, with...
Block 2 (mass 1.10 kg) is at rest on a frictionless surface and touching the end...
Block 2 (mass 1.10 kg) is at rest on a frictionless surface and touching the end of an unstretched spring of spring constant 144 N/m. The other end of the spring is fixed to a wall. Block 1 (mass 1.70 kg), traveling at speed v1 = 3.60 m/s, collides with block 2, and the two blocks stick together. When the blocks momentarily stop, by what distance is the spring compressed? Answer 0.305 m My question is how did they solve...
A block of mass m1 = 1.0 kg initially moving to the right with a speed...
A block of mass m1 = 1.0 kg initially moving to the right with a speed of 3.2 m/s on a frictionless, horizontal track collides with a spring attached to a second block of mass m2 = 3.4 kg initially moving to the left with a speed of 2.6 m/s as shown in figure (a). The spring constant is 530N/m. (A) Find the velocities of the two blocks after the collision. (B) During the collision, at the instant block 1...
A mass m = 10 kg rests on a frictionless table and accelerated from rest by...
A mass m = 10 kg rests on a frictionless table and accelerated from rest by a spring with spring constant k = 4490 N/m. The floor is frictionless except for a rough patch. For this rough patch, the coefficient of the kinetic friction is µk = 0.5. The mass leaves the spring with speed v = 2.8 m/s. Use work and energy to answer the following questions: (a) How much work is done by the spring as it accelerates...
Part A Block A has a mass mA and is attached to a spring having a...
Part A Block A has a mass mA and is attached to a spring having a stiffness k and unstretched length lo- Another block B, having a mass mB, is pressed against A so that the spring deforms a distance d. The coefficient of kinetic friction between the blocks and the ground is μk. (Figure 1) Assuming separation does occur what is the distance the blocks slide on the surface before they separate? Express your answer in terms of some...
On a frictionless surface. a block of mass M moving at speed v collides elastically with another block of the same mass that is initially at rest. After the collision, the first block moves at an angle θ to its initial direction and has a speed U/2. The second block's speed after the collision is 3 4 (B) 2 2 U) (E) ut cose
Part A Block A has a mass mA and is attached to a spring having a stiffness k and unstretched length lo- Another block B, having a mass mB, is pressed against A so that the spring deforms a distance d. The coefficient of kinetic friction between the blocks and the ground is μk. (Figure 1) Assuming separation does occur what is the distance the blocks slide on the surface before they separate? Express your answer in terms of some...
