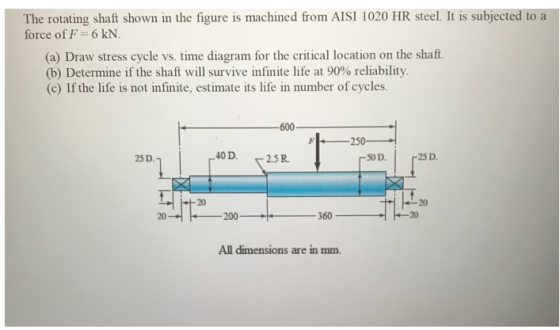

The rotating shaft shown in the figure is machined from AISI 1020 HR steel. It is subjected to a force of F= 6 kN. (a) Draw stress cycle vs. time diagram for the critical location on the shaft. (b) Determine if the shaft will survive infinite life at 90% reliability. (c) If the life is not infinite, estimate its life in number of cycles.

We need at least 10 more requests to produce the answer.
0 / 10 have requested this problem solution
The more requests, the faster the answer.
Problem 4: The rotating shaft shown in the figure is machined from AISI 1020 CD steel. It is subjected to a force of F=6 kN. Find the maximum factor of safety for fatigue based on infinite life. If the life is not infinite, estimate the number of cycles. Be sure to check for yielding. All dimensions are in mm.
The rotating shaft in the glven figure is machined from AISI 1020 CD steel. It is subjected to a force of F= 7 kN. Find the minimum factor of safety for fatigue based on Infinite life. Be sure to check for yielding. What are the values of the theoretical stress-concentration factor, the notch sensitivity. and the fatigue stress concentration-factor? The value of the theoretical stress-concentration factor is _______ The value of the notch sensitivity is _______ The value of the fatigue stress-concentration factor is...
6-16 The rotating shaft shown in the figure is máchined from AISI 1020 CD steel. It is subjected o a force of F = 6 kN. Find the minimum factor of safety for fatigue based on infinite life. If the life is not infinite, estimate the number of cycles. Be sure to check for yielding. 500 25 D 35 D 50 D 3 R Problem 6-16 mensions in millimeters 25 D. 20 20 20 20 280
The rotating shaft in the glven figure is machined from AISI 1020 CD steel. It is subjected to a force of F=7 kN. Find the minimum factor of safety for fatigue based on Infinite life. Be sure to check for yielding. 500 175 23 D. 35 D. -3R. 50 D -23 D. 20 -180 What are the values of the theoretical stress-concentration factor, the notch sensitivity, and the fatigue stress concentration-factor? The value of the theoretical stress-concentration factor is The...
A rotating circular shaft, machined from AISI 1095 Q&T
steel, is
subjected to a torque that varies from a value of 200 N.m to 400
N.m
and to a fluctuating bending moment that varies from a value of
-100
N.m to 300 N.m. Also an axial tensile force of 5 kN acts on the
element.
The torque and the bending moments have their peak values at
the
same time and their frequencies are same. Find the factor of
safety of...
The rotating shaft shown in the figure is machined and ground from a steel with a yield strength of 373 MPaand an ultimate strength of 430 MPa. It is subjected to a force of F 6.4 kN and operates at about 300 C. Find the minimum factor of safety for fatigue based on infinite life if a reliability of99% is desired. All dimensions in the figure are in mm. 25 D r50 D 25 D -35 D I R 20...
PROBLEM 4: Calculate the diameter D of the rotating shaft, supported on each end by a radial bearing, to obtain infinite life with a safety factor of 1.2. The shaft is machined from AISI 1040 HR steel, and is subject to a bending moment caused by a static force F-4 KN. The radius r is 0.05D. The length of the shaft L 0.5 m. The shaft rotates at in 1 ㄧㄒㄨ D. In 1000 RPM. Assume full notch sensitivity q...
Problem 1: A component shown in the figure is subjected to cyclic force P. Find the state of the stress at point A in the component. Show stress in an element Pmax-10000 lb 2" 1.75 Pmin-1000 lb Problem 1 If the component is machined from AISI 1040 HR steel. What is the safety factor against fatigue failure for infinite life. How much load can be increased (Pma10000K and Pin-1000K) to have the component survived at least 104 cycles? Find value...
answer with steps please
4. Figure below shows a rotating shaft simply supported in ball bearings at A and D and loaded by a nonrotating force F of 6.8 kN. The shaft is made AISI/SAE cold drawn 1050 steel, estimate the life of the part. 550 C 400 B - 6.8 EN 75 -100 - 250 --- -125 Stress amplitude (MPa) 10 10 10 10 10 Fatigue life cycles) 10
1. Consider the stepped (note change in diameter at bearing B) shaft with gear and belt drive as shown below. The shaft is rotating and can be modeled as simply supported at locations A and B 2000N (+ z direction) 2000N (- z direction) 600N 10 mm 100 mm rsimm 150 mm Diameter 400 mm 15 mm 150 mm B 75 mm Fp (- z direction) a. Determine the force on the belt, Fp b. Identify the location on the...
