Three charges are arranged in a line along the x-axis, q1 = −5e at x = 0, q2 = e at x = a and q3 = e at x = 2a (where e is the fundamental charge).

(a) Sketch a plot of the electric potential as a function of x, labelling the important points. Assume V (x → ∞) = 0.

(b) Find an expression for the electric potential at position x0, somewhere along the x-axis.

(c) What is the electrical potential energy of a proton sitting at x = a/2 (due to the three charges).

science physics

Answer 1

Answer #1

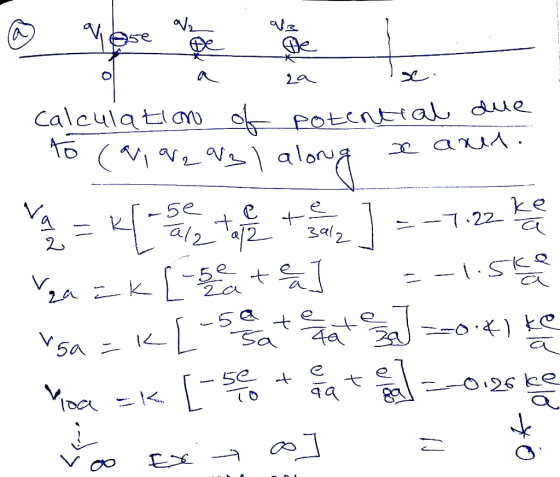

s e 1-22 1Z_

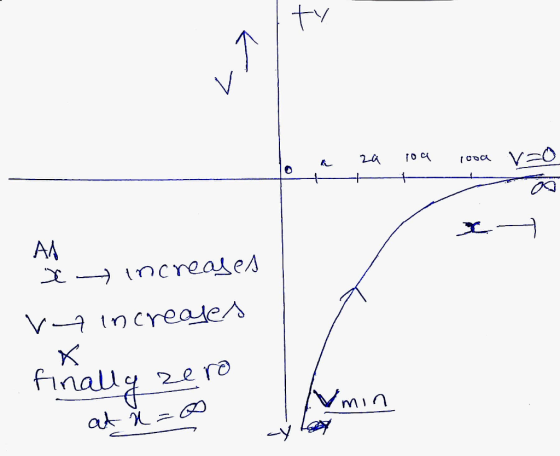

ty Ka min

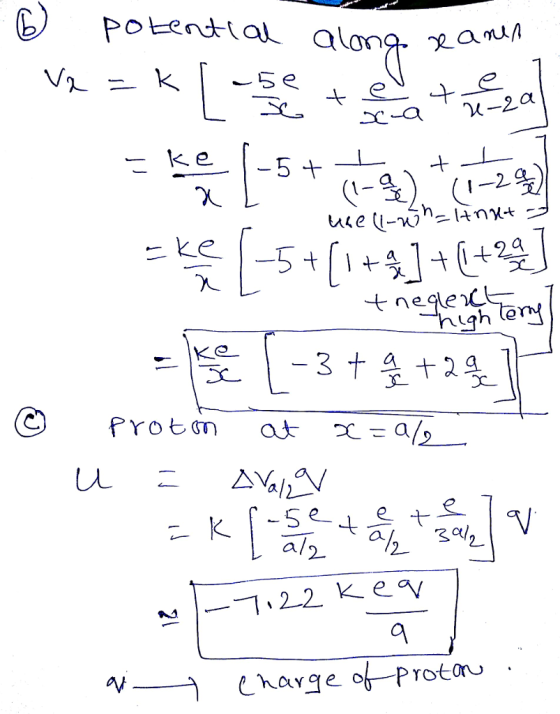

ー k巳 1-2 g. tnee high (eri Pro

Answer 2
