Question

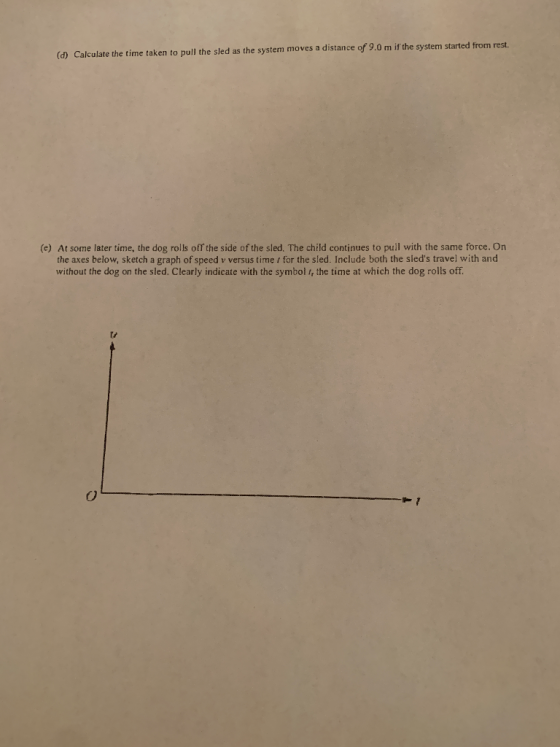

B200761. (15 points) A chilt pulls a 25 kg sled containing a 3.0 kg dog along a straight path on a horizontal surface. He exe(d) Calculate the time taken to pull the sled as the system moves a distance of 9.0 m if the system started from rest. (e) At

science   physics
0 0
Add a comment Improve this question Transcribed image text
Next > < Previous
Sort answers by oldest

Homework Answers

Answer #1

m= 8 kg + 25 kg = 33kg a NrF sino = ng N=ng - Flino =(33)9.8) - (8 5) Sui 30 -> (280.9 Newton t Normal force) (c) az Fuet I c

0 0
Add a comment
Know the answer?
Add Answer to:
B200761. (15 points) A chilt pulls a 25 kg sled containing a 3.0 kg dog along...
