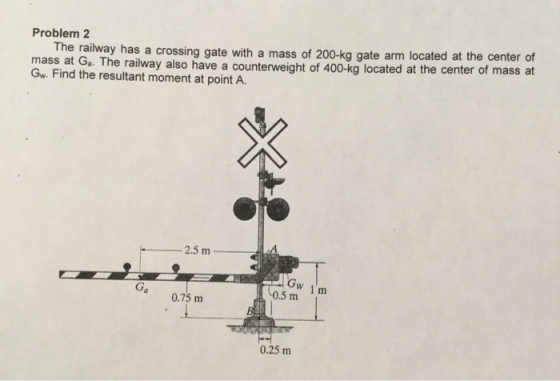

Problem 2 The railway has a crossing gate with a mass of 200-kg gate arm located...

Question

Question

science physics

Answer 1

Answer #1

Foom uooto

Answer 2

Similar Homework Help Questions

Q.1) The crane arm is pinned at point A and has a mass of 200 kg...

Q.1) The crane arm is pinned at point A and has a mass of 200 kg whose weight is acting at a point 2 m to the right of point A. The mass of the block is 800 kg. If the crane is in equilibrium, find (a) the magnitude of the force exerted on the arm by the hydraulic cylinder BC, (b) the support reactions at point A. OOOO 2.4 m - 1.8 m - 1.2 m -7 m
4. In the figure shown, rod AB (M-2 kg, L-2 m, center of mass C located 1 m above ground) is kept on a rough surface (H...

4. In the figure shown, rod AB (M-2 kg, L-2 m, center of mass C located 1 m above ground) is kept on a rough surface (H-0.5). A horizontal force F = 10 N is applied to the rod at point D, and distance CD-L/3 m. This horizontal force F causes the rod to rotate about B. Find initial linear acceleration of the top-most point A of the rod. Figure inset shows moment of inertia of a rod. Ignore air...
A 1.0 kg mass is located at the origin of the (?, ?) plane, another 1.0...

A 1.0 kg mass is located at the origin of the (?, ?) plane, another 1.0 kg mass is located at the point (0.12, 0), and a 2.0 kg mass is located at the point (0.06, 0.08), where the (?, ?) coordinates are given in meters. The three masses are fixed relative to each other by massless rods. a) Find the moment of inertia of this object about an object perpendicular to the (?, ?) plane & passing through the...

The union in O and in A are vertical hinges that support forces in the three dimensions and moment around the axes x, y and z. The mass of the arm OA is 2kg, the mass of arm AB is 2.5 kg and that of...

The union in O and in A are vertical hinges that support forces in the three dimensions and moment around the axes x, y and z. The mass of the arm OA is 2kg, the mass of arm AB is 2.5 kg and that of tray C is 4 kg. The center of mass of each member is in its geometric center. Determine the reactions in O for the configuration shown 30P 0.6 m 450 2 0.8 m 0.2 m...
The trailer with its load has a mass of 150 kg and a center of mass...

The trailer with its load has a mass of 150 kg and a center of mass at G. If it is subjected to a horizontal force of P = 600N, determine the normal force on the pair of wheels in Newtons) at B. The wheel are free to roll without friction and have a negligible mass. P=600 N 1.25 m 0.25 m 0.25 m 0.5 m B -1.25 m 0.75 m
The trailer with its load has a mass of 150 kg and a center of mass...

The trailer with its load has a mass of 150 kg and a center of mass at G. If it is subjected to a horizontal force of P = 600N, determine the normal force on the pair of wheels in Newtons) at B. The wheel are free to roll without friction and have a negligible mass. P=600 N 1.25 m 0.25 m 0.25 m 0.5 m B -1.25 m 0.75 m

Gate AB in Figure A2 is a homogeneous mass of 180 kg, 1.2 m wide into...

Gate AB in Figure A2 is a homogeneous mass of 180 kg, 1.2 m wide into the paper, hinged at A, and resting on a smooth bottom at B. All fluids are at 200 C. a) If the moment about the centre of gravity of a submerged plate at an angle e is defined as FYCP = Then show that this moment is given by [5marks] [3 marks b) Draw a diagram with all forces acting on the gate AB...
Question 2 The trailer with its load has a mass of 200 kg and a center...

Question 2 The trailer with its load has a mass of 200 kg and a center of mass at G. If it is subjected to a horizontal force of P 600 N. Consider that the wheels are free to roll and have negligible mass. m/s (A. 3 B.4 C. 8 D. 12) What is the acceleration of the trailer, a N (A 886 B. 736 C. 1,261 D. 1,110) Determine the reaction force at A Determine the reaction force at...
The trailer with its load has a mass of 150 kg and a center of mass...

The trailer with its load has a mass of 150 kg and a center of mass at G. If it is subjected to a horizontal force of P = 600N, determine the normal force on the pair of wheels (in Newtons) at A. The wheel are free to roll without friction and have a negligible mass. Please answer to four significant figures. Thank you a lot! :) The trailer with its load has a mass of 150 kg and a...

The arm and seat of the amusement-park ride have a mass of 1.7 Mg, with the...

The arm and seat of the amusement-park ride have a mass of 1.7 Mg, with the center of mass located at point G," The passenger seated at A has a mass of 125 kg . with the center of mass located at G2.(Figure 1) PartA If the arm is raised to a position where 150 and released from rest determine the speed of the passenger at the instant 0 0°. The arm has a radius of gyration of kG1 13...
