Homework Answers
Maximum static friction force that can act on B is
Where m is mass of block B.
Maximum acceleration of oscillating body =
If friction force on block B is sufficient enough to provide this acceleration then block does not slide.
( acceleration = force/mass)
(2π×2.5)2 × A = 0.49 × 9.8
A = 0.01946 m
In two significant figures,
A = 0.019 m = 1.9 cm
Add Answer to:

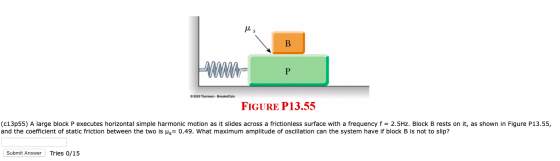

В P 2003 Thomson-Brooks/Cole FIGURE P13.55 (c13p55) A large block P executes horizontal simple harmonic motion...
A large block P attached to a light spring executes horizontal, simple harmonic motion as it...
A large block P attached to a light spring executes horizontal, simple harmonic motion as it slides across a frictionless surface with a frequency f = 1.60 Hz. Block B rests on it as shown in the figure, and the coefficient of static friction between the two is Mu_s = 0.510. What maximum amplitude of oscillation can the system have if block B is not to slip cm
2003 Thomson - Brooks/Cole m2 FIGURE P6.48 (c6p48) Consider a frictionless track as shown in Figure...
2003 Thomson - Brooks/Cole m2 FIGURE P6.48 (c6p48) Consider a frictionless track as shown in Figure P6.48. A block of mass m1 = 5.0 kg is released from A, at a height h = 13.0 m. It makes a head-on elastic collision at B with a block of mass m2 = 11.0 kg that is initially at rest. Calculate the maximum height to which mi rises after the collision. Submit Answer Tries 0/8 This discussion is closed. Send Feedback
A 4.8 kg block attached to a spring executes simple harmonic motion on a frictionless horizontal...
A 4.8 kg block attached to a spring executes simple harmonic motion on a frictionless horizontal surface.The amplitude is 0.90 m, the maximum acceleration is 2.9 m/s^2. The force constant of the spring is closest to?
A 200 g block is attached to a horizontal spring and executes simple harmonic motion with...
A 200 g block is attached to a horizontal spring and executes simple harmonic motion with a period of 0.250 s. If the total energy of the system is 2.00 J (a) Find the force constant of the spring N/m (b) Find the amplitude of the motion.
A 240 g block is attached to a horizontal spring and executes simple harmonic motion with...
A 240 g block is attached to a horizontal spring and executes simple harmonic motion with a period of 0.250 s. If the total energy of the system is 1.00 J. (a) Find the force constant of the spring N/m (b) Find the amplitude of the motion. m
A 230 g block is attached to a horizontal spring and executes simple harmonic motion with...
A 230 g block is attached to a horizontal spring and executes simple harmonic motion with a period of 0.200 s. If the total energy of the system is 3.50 J. (a) Find the force constant of the spring. (b) Find the amplitude of the motion. Your response differs from the correct answer by more than 10%. Double check your calculations.
A 4.8 kg block attached to a spring executes simple harmonic motion on a frictionless horizontal...
A 4.8 kg block attached to a spring executes simple harmonic motion on a frictionless horizontal surface. At time t = 0 s, the block has a displacement of -0.90 m, a velocity of -0.80 m/s, and an acceleration of +2.9 m/s2. The force constant of the spring is closest to: Please write clearly and legibly!
A block is on a horizontal surface (a shake table) that is moving back and forth...
A block is on a horizontal surface (a shake table) that is moving back and forth horizontally with simple harmonic motion of frequency 9.4 Hz. The coefficient of static friction between block and surface is 0.10. How great can the amplitude of the SHM be if the block is not to slip along the surface?
A 250 g block is attached to a horizontal spring and executes simple harmonic motion with...
A 250 g block is attached to a horizontal spring and executes simple harmonic motion with a period of 0.350 s. If the total energy of the system is 1.00. (a) Find the force constant of the spring 157.75 Your response differs from the correct answer by more than 10%. Double check your calculations. Nm (b) Find the amplitude of the motion. 0.112 Your response differs from the correct answer by more than 10%. Double check your calculations. m Need...
A block with mass M = 6.0 kg rests on a frictionless table and is attached by a horizontal spring (k = 130 N/m) to a all.
A block with mass M = 6.0 kg rests on a frictionless table and is attached by a horizontal spring (k = 130 N/m) to a all. A second block, of mass m = 1.25 kg, rests on top of M. The coefficient of static friction between the two blocks is 0.30. What is the maximum possible amplitude of oscillation such that m will not slip off M?
A large block P attached to a light spring executes horizontal, simple harmonic motion as it slides across a frictionless surface with a frequency f = 1.60 Hz. Block B rests on it as shown in the figure, and the coefficient of static friction between the two is Mu_s = 0.510. What maximum amplitude of oscillation can the system have if block B is not to slip cm
2003 Thomson - Brooks/Cole m2 FIGURE P6.48 (c6p48) Consider a frictionless track as shown in Figure P6.48. A block of mass m1 = 5.0 kg is released from A, at a height h = 13.0 m. It makes a head-on elastic collision at B with a block of mass m2 = 11.0 kg that is initially at rest. Calculate the maximum height to which mi rises after the collision. Submit Answer Tries 0/8 This discussion is closed. Send Feedback
A 200 g block is attached to a horizontal spring and executes simple harmonic motion with a period of 0.250 s. If the total energy of the system is 2.00 J (a) Find the force constant of the spring N/m (b) Find the amplitude of the motion.
A 230 g block is attached to a horizontal spring and executes simple harmonic motion with a period of 0.200 s. If the total energy of the system is 3.50 J. (a) Find the force constant of the spring. (b) Find the amplitude of the motion. Your response differs from the correct answer by more than 10%. Double check your calculations.
A 250 g block is attached to a horizontal spring and executes simple harmonic motion with a period of 0.350 s. If the total energy of the system is 1.00. (a) Find the force constant of the spring 157.75 Your response differs from the correct answer by more than 10%. Double check your calculations. Nm (b) Find the amplitude of the motion. 0.112 Your response differs from the correct answer by more than 10%. Double check your calculations. m Need...
