The first step in the grand unification of the laws of physics is the unification of...
The first step in the grand unification of the laws of physics
is the unification of the
electric force and the magnetic force into the force of
electromagnetism. Derive an

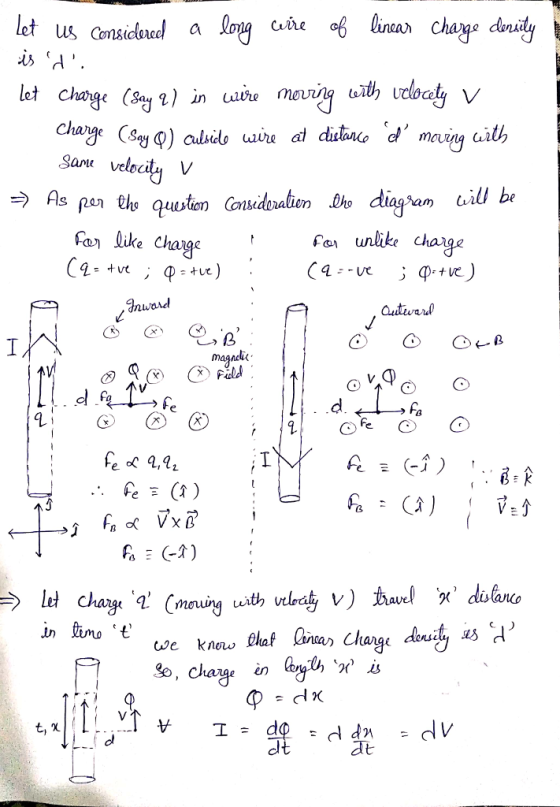

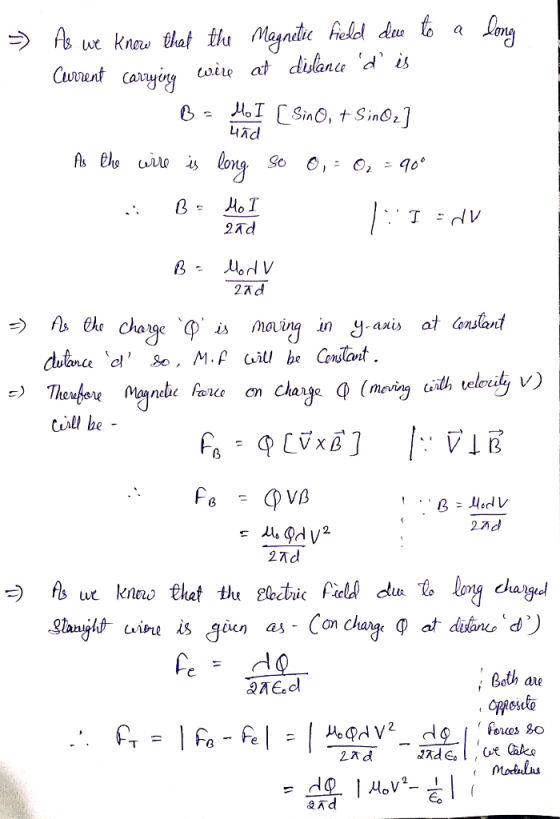

expression for the electric and magnetic forces on a charge moving
past a wire carrying
a current. The speed of the moving charge is the same as the speed
of the charges in
the wire. Consider both the reference frame where the charges are
all moving, and the
one moving with the charges so that the charges are at rest.
Homework Answers
