Question

14. Consider a crystal with planar spacing 3.2 Å. What order of magnitude of energies would one need for (a) electrons, (b) helium nuclei (mass-4 proton mass) to observe up to 3 interference maxima?

0 0
Add a comment Improve this question Transcribed image text
Answer #1

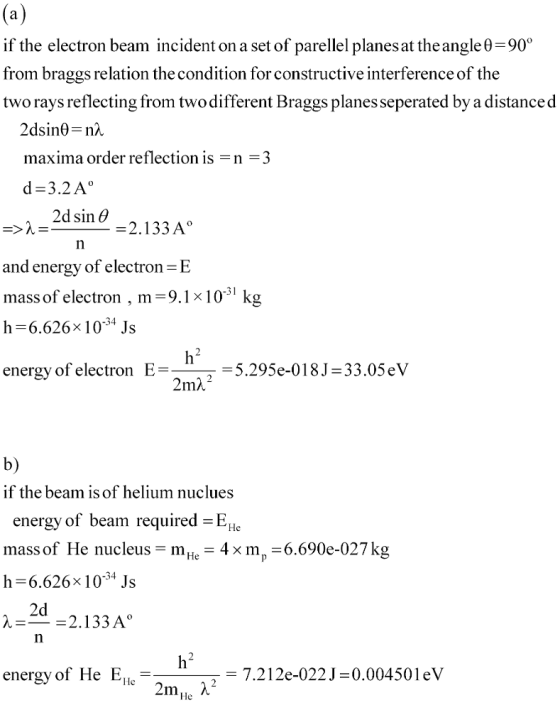

if the electron beam incident on a set of parellel planes at the angle θ-900 from braggs relation the condition for construct

Add a comment
