Three current carrying wires, each of length 1.25 m, are placed in the following locations: I1...

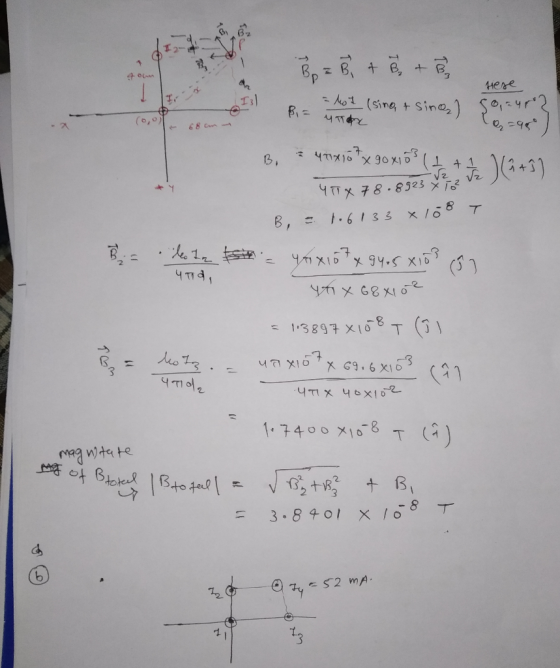

Three current carrying wires, each of length 1.25 m, are placed in the following locations: I1 of -90.0 mA at the origin; I2 of +94.5 mA at (0, 40.0 cm); and I3 of +69.6 mA at (68.0 cm, 0). [Note: “+” indicates the current is coming out of the page, while “-“ indicates the current is pointing into the page.]
- Determine the total magnetic field at “P” located at (68.0 cm, 40.0 cm).

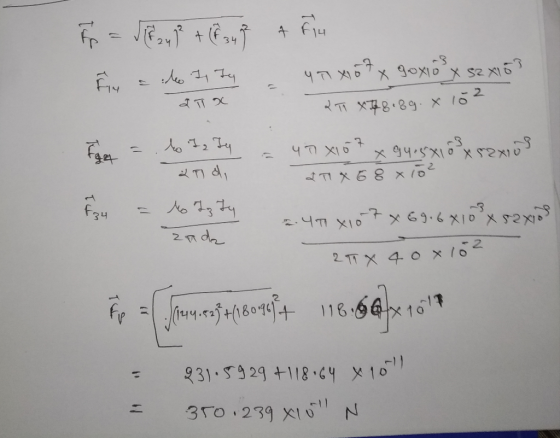

- A fourth current, I4 of +52.0 mA is placed at P. Find the total force on I4.
Please be as detailed as possible when explaining each step.
Homework Answers
Add Answer to:
Three current carrying wires, each of length 1.25 m, are
placed in the following locations: I1...
Three very long current carrying wires are placed at the corners of an equilateral triangle as...
Three very long current carrying wires are placed at the corners
of an equilateral triangle as shown below. Wire 1 and wire 2 are
fixed at their locations well above the ground using some anchors.
Wire 3 with linear mass density 40 g/m is being levitated
magnetically above the ground due to the other two wires. (a) Find
the direction of current in the wire 3 to achieve this. (b) Find
the magnitude of the current in wire 3
(I3)...
The figure shows three long, parallel, current-carrying wires. The current directions are indicated for currents I1...
The figure shows three long, parallel, current-carrying wires.
The current directions are indicated for currents
I1 and I3. The three
currents have equal magnitudes. In the space provided below write
the direction of the currentI2 ( it
could be INTO the page or OUT of the page, it is your choice!).
Then, accordingly to your selection of
I2 , write the direction of the net
force acting on the wire I3 due to the
presence of the other two wires....
In the image, three very close parallel wires each carrying a current. The magnitude of the...
In the image, three very close parallel wires each carrying a current. The magnitude of the current in the first wire I1 = 10 (A) and second wire 12 = 14 (A) and their directions are shown with black arrows in the image. The value of current I, and its direction are unknown. The magnetic field B due to all three wires at point P which is 4 (m) away from wires is 4 X10? (T) with the direction of...
Problem 5 In the image, three very close parallel wires each carrying a current. The magnitude...
Problem 5 In the image, three very close parallel wires each carrying a current. The magnitude of the current in the first wire 11 = 10 (A) and second wire I3 = 14 (A) and their directions are shown with black arrows in the image. The value of current I, and its direction are unknown. The magnetic field B due to all three wires at point P which is 4 (m) away from wires is 4 X10-7 (T) with the...
1. Consider three parallel current carrying wires that are oriented perpendicular to the plane of this...
1. Consider three parallel current carrying wires that are oriented perpendicular to the plane of this page. Each wire is placed at a comer of a square as shown below. The current magnitude and direction for each wire is given below. (20 pts) 1, -2.73 A Id-3.30 cm 1, -2.73 A iz = 2.73 A a) Find the magnitude and direction (relative to the +x axis) of the magnetic field from all three currents at point P. (9 pts) i,...
Three infinitely long parallel wires carrying equal currents of 2.5 A are placed at each corner...
Three infinitely long parallel wires carrying equal currents of 2.5 A are placed at each corner of an equilateral triangle whose side is 3.0 cm. Two currents are directed into the page and the third current is out of the page. a)(5 points) What is the magnitude and direction of the magnetic field at the center of the triangle? b)(5 points) What is the magnitude and direction of the magnetic force on a 1.5 A current in a 2.0 m...
Three very long current carrying wires are placed at the corners
of an equilateral triangle as shown below. Wire 1 and wire 2 are
fixed at their locations well above the ground using some anchors.
Wire 3 with linear mass density 40 g/m is being levitated
magnetically above the ground due to the other two wires. (a) Find
the direction of current in the wire 3 to achieve this. (b) Find
the magnitude of the current in wire 3
(I3)...
The figure shows three long, parallel, current-carrying wires.
The current directions are indicated for currents
I1 and I3. The three
currents have equal magnitudes. In the space provided below write
the direction of the currentI2 ( it
could be INTO the page or OUT of the page, it is your choice!).
Then, accordingly to your selection of
I2 , write the direction of the net
force acting on the wire I3 due to the
presence of the other two wires....
In the image, three very close parallel wires each carrying a current. The magnitude of the current in the first wire I1 = 10 (A) and second wire 12 = 14 (A) and their directions are shown with black arrows in the image. The value of current I, and its direction are unknown. The magnetic field B due to all three wires at point P which is 4 (m) away from wires is 4 X10? (T) with the direction of...
Problem 5 In the image, three very close parallel wires each carrying a current. The magnitude of the current in the first wire 11 = 10 (A) and second wire I3 = 14 (A) and their directions are shown with black arrows in the image. The value of current I, and its direction are unknown. The magnetic field B due to all three wires at point P which is 4 (m) away from wires is 4 X10-7 (T) with the...
1. Consider three parallel current carrying wires that are oriented perpendicular to the plane of this page. Each wire is placed at a comer of a square as shown below. The current magnitude and direction for each wire is given below. (20 pts) 1, -2.73 A Id-3.30 cm 1, -2.73 A iz = 2.73 A a) Find the magnitude and direction (relative to the +x axis) of the magnetic field from all three currents at point P. (9 pts) i,...
