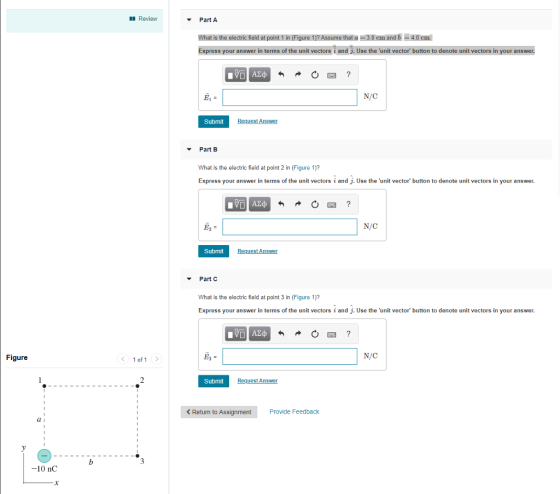

Review Part A What is the electric field at point 1 in (Figure 1)? Assume that a30 cm and b 40 cm xpress your answer in terms of the unit vectors and . Use the 'unit vector' button to denote unit vectors in your answ N/C Submit Part B What is the electric field at point 2 in (Figure 1)? Express your answer in terms of the unit vectors i and j. Use the unit vector' button to denote unit vectors in your answer N/C Submit Part C What is the electric field at point 3 in (Figure 1)? Express your answer in terms of the unit vectors i and j. Use the unit vector button to denote unit vectors in your answer Figure 1 of 1> N/C Submit uest Ans Return to Assignment Provide Feedback -10 nC

Answer 1

Concept used:- here we use the field due to a charge at a point and find the component of the field along the axes in the Cartesian coordinate system, ***************************************************************************************************
This concludes the answers. If there is any mistake, let me know immediately and I will fix it....

Concept used: - here we use the field due to a charge at a point and find the component of the field along the axes in the Cartesian coordinate system, A) E_1 Vector = Vertical-bar -10nc Vertical-bar /4piE_0 a^2 (-j^hat) = 0 i^hat - 1.0 times 10^5 j^hat N/C r = squareroot a^2 + b^2 B) tan theta = a/b or theta = 36.87 degree E_2 Vector = Vertical-bar -10nc Vertical-bar /4 pi E_0 r^2(-cos theta i^hat - sin theta j^hat) = -28800i^hat - 21600j^hat N/C C) E_3 Vector = Vertical-bar -10nc Vertical-bar /4 pi E_0 b^2 (-i^hat) = -56250 i^hat + 0j^hat N/C
