A stationary ball is let go from the top of a 75 cm long
diagonal table. It rolls down and off the edge, free falls and hits
the ground.

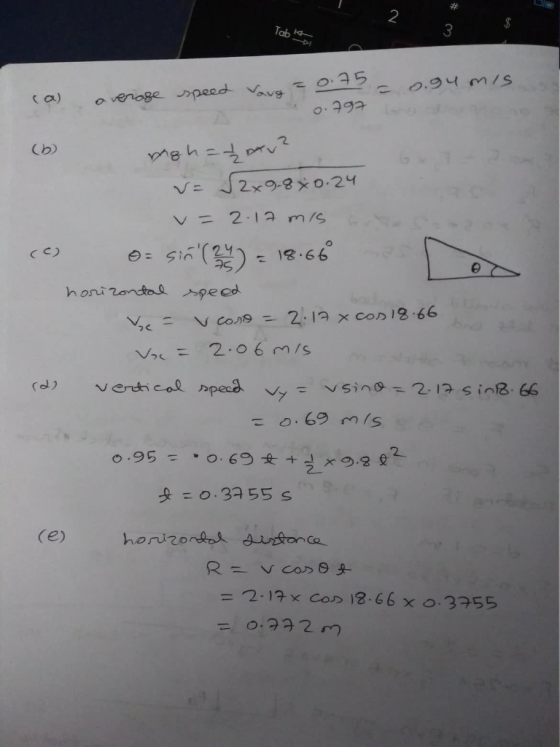

a) If it takes the ball 0,797 seconds to roll down the table
before it goes off the edge, what is it's average speed?
b) What is the balls speed when it goes off the edge? Formula for
even acceleration is Vm = (V0+V)/2
c) What is the horizontal speed of the ball and what is the

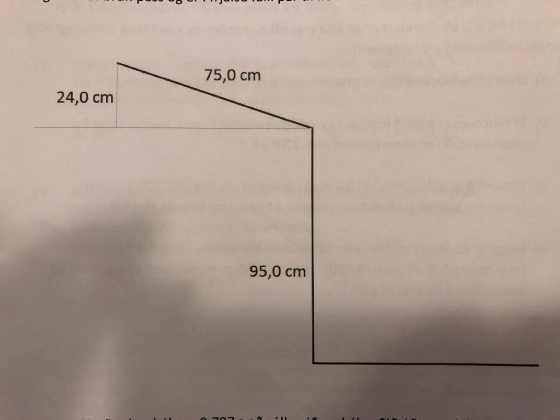

horizontal speed of the ball when it falls of the edge? The height
difference is shown in the picture (24cm)
d) For how long is the ball falling, if the floor is 95cm from the
edge?
e) How far from the edge horizontally, does the ball land on the
floor?
