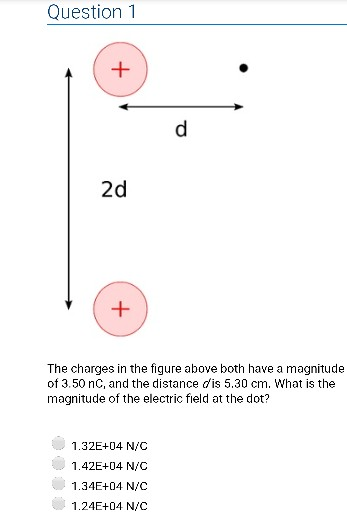

Question 1 2d The charges in the figure above both have a magnitude of 3.50 nC, and the distance dis 5.30 cm. What is the magnitude of the electric field at the dot? 1.32E+04 N/C 1.42E+04 N/C 1.34E+04 N/C 1.24E+04 N/C

science   physics
0 0
Add a comment Improve this question Transcribed image text
Next > < Previous
Sort answers by oldest

Homework Answers

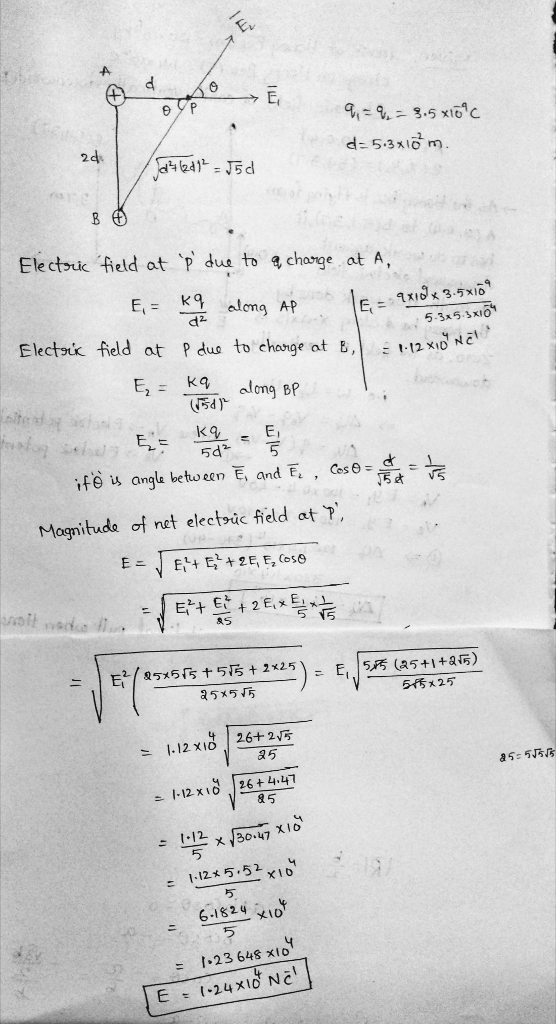

Answer #1

2d Electric -field at 、p due to charge at A, 3-5x16 5-3x5.XIO Electrik field at p duo to charge at E,| ะ -12nd メ1D N C E, K along BP 는 k오 = E, it@u angle between E, and E 1fe s angla beto een E, and , aso-.#k ะ net electsuc ield at agni 85 1.12 xi |26+2. 25 85 85 じ12 30.47 5 -12 5.52 <Io = 1.23648 xtot

0 0
Add a comment
