Consider (Figure 1). A.) What is the potential difference ΔVAB? Express your answer with the appropriate...

Question

Question

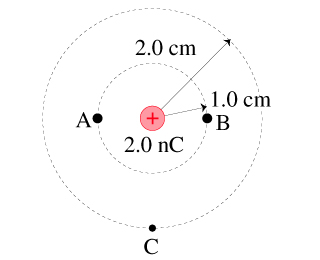

2.0 cm 2.0 nC Consider (Figure 1).

A.) What is the potential difference ΔVAB? Express your answer with the appropriate units.

B.) What is the potential difference ΔVBC? Express your answer with the appropriate units.

science physics

Answer 1

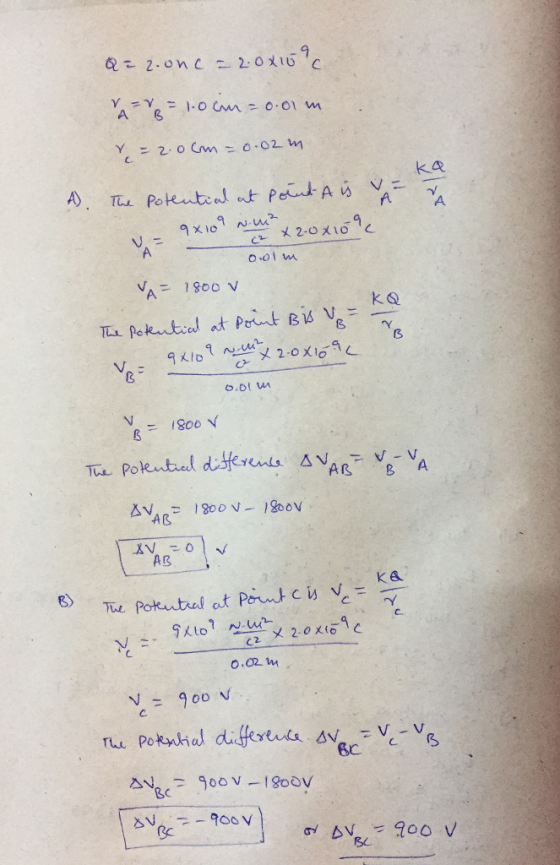

Answer #1

Answer 2
