Homework Answers
Add Answer to:

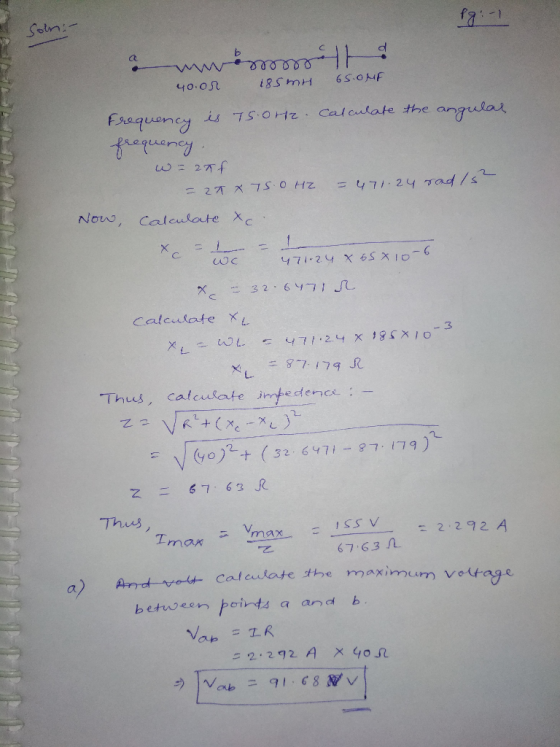

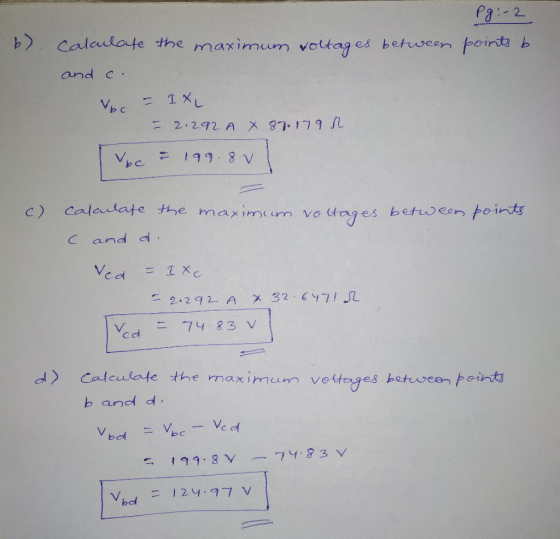

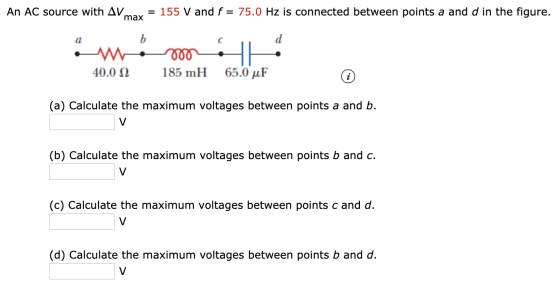

An AC source with AVmax = 155 V and f = 75.0 Hz is connected between...
Please help with the following question. 2. + -11 points SerPSE 10 32.5.P.016. An AC source...
Please help with the following question.
2. + -11 points SerPSE 10 32.5.P.016. An AC source with AVmax = 170 V and f = 55.0 Hz is connected between points a and d in the figure. 40.0 12 185 mH 65.0 uF (a) Calculate the maximum voltages between points a and b. (b) Calculate the maximum voltages between points b and c. v (c) Calculate the maximum voltages between points c and d. (d) Calculate the maximum voltages between points...
, An AC source with Δ max-150 V and fs 50.0 Hz is connected between points...
, An AC source with Δ max-150 V and fs 50.0 Hz is connected between points a and din Figure P33.24 40.0 Ω 185 miH 65.0 μF Figure P33.24problems 24 and 81. calculate the maximum voltages between (a) points a and (b) points band (c) points c and d, and
R3 An 14.0-mu F capacitor is connected across an AC source with V_max = 80.0 v...
R3
An 14.0-mu F capacitor is connected across an AC source with V_max = 80.0 v oscillating at 65.0 Hz. What is the maximum current in the capacitor? mA
An ac source of maximum voltage Vo = = 40 V is connected to a resistor...
An ac source of maximum voltage Vo = = 40 V is connected to a resistor R = 60 12, an inductor L = 0.5 H, and a capacitor C = 30 uF. Find the average power at 60 Hz. Select one: a. 35.3 W b. 70.6 W C. 0.13 W d. 3.53 W e. 7.06 W X
An ac source of maximum voltage V = 30 V is connected to a resistor R...
An ac source of maximum voltage V = 30 V is connected to a resistor R = 500, an inductor L = 0.6 H, and a capacitor C= 20 uF. Find the circuit's impedance at 120 Hz. Select one: O a. 521 o b. 389 O c. 20.88 d. 66.35 o e. 452.16
2. An AC power source with V 220 V and f60.0 Hz is connected in a...
2. An AC power source with V 220 V and f60.0 Hz is connected in a series RLC circuit. The resistance, R. inductance, L, and capacitance. C. of this circuit are, respectively. 46.0 12, 0.150 H. and 0.035 mF. Find each of the following quantities, (a) the inductive reactance, the capacitive reactance, (c) the impedance of the circuit (d) the maximum current through the circuit (based on the frequency given above) (e) the maximum potential difference across each circuit element...
A resistor, 50.0-mH inductor, and 100.0-uF capacitor are connected in series with a 50-Hz voltage source....
A resistor, 50.0-mH inductor, and 100.0-uF capacitor are connected in series with a 50-Hz voltage source. The maximum voltage through the circuit is 240 V. Calculate the power across the LCR circuit, if phase angle between the current and voltage is 60degrees.
A single loop series RLC circuit is connected to an 42 V ac voltage generator with...
A single loop series RLC circuit is connected to an 42
V ac voltage generator with a frequency of 60.0 hz. the resistance
is R= 270 , the Inductance is L = 300 mh, and the capacitance is C
= 21.5 uF. Wgen the generator emf is a maximum, what is the voltage
across (a) the generator (b) the resistance (c) the resistance and
(d) the inductance?
MER PRINTER VERSION BACK NEXT Chapter 31, Problem 093 A single-loop series RLC...
A series R-L-C circuit is connected to a 110 Hz ac source that has Vrms =...
A series R-L-C circuit is connected to a 110 Hz ac source that has Vrms = 80.0 V . The circuit has a resistance of 65.0 Ω and an impedance of 104 Ω at this frequency. What average power is delivered to the circuit by the source?
A resistor (R = 9.00 x 102.2), a capacitor (C = 0.250 uF), and an inductor...
A resistor (R = 9.00 x 102.2), a capacitor (C = 0.250 uF), and an inductor (L = 1.70 H) are connected in series across a 2.40 x 102-Hz AC source for which AVmax = 1.50 x 102 V. (a) Calculate the impedance of the circuit. Ο ΚΩ (b) Calculate the maximum current delivered by the source. (c) Calculate the phase angle between the current and voltage. (d) is the current leading or lagging behind the voltage? The current leads...
Please help with the following question.
2. + -11 points SerPSE 10 32.5.P.016. An AC source with AVmax = 170 V and f = 55.0 Hz is connected between points a and d in the figure. 40.0 12 185 mH 65.0 uF (a) Calculate the maximum voltages between points a and b. (b) Calculate the maximum voltages between points b and c. v (c) Calculate the maximum voltages between points c and d. (d) Calculate the maximum voltages between points...
, An AC source with Δ max-150 V and fs 50.0 Hz is connected between points a and din Figure P33.24 40.0 Ω 185 miH 65.0 μF Figure P33.24problems 24 and 81. calculate the maximum voltages between (a) points a and (b) points band (c) points c and d, and
R3
An 14.0-mu F capacitor is connected across an AC source with V_max = 80.0 v oscillating at 65.0 Hz. What is the maximum current in the capacitor? mA
An ac source of maximum voltage Vo = = 40 V is connected to a resistor R = 60 12, an inductor L = 0.5 H, and a capacitor C = 30 uF. Find the average power at 60 Hz. Select one: a. 35.3 W b. 70.6 W C. 0.13 W d. 3.53 W e. 7.06 W X
An ac source of maximum voltage V = 30 V is connected to a resistor R = 500, an inductor L = 0.6 H, and a capacitor C= 20 uF. Find the circuit's impedance at 120 Hz. Select one: O a. 521 o b. 389 O c. 20.88 d. 66.35 o e. 452.16
2. An AC power source with V 220 V and f60.0 Hz is connected in a series RLC circuit. The resistance, R. inductance, L, and capacitance. C. of this circuit are, respectively. 46.0 12, 0.150 H. and 0.035 mF. Find each of the following quantities, (a) the inductive reactance, the capacitive reactance, (c) the impedance of the circuit (d) the maximum current through the circuit (based on the frequency given above) (e) the maximum potential difference across each circuit element...
A single loop series RLC circuit is connected to an 42
V ac voltage generator with a frequency of 60.0 hz. the resistance
is R= 270 , the Inductance is L = 300 mh, and the capacitance is C
= 21.5 uF. Wgen the generator emf is a maximum, what is the voltage
across (a) the generator (b) the resistance (c) the resistance and
(d) the inductance?
MER PRINTER VERSION BACK NEXT Chapter 31, Problem 093 A single-loop series RLC...
A resistor (R = 9.00 x 102.2), a capacitor (C = 0.250 uF), and an inductor (L = 1.70 H) are connected in series across a 2.40 x 102-Hz AC source for which AVmax = 1.50 x 102 V. (a) Calculate the impedance of the circuit. Ο ΚΩ (b) Calculate the maximum current delivered by the source. (c) Calculate the phase angle between the current and voltage. (d) is the current leading or lagging behind the voltage? The current leads...
