In the circuit shown in the figure the voltage of the battery is 15.0 V, and...
In the circuit shown in the figure the voltage of the battery is
15.0 V, and the capacitors have the following capacitances:
C1 = 1.86 mF, C2 = 3.39 mF, C3 =
3.85 mF, C4 = 5.79 mF.
What is the equivalent capacitance of the four capacitors?

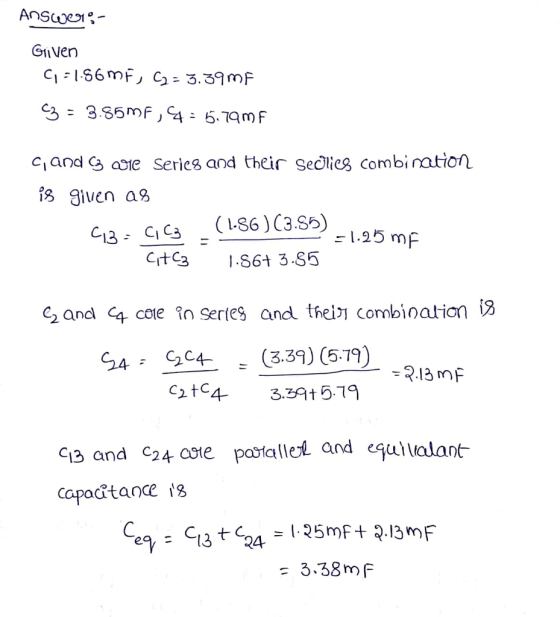

Homework Answers
Add Answer to:
In the circuit shown in the figure the voltage of the battery is
15.0 V, and...
In the circuit shown in the figure the voltage of the battery is 14.0 V, and...
In the circuit shown in the figure the voltage of the battery is 14.0 V, and the capacitors have the following capacitances: C1 = 1.37 m C2-2.91 mF, C3 3.43 mF, C44.03 mF C2 4 What is the equivalent capacitance of the four capacitors? Submit Answer Tries 0/99
The figure shows a circuit with an ideal battery and set of capacitors. The battery has...
The figure shows a circuit with an ideal battery and set of
capacitors. The battery has an emf
=12 V. The capacitors have capacitances C1 = C2 = C3 = C4 = 6
nF.
(a) What is the equivalent capacitance of the entire network of
capacitors?
(b) What is the electrical energy stored in the capacitor with
capacitance C2?
We were unable to transcribe this imageProblem 6 C. The figure shows a circuit with an ideal battery and set of...
Four capacitors are arranged in the circuit shown in the figure. The capacitors have the values...
Four capacitors are arranged in the circuit shown in the figure.
The capacitors have the values C1 = 27.5 μF, C2 = 45.5 μF, C3 =
50.5 μF, C4 = 40.5 μF, and the power supply is at voltage V = 16.5
V. What is the equivalent capacitance of the circuit?
Four capacitors are arranged in the circuit shown in the figure. The capacitors have the values C1-27.5 μF, C2 = 45.5 μF, C3 = 50.5 F, C.-40.5 and the...
Q22 (Capacitors) The figure below shows a 15.0 V battery and four uncharged capacitors of capacitances...
Q22 (Capacitors)
The figure below shows a 15.0 V battery and four uncharged
capacitors of capacitances C1 = 8.00
μF, C2 = 4.00 μF,
C3 = 6.00 μF, and
C4 = 3.00 μF.
If only switch S1 is closed, what is the
charge on each capacitor?
(a) C1
__________ μC
(b) C2
__________ μC
(c) C3
__________μC
(d) C4
__________ μC
If both switches are closed, what is the charge on each
capacitor?
(e) C1
__________μC
(f ) C2
__________μC
(g) C3
__________ μC
(h) C4
__________ μC...
Consider the circuit as shown. The power supply has a voltage V = 34 V and...
Consider the circuit as shown. The power supply has a voltage V
= 34 V and the capacitors have capacitance C1 =
C2 = C3 = C4 = 80 µF and
C5 = 208 µF.
(a) What is the equivalent capacitance of this circuit?
(b) What is the charge on capacitor C3?
(c) What is the voltage on capacitor C3?
(d) What is the charge on capacitor C5?
(e) What is the voltage on capacitor C5?
A circuit is constructed with five capacitors and a battery as shown. The values for the...
A circuit is constructed with five capacitors and a battery as
shown. The values for the capacitors are: C1 =
C5 = 4.2 μF, C2 = 1 μF, C3 = 5.8
μF, and C4 = 4.4 μF. The battery voltage is V = 12
V.
1)
What is Cab, the equivalent capacitance between
points a and b?μF
2)
What is Cac, the equivalent capacitance between
points a and c?
3)
What is Q5, the charge on capacitor
C5?μC
4)
What...
Vbat = C4 C5 Consider the circuit shown above. The battery provides a voltage of Vbat...
Vbat = C4 C5 Consider the circuit shown above. The battery provides a voltage of Vbat = 10 Volts. All capacitors have the same capacitance (C1 = C2 = C3 = C4 = C5 = 30 uF). Find the equivalent capacitance of all 5 capacitors (Ceg). Find the charge on each capacitor (Q1, Q2, Q3, Q4, Q5). Find the total energy stored in all 5 capacitors.
The circuit shown in the figure contains four capacitors whose values are as follows: C1=6 F,...
The circuit shown in the figure contains four capacitors whose
values are as follows: C1=6 F, C2=2 F, and C3=C4=4 F. The battery
voltage V0=5 V. When the circuit is connected what will be charge
on C3?
C4 C1 C2 C3 G V.
The circuit in the figure below contains a 90.0 V battery and four capacitors. In the...
The circuit in the figure below contains a 90.0 V battery and four capacitors. In the top parallel branch, there are two capacitors, one with a capacitance of C1 = 3.00 µF and another with a capacitance of 6.00 µF. In the bottom parallel branch, there are two more capacitors, one with a capacitance of 2.00 µF and another with a capacitance of C2 = 6.00 µF. A circuit consists of a 90.0 V battery and four capacitors. The wire...
The circuit shown in the figure contains four capacitors whose values are as follows: C1=6 F,...
The circuit shown in the figure contains four capacitors whose values are as follows: C1=6 F, C2=2 F, and C3=C4=4 F. The battery voltage Vo=5 V. When the circuit is connected what will be voltage across C4? C4 C1 C2 C3 V 2.5 V 4.0 V 2.0 V 3.0 V
In the circuit shown in the figure the voltage of the battery is 14.0 V, and the capacitors have the following capacitances: C1 = 1.37 m C2-2.91 mF, C3 3.43 mF, C44.03 mF C2 4 What is the equivalent capacitance of the four capacitors? Submit Answer Tries 0/99
The figure shows a circuit with an ideal battery and set of
capacitors. The battery has an emf
=12 V. The capacitors have capacitances C1 = C2 = C3 = C4 = 6
nF.
(a) What is the equivalent capacitance of the entire network of
capacitors?
(b) What is the electrical energy stored in the capacitor with
capacitance C2?
We were unable to transcribe this imageProblem 6 C. The figure shows a circuit with an ideal battery and set of...
Four capacitors are arranged in the circuit shown in the figure.
The capacitors have the values C1 = 27.5 μF, C2 = 45.5 μF, C3 =
50.5 μF, C4 = 40.5 μF, and the power supply is at voltage V = 16.5
V. What is the equivalent capacitance of the circuit?
Four capacitors are arranged in the circuit shown in the figure. The capacitors have the values C1-27.5 μF, C2 = 45.5 μF, C3 = 50.5 F, C.-40.5 and the...
Q22 (Capacitors)
The figure below shows a 15.0 V battery and four uncharged
capacitors of capacitances C1 = 8.00
μF, C2 = 4.00 μF,
C3 = 6.00 μF, and
C4 = 3.00 μF.
If only switch S1 is closed, what is the
charge on each capacitor?
(a) C1
__________ μC
(b) C2
__________ μC
(c) C3
__________μC
(d) C4
__________ μC
If both switches are closed, what is the charge on each
capacitor?
(e) C1
__________μC
(f ) C2
__________μC
(g) C3
__________ μC
(h) C4
__________ μC...
Consider the circuit as shown. The power supply has a voltage V
= 34 V and the capacitors have capacitance C1 =
C2 = C3 = C4 = 80 µF and
C5 = 208 µF.
(a) What is the equivalent capacitance of this circuit?
(b) What is the charge on capacitor C3?
(c) What is the voltage on capacitor C3?
(d) What is the charge on capacitor C5?
(e) What is the voltage on capacitor C5?
A circuit is constructed with five capacitors and a battery as
shown. The values for the capacitors are: C1 =
C5 = 4.2 μF, C2 = 1 μF, C3 = 5.8
μF, and C4 = 4.4 μF. The battery voltage is V = 12
V.
1)
What is Cab, the equivalent capacitance between
points a and b?μF
2)
What is Cac, the equivalent capacitance between
points a and c?
3)
What is Q5, the charge on capacitor
C5?μC
4)
What...
Vbat = C4 C5 Consider the circuit shown above. The battery provides a voltage of Vbat = 10 Volts. All capacitors have the same capacitance (C1 = C2 = C3 = C4 = C5 = 30 uF). Find the equivalent capacitance of all 5 capacitors (Ceg). Find the charge on each capacitor (Q1, Q2, Q3, Q4, Q5). Find the total energy stored in all 5 capacitors.
The circuit shown in the figure contains four capacitors whose
values are as follows: C1=6 F, C2=2 F, and C3=C4=4 F. The battery
voltage V0=5 V. When the circuit is connected what will be charge
on C3?
C4 C1 C2 C3 G V.
The circuit shown in the figure contains four capacitors whose values are as follows: C1=6 F, C2=2 F, and C3=C4=4 F. The battery voltage Vo=5 V. When the circuit is connected what will be voltage across C4? C4 C1 C2 C3 V 2.5 V 4.0 V 2.0 V 3.0 V
