A flat circular mirror of radius 0.150 m is lying on the floor. Centered directly above...

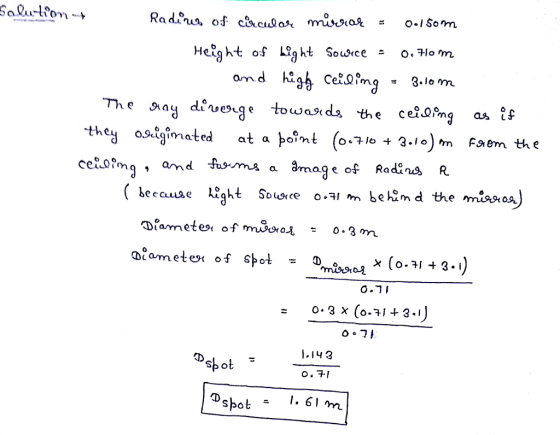

A flat circular mirror of radius 0.150 m is lying on the floor. Centered directly above the mirror, at a height of 0.710 m, is a small light source. Calculate the diameter of the bright circular spot formed on the 3.10 m high ceiling by the light reflected from the mirror.
Homework Answers
Add Answer to:
A flat circular mirror of radius 0.150 m is lying on the floor.
Centered directly above...
A light ray strikes a plane mirror lying flat on a horizontal floor, making...
Problem 25.1.01 A light ray strikes a plane mirror lying flat on a horizontal floor, making an angle of incidence of O; = 64.2º. After reflecting from the mirror, the ray makes a spot on a vertical wall. The wall is a horizontal distance d = 1.08 m from the point of reflection, as shown. How high from the floor is the spot on the wall? (Neglect the thickness of the mirror.)
Sunlight enters a room at an angle of 32 ? above the horizontal and reflects from...
Sunlight enters a room at an angle of 32 ? above the horizontal and reflects from a small mirror lying flat on the floor. The reflected light forms a spot on a wall that is 2.0 m behind the mirror, as shown in the figure(Figure 1) . If you now place a pencil under the edge of the mirror nearer the wall, tilting it upward by 5.0 ? , how much higher on the wall (?y) is the spot? ?y=_________cm
A student stands do = 2.4 m in front of a floor-to-ceiling mirror. Her eyes are...
A student stands do = 2.4 m in front of a floor-to-ceiling mirror. Her eyes are he = 1.54 m above the floor and she holds a flashlight at a distance hf = 0.75 m above the floor. Calculate the angle θ, in degrees, that the flashlight makes with respect to the floor if the light is reflected into her eyes
A student stands d0= 2.5 m in front of a floor-to-ceiling mirror. Her eyes are he=...
A student stands d0= 2.5 m in front of a floor-to-ceiling mirror. Her eyes are he= 1.6 m above the floor and she hold a flashlight at a distance hf =.85 m above the floor. -calculate the angle theta, in degrees, that the flashlight makes with respect to the floor if the light is reflected into her eyes.
A mirror hangs 1.75 m above the floor on a vertical wall. A ray of sunlight,...
A mirror hangs 1.75 m above the floor on a vertical wall. A ray of sunlight, reflected off the mirror, forms a spot on the floor 1.14 m from the wall. Later in the day, the spot has moved to a point 2.50 m from the wall. (a) What is the change in the angle of elevation of the Sun, between the two observations? ° (b) What time of day were these observations made? morning afternoon
please write neatly. will thumbs up A ball is dropped from rest 3.10 m directly above...
please write neatly. will thumbs up
A ball is dropped from rest 3.10 m directly above the vertex of a concave mirror having a radius of 1.80 m and lying in a horizontal plane. (a) Describe the motion of the ball's image in the mirror by filling in the table below. Object Distance, p Image Distance, 3.10 m m 0.900 m m Om m (b) At what two times do the ball and its image coincide? (List the lesser time...
A plano-convex glass lens of radius of curvature 3 m rests on an optically flat glass...
A plano-convex glass lens of radius of curvature 3 m rests on an optically flat glass plate. The arrangement is illuminated from above with monochromatic light of 569-nm wavelength. The indexes of refraction of the lens and plate are 1.6. Determine the radii of the first and second bright fringes in the reflected light. First bright fringe: m [5 points] 2 attempt(s) made (maximum allowed for credit = 5) [after that, multiply credit by 0.5 up to 10 attempts]...
(4%) Problem! 11: A 200 turn circular loop of radius 65 cmis lying flat on the...
(4%) Problem! 11: A 200 turn circular loop of radius 65 cmis lying flat on the ground with a curent of 95 A circulating counterclockwise (when viewed from above) in a location where the Earth's field is pointed north, but at an angle 45.0° below the horizontal and with a strength of 5.85 x 10 T What is the magnitude of the torque on the loop, in N m? Grade Summ Potential sin0 cotano asin0 Submissions Attempts rema (1% per...
Deep in the physics and astronomy basement storeroom, you find a very large concave spherical mirror from an old telescope. The mirror is 2 m across, and has a radius of curvature of 14.0 m. Because...
Deep in the physics and astronomy basement storeroom, you find a very large concave spherical mirror from an old telescope. The mirror is 2 m across, and has a radius of curvature of 14.0 m. Because this is just a small piece of such a large sphere, the angle of incidence for on-axis rays will always be below 5°, minimizing spherical aberration You try out the mirror for use as a full-length wall mirror. If you look at yourself in...
Compute the illumination at the edge of a circular table of radius of 1 m, if...
Compute the illumination at the edge of a circular table of radius of 1 m, if a 250 cd source is suspended 4 m above its center. 6.34 lux 3.56 lux 14.3 lux 15.2 lux A corridor is lighted by 4 lamps spaced 10 m apart and suspended at a height of 5 m above the center line of the floor. If each lamp gives 250 candela in all directions below the horizontal. The illumination at the point on the...
Problem 25.1.01 A light ray strikes a plane mirror lying flat on a horizontal floor, making an angle of incidence of O; = 64.2º. After reflecting from the mirror, the ray makes a spot on a vertical wall. The wall is a horizontal distance d = 1.08 m from the point of reflection, as shown. How high from the floor is the spot on the wall? (Neglect the thickness of the mirror.)
please write neatly. will thumbs up
A ball is dropped from rest 3.10 m directly above the vertex of a concave mirror having a radius of 1.80 m and lying in a horizontal plane. (a) Describe the motion of the ball's image in the mirror by filling in the table below. Object Distance, p Image Distance, 3.10 m m 0.900 m m Om m (b) At what two times do the ball and its image coincide? (List the lesser time...
(4%) Problem! 11: A 200 turn circular loop of radius 65 cmis lying flat on the ground with a curent of 95 A circulating counterclockwise (when viewed from above) in a location where the Earth's field is pointed north, but at an angle 45.0° below the horizontal and with a strength of 5.85 x 10 T What is the magnitude of the torque on the loop, in N m? Grade Summ Potential sin0 cotano asin0 Submissions Attempts rema (1% per...
Deep in the physics and astronomy basement storeroom, you find a very large concave spherical mirror from an old telescope. The mirror is 2 m across, and has a radius of curvature of 14.0 m. Because this is just a small piece of such a large sphere, the angle of incidence for on-axis rays will always be below 5°, minimizing spherical aberration You try out the mirror for use as a full-length wall mirror. If you look at yourself in...
