Homework Answers

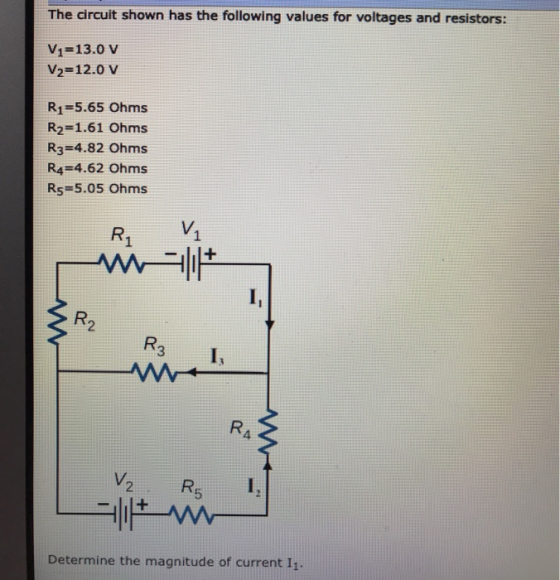

Using KVL in two loops,
V1 - R3*I3 - (R1+R2)*i1 = 0 or 13-4.82i3 - 5.65i1 - 1.61i1 = 0
V2 - R5*i2 - R4*i2 - R3*i3 = 0 or 12 - 5.05*i2 - 4.62i2 - 4.82i3 = 0
and by KCL, i1+i2-i3 = 0
solving the three equations and three unknowns, i2 = 0.54 , i3= 1.40 and i1= 0.86
i1 = 0.86 A answer
