In the following circuit, C1=9 F, C3=9/2 F and C4=9/2 F. Equivanent Capacitace is given 0.599...

Question

Question

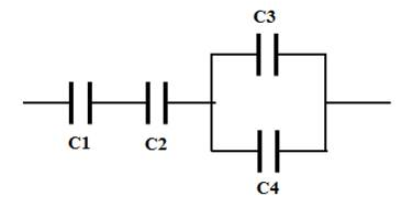

In the following circuit, C1=9 F, C3=9/2 F and C4=9/2 F. Equivanent Capacitace is given 0.599 F. What is C2 in F?

HHH c1 C2 L

science physics

Answer 1

Answer #1

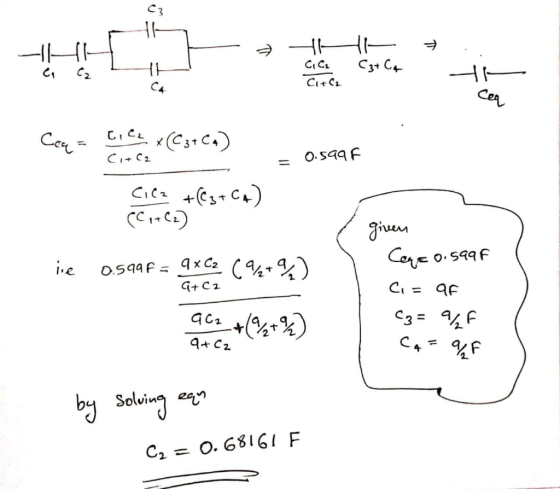

HH ? cic Czt Co to CI+C2 Ceq = Cila x (C3+ (4) 0.599 Cil2 +(C₂+ CA) C1+C2) le 0.599F= 9x C2 ( 9% + 9/4) given Cape 0.599F Ci=
