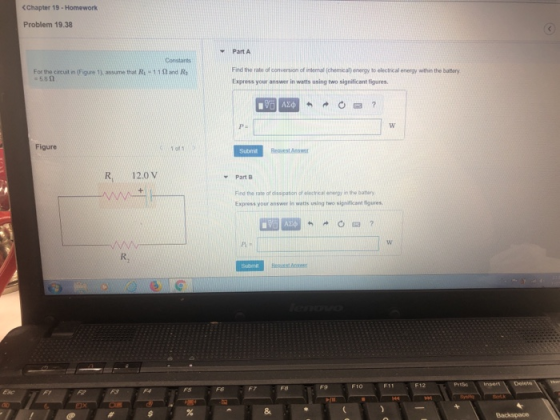

CChapter 19-Homework Problem 19.38 PartA For the circuit in (Figure 1) assume that Rs -11and Rs...

Question

Question

science physics

Answer 1

Answer #1

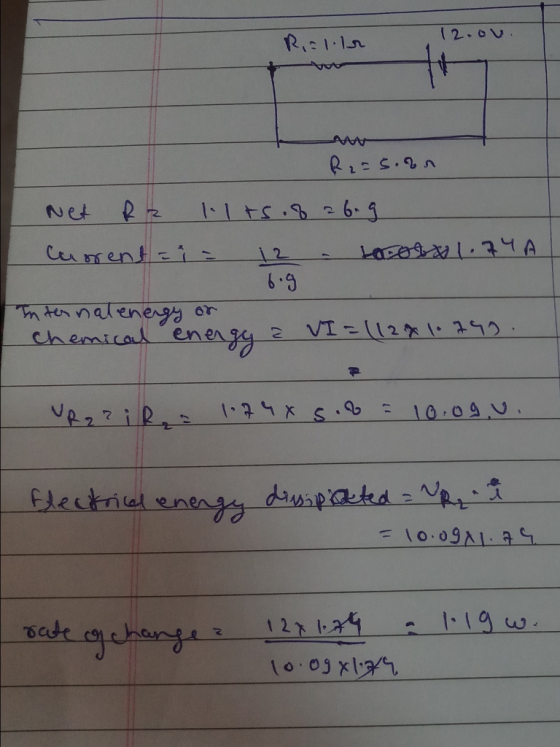

chemical ene

Answer 2

Similar Homework Help Questions

Problem 21.61 Review PartA Consider the circuit shown in the figure(Figure 1). Suppose the four resistors...

Problem 21.61 Review PartA Consider the circuit shown in the figure(Figure 1). Suppose the four resistors in this circuit have the values R-10 Ω , R 7.2 S2, R3 6.42, and R4 12 2, and that the emf of the battery is E = 18 V . Find the current through each resistor using the rules for series and parallel resistors. Express your answers using two significant figures separated by commas. I1, I2,I3, I4- Submit Request Answer Figure 1 of...
help with these three <Chapter 23 Problem 23.55 < 8 of 1 RE The circuit shown...

help with these three <Chapter 23 Problem 23.55 < 8 of 1 RE The circuit shown in the figure (Figure 1) consists of a 5.1- V battery, a 32-mH inductor, and four 58-22 resistors. Part A Find the characteristic time for this circuit. Express your answer using two significant figures. IV AX O ? Figure < 1 of 1 > Submit Request Answer pa0000 Part B What is the current supplied by this battery two characteristic time intervals after closing...
